Atlas Copco CA2500 User Manual

Machine description
4812160001_A.pdf2014-08-25

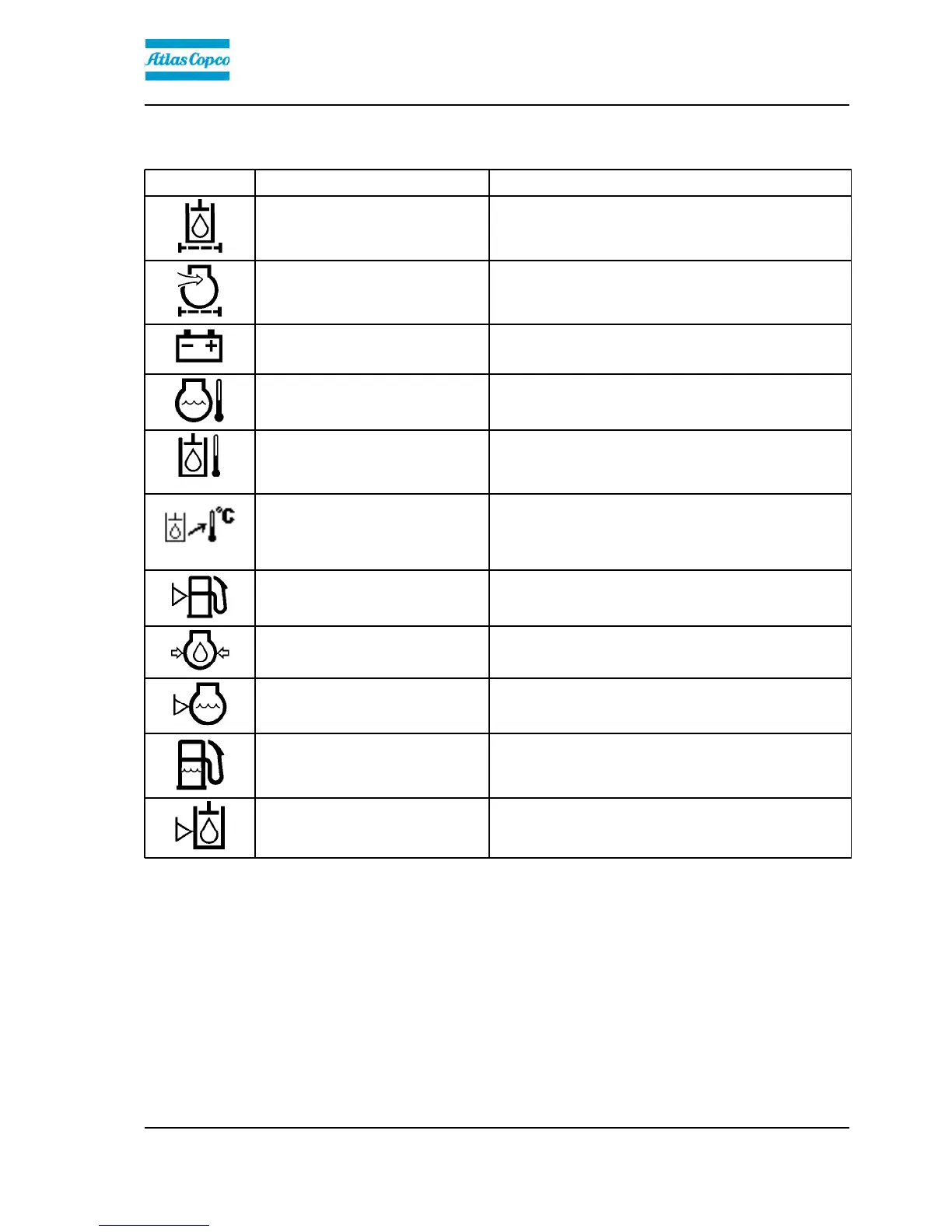

Machine alarm
Symbol Designation FunctionSymbol Designation Function
Warning symbol, hydraulic fluid filter If the symbol is shown when the diesel engine is running at
full speed, the hydraulic fluid filter must be changed.
Warning symbol, hydraulic fluid filter If the symbol is shown when the diesel engine is running at
full speed, the hydraulic fluid filter must be changed.
Warning symbol, clogged air filter If this symbol is shown when the engine is running at full
speed, the air filter must be checked/replaced.
Warning symbol, clogged air filter If this symbol is shown when the engine is running at full
speed, the air filter must be checked/replaced.
Warning symbol, battery charging If the symbol is shown when the engine is running, then
the alternator is not charging.
Switch off the engine and locate the fault.
Warning symbol, battery charging If the symbol is shown when the engine is running, then
the alternator is not charging.
Switch off the engine and locate the fault.
Warning symbol, engine temperature If this symbol is shown, the engine is too hot. Stop the
engine immediately and locate the fault.
Refer also to the engine manual.
Warning symbol, engine temperature If this symbol is shown, the engine is too hot. Stop the
engine immediately and locate the fault.
Refer also to the engine manual.
Warning symbol, hydraulic fluid
temperature
This symbol is shown when the hydraulic fluid is too hot.
Do not drive the roller; allow the fluid to cool by running the
engine on idle, and then locate the fault.
Warning symbol, hydraulic fluid
temperature
This symbol is shown when the hydraulic fluid is too hot.
Do not drive the roller; allow the fluid to cool by running the
engine on idle, and then locate the fault.
Warning symbol, hydraulic fluid
temperature (coldl)
This symbol is shown when the hydraulic fluid is too cold
for the use of vibrations at full speed. (The oil must over 5
degrees (C))
Is the optional ECO chosen you can vibrate in ECO mode
even if the oil has not reached 5 degrees (C).
Warning symbol, hydraulic fluid
temperature (coldl)
This symbol is shown when the hydraulic fluid is too cold
for the use of vibrations at full speed. (The oil must over 5
degrees (C))
Is the optional ECO chosen you can vibrate in ECO mode
even if the oil has not reached 5 degrees (C).
Warning symbol, low fuel level If this symbol is shown, there is less than 10% of the fuel
left.
Warning symbol, low fuel level If this symbol is shown, there is less than 10% of the fuel
left.
Warning symbol, low oil pressure,
diesel engine
If this symbol is shown, the engine's oil pressure is too low.
Switch off the engine immediately.
Warning symbol, low oil pressure,
diesel engine
If this symbol is shown, the engine's oil pressure is too low.
Switch off the engine immediately.
Warning symbol, low coolant level If this symbol is shown, fill with coolant/glycol and search
for leaks.
Warning symbol, low coolant level If this symbol is shown, fill with coolant/glycol and search
for leaks.
Warning symbol, water in the fuel If this symbol is shown, the engine must be stopped and
the fuel pre-filter drained of water.
Warning symbol, water in the fuel If this symbol is shown, the engine must be stopped and
the fuel pre-filter drained of water.
Warning symbol, low hydraulic fluid
level
If this symbol is shown, fill with hydraulic fluid to the correct
level and search for leaks.
Warning symbol, low hydraulic fluid
level
If this symbol is shown, fill with hydraulic fluid to the correct
level and search for leaks.
39
