Operation
4812160001_A.pdf2014-08-25

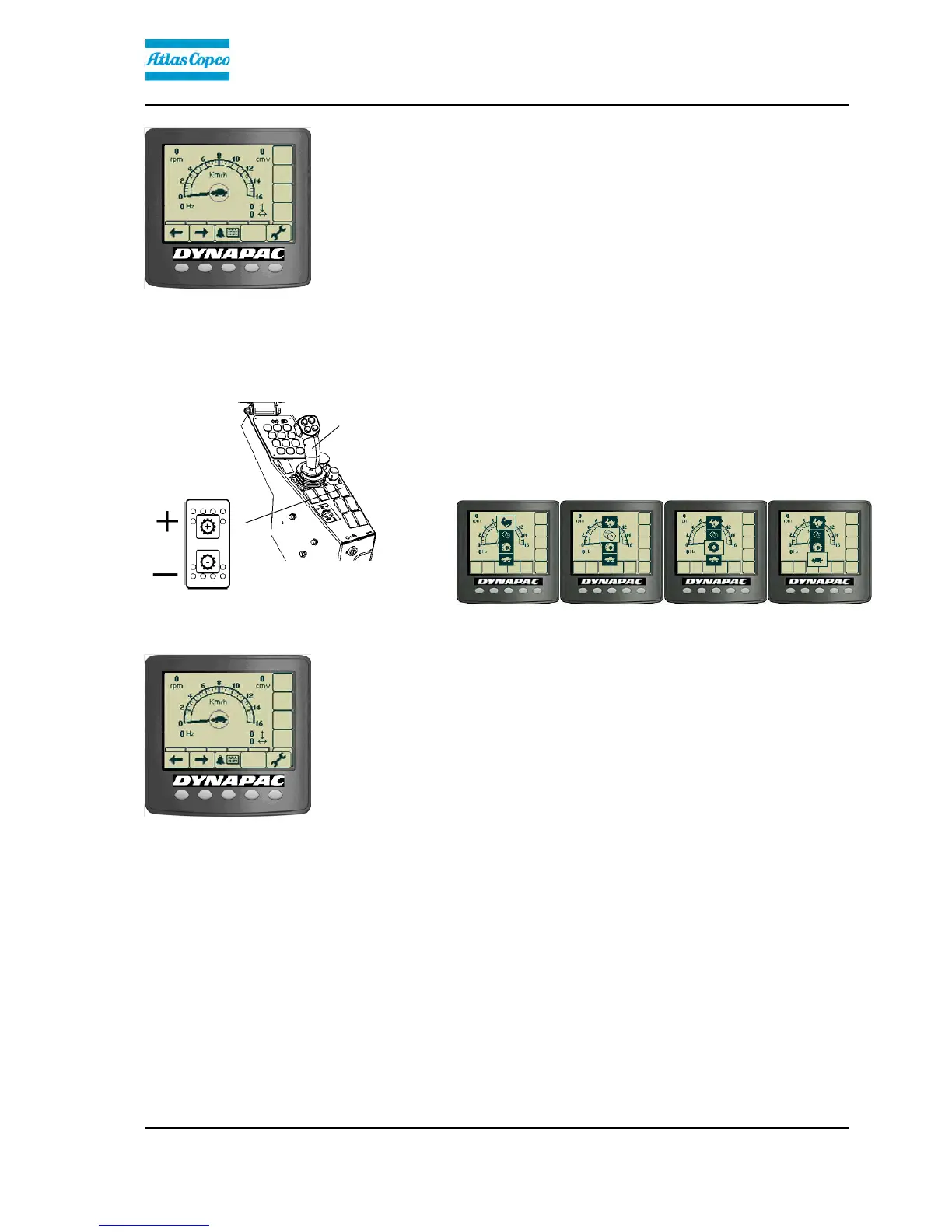

Fig. The display shows the selection in
the middle (tortoise, drum spin, wheelspin
or hare).
Carefully move the forward/reverse lever (2) forwards
or backwards, depending on which direction of travel
is required.
Speed increases as the lever is moved away from the
neutral position.
Machine with gear change in separate
spring-return switch (gear position switch)
Fig. Control panel
1. Gear position switch
2. Forward/Reverse lever
2
1
Switch (1) is a spring-return gear position switch,
where gear change is performed by advancing through
the four different gear positions: Hare, Drum spin,
Wheelspin and Tortoise.
Fig. The display shows the selection in
the middle (tortoise, drum spin, wheelspin
or hare).
63
