Operation
4812160001_A.pdf2014-08-25
Interlock
The roller is equipped with Interlock.
The diesel engine with switch off after 7 seconds if the
operator gets off the seat when going
forwards/backwards.
If the control is in neutral when the operator stands up
a buzzer will go on until the parking brake is activated.
If the parking brake is activated, the diesel engine will
not stop if the forward/reverse lever is moved out of
neutral.
The diesel engine will switch off immediately if for any
reason the forward/reverse lever is moved out of
neutral when the operator is not sitting down and the
parking brake has not been activated.
Sit down for all operations!Sit down for all operations!
Operator position
1
3
2
4

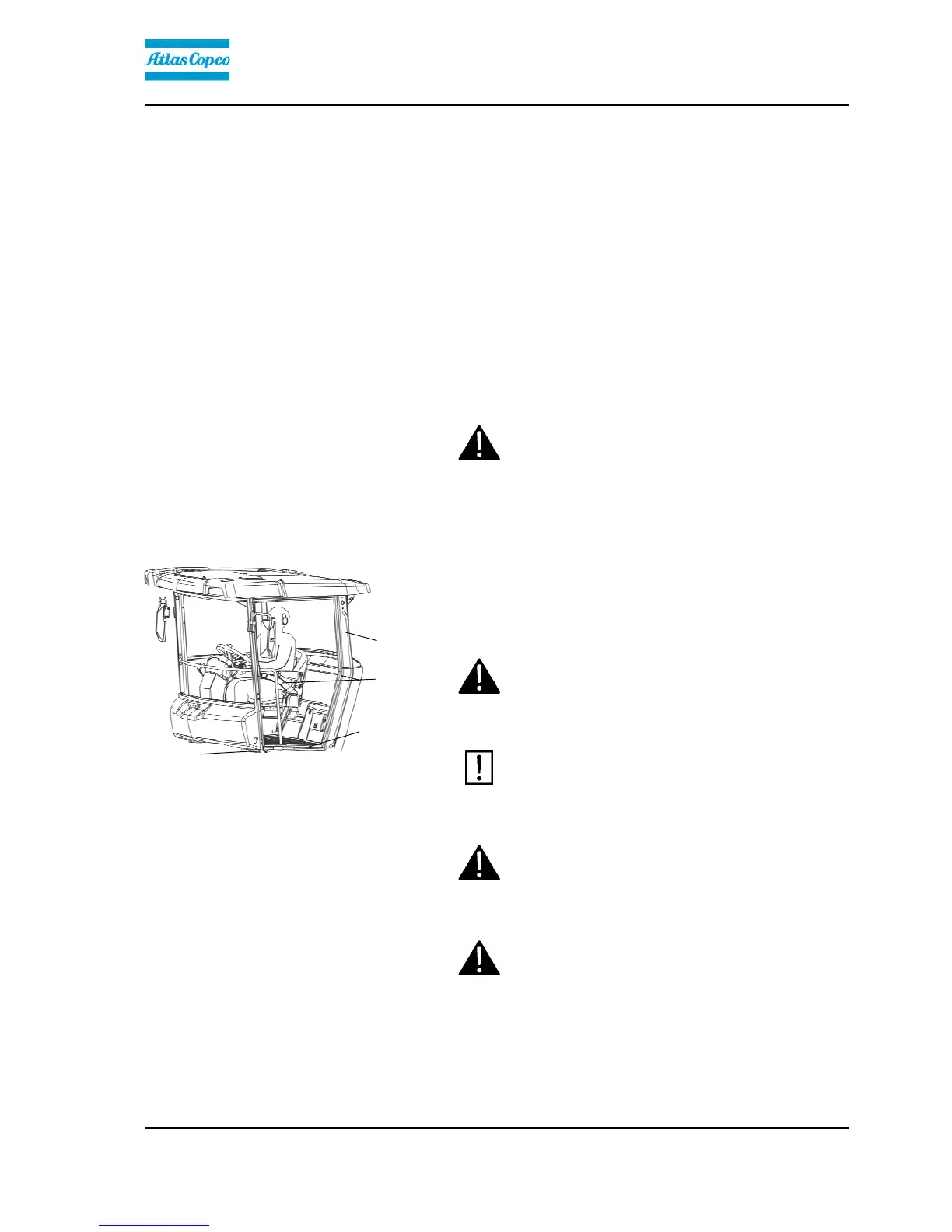

Fig. Operator's station
1. Seat belt
2. ROPS structure
3. Rubber element
4. Anti-slip
If a ROPS (2) (Roll Over Protective Structure) or a cab
is fitted to the roller, always wear the seat belt (1)
provided and wear a protective helmet.
Replace the seat belt (1) if it shows signs of
wear or has been subjected to high levels of
force.
Replace the seat belt (1) if it shows signs of
wear or has been subjected to high levels of
force.
Check that rubber elements (3) on the platform
are intact. Worn elements will impair comfort.
Check that rubber elements (3) on the platform
are intact. Worn elements will impair comfort.
Ensure that the anti-slip (4) on the platform is in
good condition. Replace where anti-slip friction is
poor.
Ensure that the anti-slip (4) on the platform is in
good condition. Replace where anti-slip friction is
poor.
If the machine is fitted with a cab, make sure that
the door is closed when in motion.
If the machine is fitted with a cab, make sure that
the door is closed when in motion.
