Belt reminder
The machine can be equipped with seat belt with belt
reminder.
Unless the seat belt is used, a warning image appear
in the display and a warning buzzer sounds to alert the
driver to use the seat belt.
Operator's seat, comfort - Adjustments
6
4
2
1
3
5

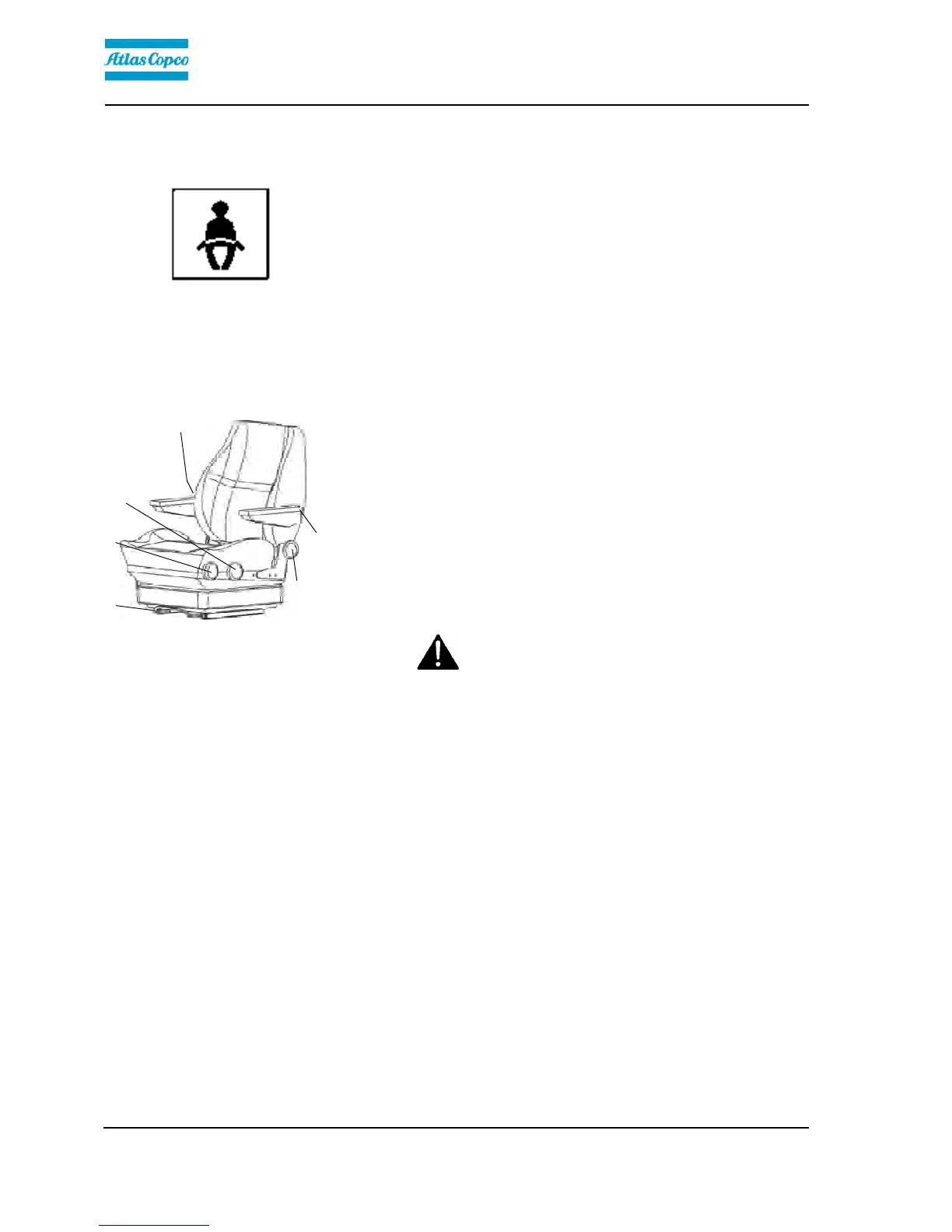

Fig. Operator’s seat
1. Lever - length adjustment
2. Wheel - height adjustment
3. Wheel - seat cushion inclination
4. Wheel - backrest inclination
5. Wheel - armrest inclination
6. Wheel - lumbar support
adjustment
Adjust the operator's seat so that the position is
comfortable and so that the controls are within easy
reach.
The seat can be adjusted as follows:
- Length adjustment (1)
- Height adjustment (2)
- Seat-cushion inclination (3)
- Backrest inclination (4)
- Armrest inclination (5)
- Lumbar support adjustment (6)
Always ensure that the seat is locked in position
before operating the roller.
Always ensure that the seat is locked in position
before operating the roller.
