Atlas Copco CC 1700 U - Nipping out Concrete Elements; Cutting Profiled Steel; Cutting Pipe; Cutting Profiled Construction Steel, Pipe

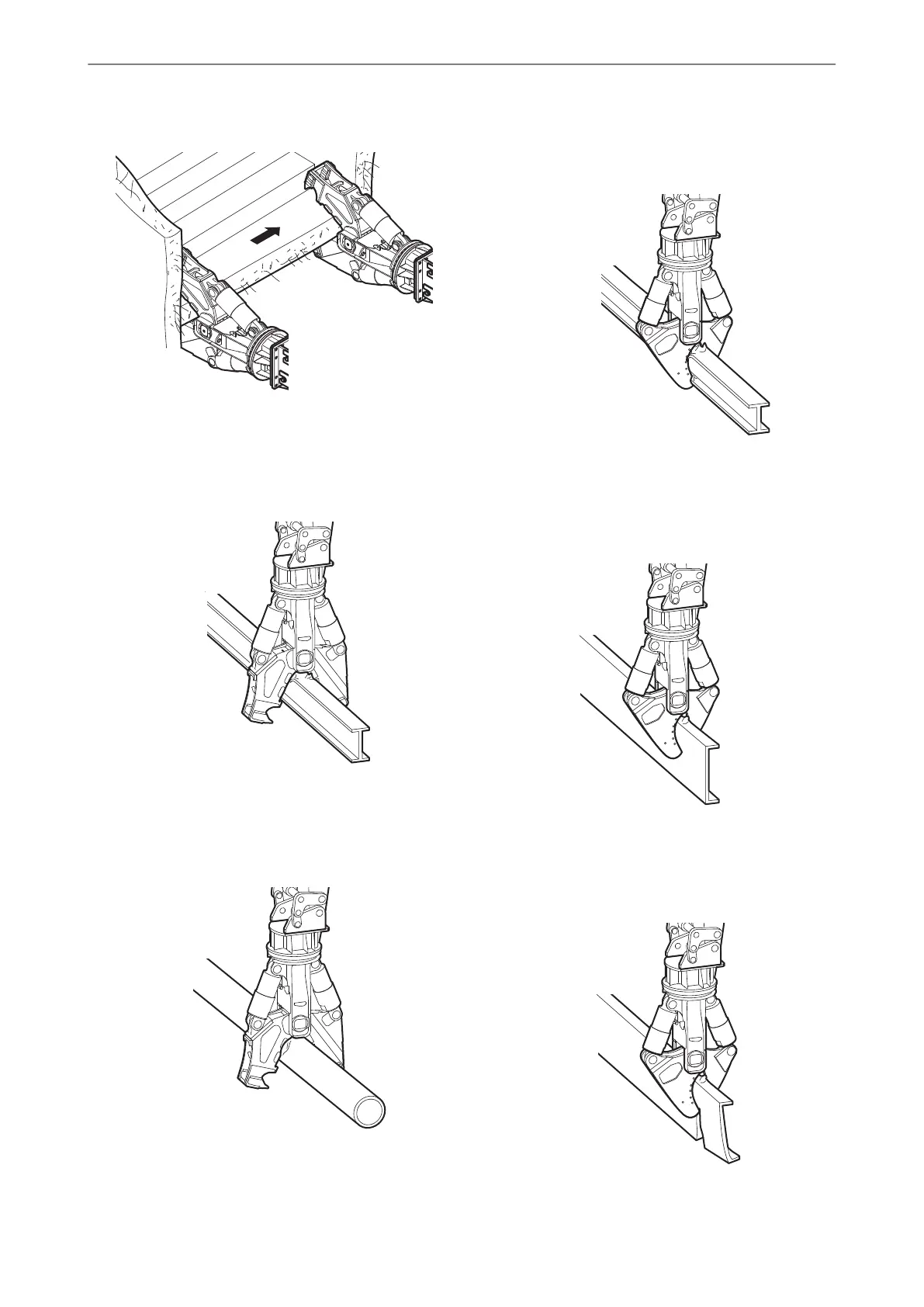

Nipping out concrete elements
♦
Nip concrete elements off at both sides.
1.
2.
Cutting profiled steel
♦
Position the hydraulic demolition cutter so that the
blades encompass the profiled construction steel.
Cutting pipe
♦
Position the hydraulic demolition cutter so that the
blades encompass the pipe.
Cutting profiled construction steel, pipe
♦
Position the hydraulic demolition cutter so that the
blades encompass the profiled construction steel
or pipe.
Cutting wide profiled construction steel
♦
First cut one half of the profiled construction steel.
The tip of the cutter jaw penetrates the web plate.
♦
Turn the profiled construction steel or re-position
the hydraulic demolition cutter.
♦
Cut the other half of the profiled construction steel.
37© 2015 Construction Tools GmbH | No. 3390 5141 01 | 2015-11-16
Original instructions
OPERATIONCC 1700 U, 1700 S
