4.7. Outputs menu
Menu icon, outputs
Function
To view the information about the measured data and the status of different
outputs (for example, motor over‑load protection).
Procedure
Start from the Main screen (refer to Main screen on page 33):
▪ Use the Scroll keys to move the cursor to the Menu action button.
▪ Push the Enter key. The screen that follows is displayed:

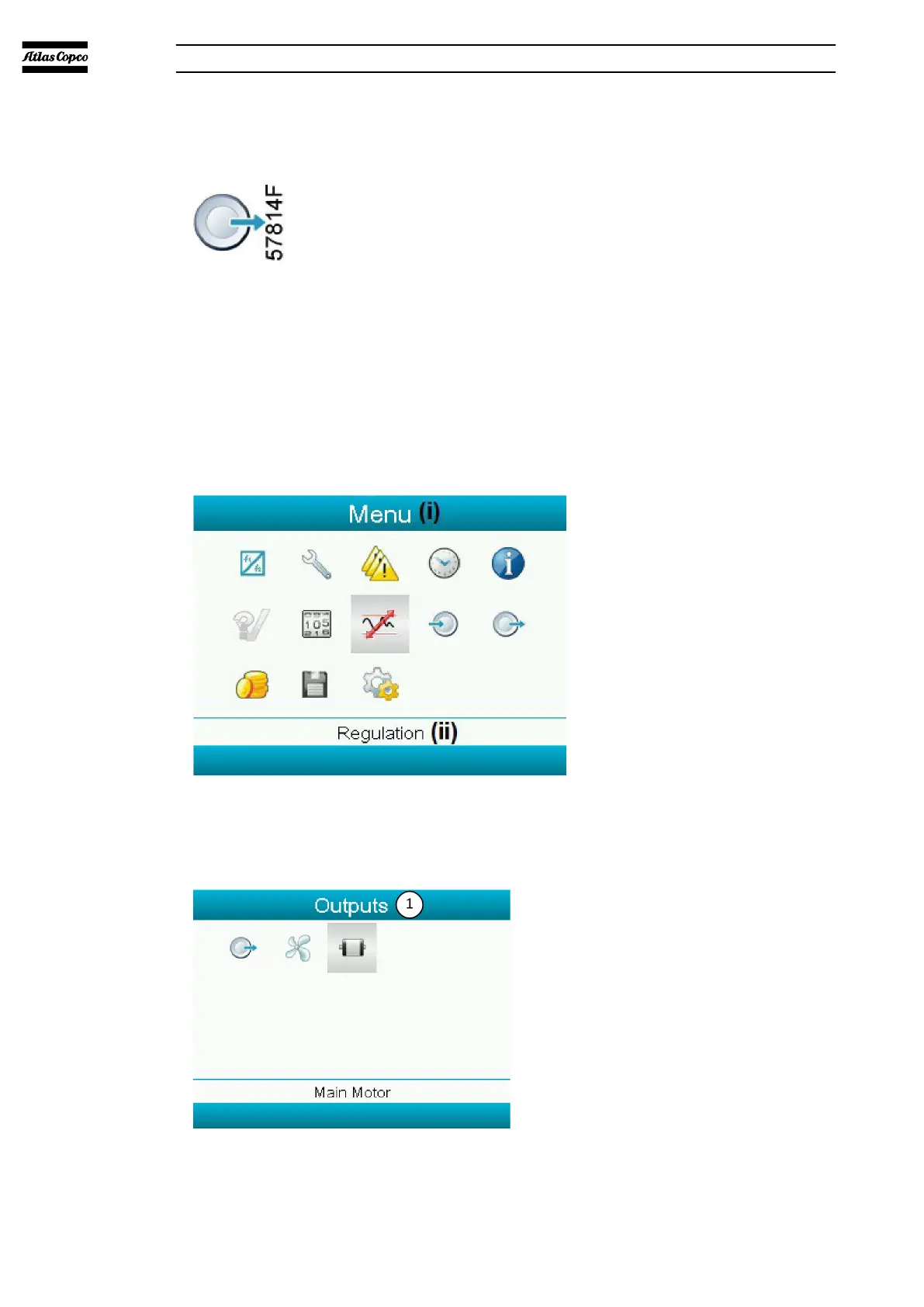

1. Menu 2. Regulation1. Menu 2. Regulation
▪ Use the Scroll keys to move the cursor to the outputs icon (refer to menu
icon).
▪ Push the Enter key. The screen that follows is displayed:
