Atlas Copco GHS 350 VSD+ - Main Screen Views and Navigation

Instruction book
24 6996 0227 40

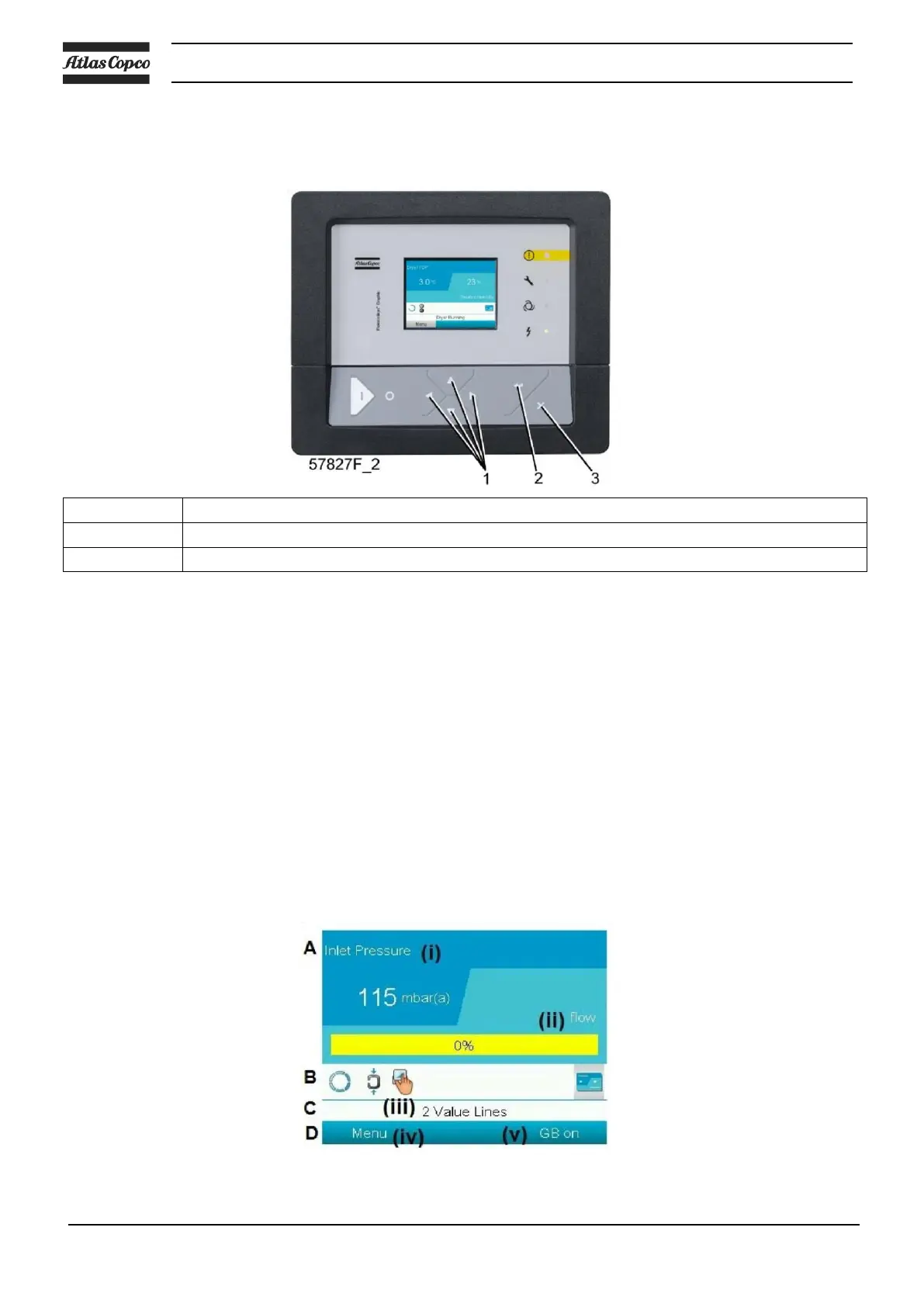

3.4 Main screen
Control panel
(1)
Scroll keys
(2)
Enter key
(3)
Escape key
Function
The Main screen is the screen that is shown automatically when the voltage is switched on and one of the
keys is pushed. It is switched off automatically after a few minutes when no keys are pushed.
Typically, 5 different main screen views can be chosen:
1. Two value lines
2. Four value lines
3. Chart (High resolution)
4. Chart (Medium resolution)
5. Chart (Low resolution)
Two and four value lines screens
This type of Main screen shows the value of 2 or 4 parameters (see section Inputs menu).
Typical Main screen (2 value lines)
