Remote control: The vacuum pump will react to commands from external switches. Emergency
stop remains active. Vacuum pump start/stop commands via Clock function are still possible.
Have the modifications checked by Atlas Copco.
Stop the vacuum pump and switch off the voltage before connecting external equipment.
Only potential-free contacts are allowed.
LAN control: The vacuum pump is controlled via a local network. Consult Atlas Copco.
Vacuum pump status indication
The Elektronikon controller is provided with potential-free auxiliary NO contacts (NO = normally open)
(K07, K08 and K09) for remote indication of:
Manual or automatic operation (K07)
Warning condition (K08)
Shut-down condition (K09)
Maximum contact load: 10 A / 250 V AC.
Stop the vacuum pump and switch off the voltage before connecting external equipment. Consult Atlas
Copco.

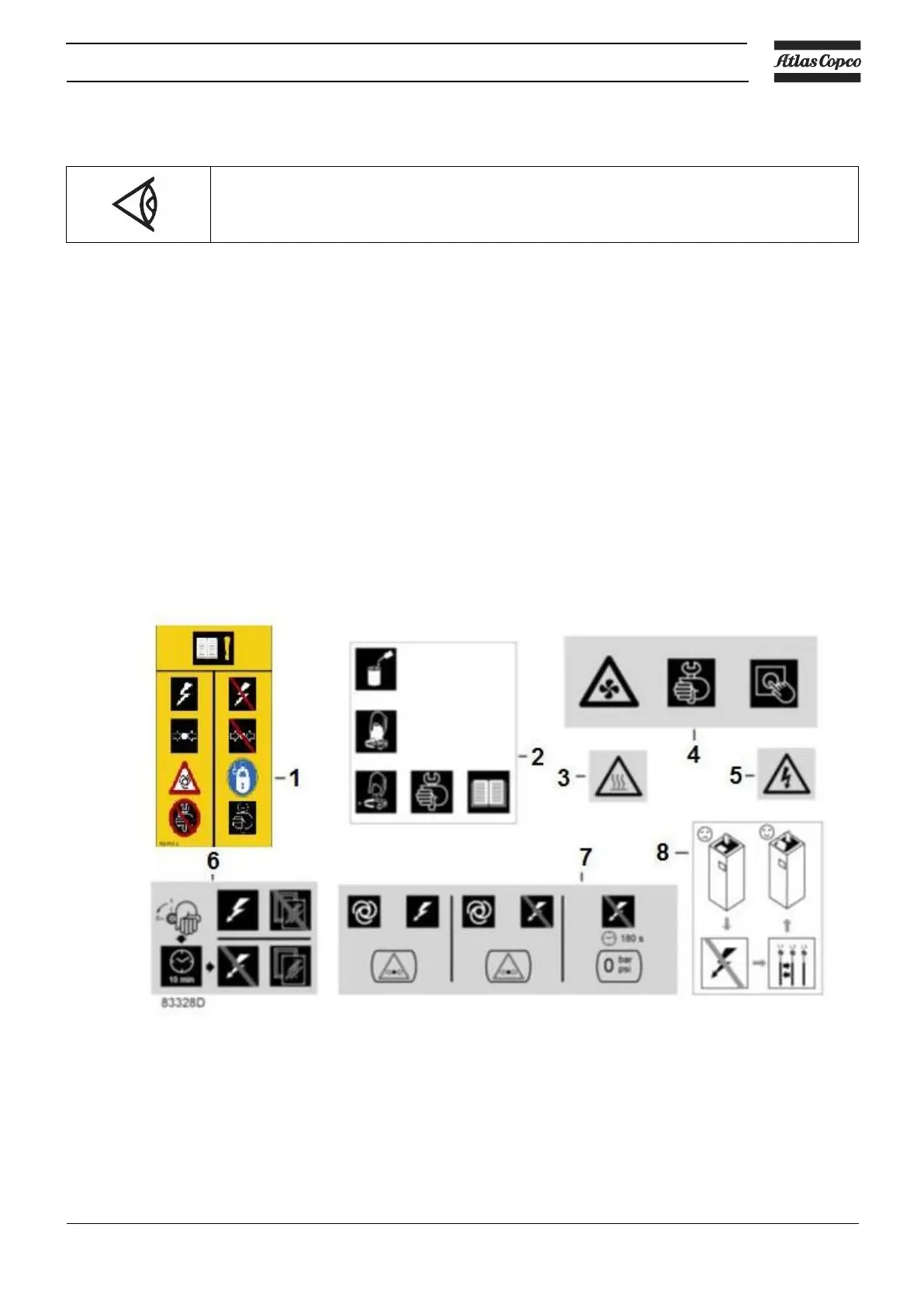

4.4 Pictographs
Pictographs
