Instruction book
62 6996 0227 40

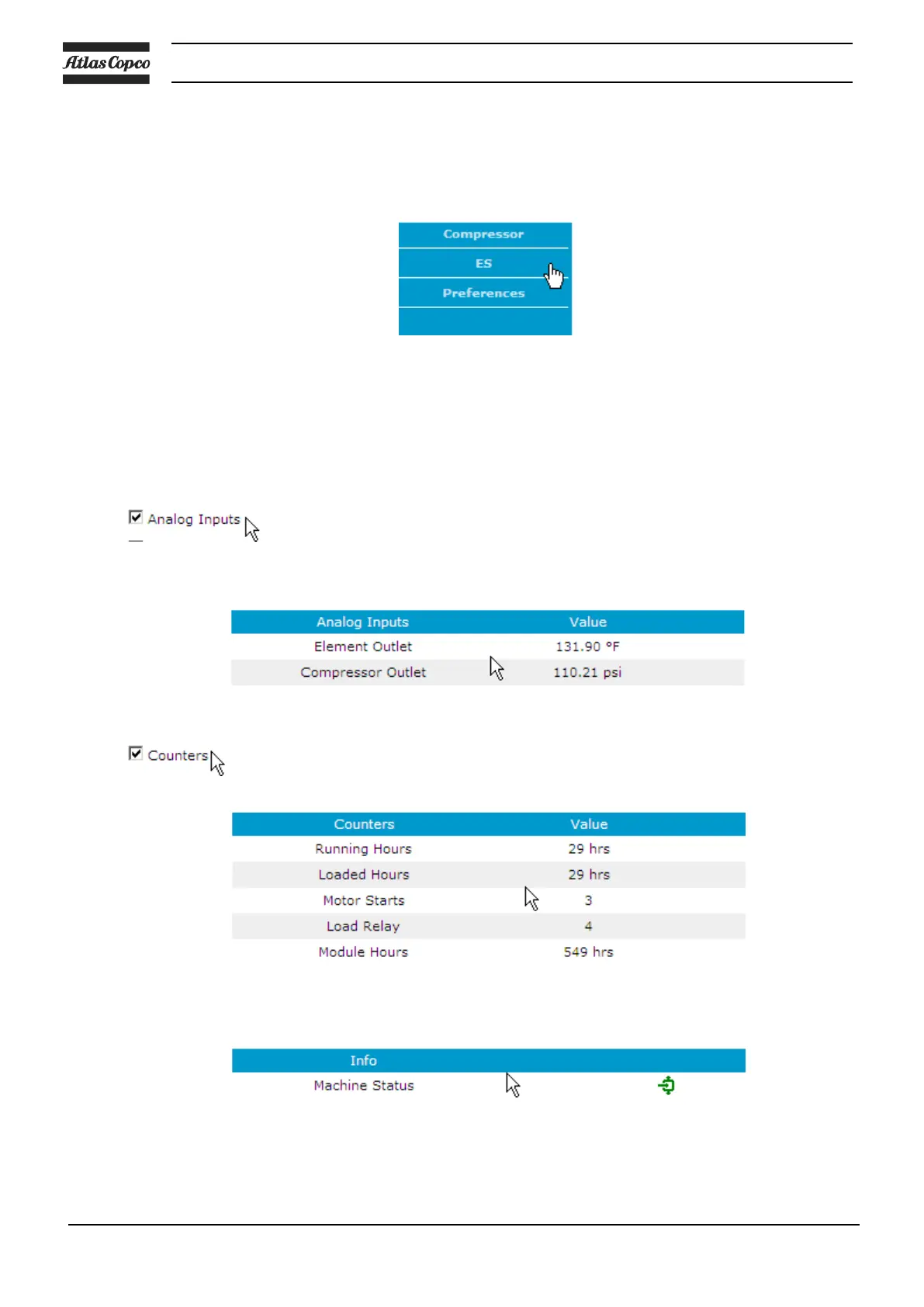

If a license for ESi is foreseen, the menu contains 3 buttons.
Compressor: shows all compressor settings.
Es: shows the ESi status if a license is provided.
Preferences: Change temperature and pressure unit.
Compressor settings
All compressor settings can be displayed or hidden. Put a mark in front of each point of interest and it will
be displayed.
Only the machine status is fixed and cannot be removed from the main screen.
Analog Inputs
Analog inputs show: the compressor units.
These units can be changed in the preference button from the navigation menu.
Counters
Counters give an overview of all actual counters from controller and compressor.
Info Status
Machine status is always shown on the web interface
