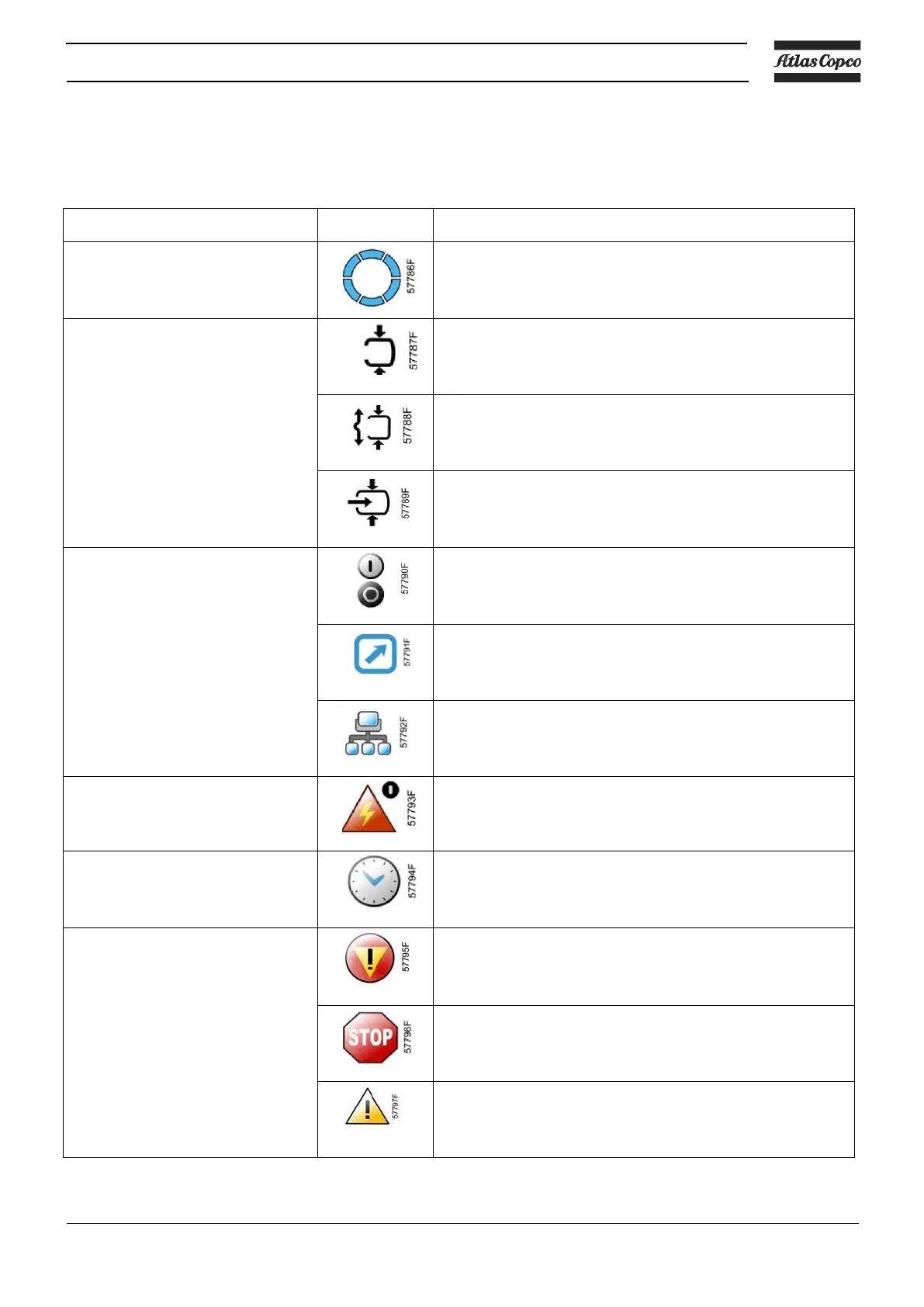

3.3 Icons used
Status icons
Name
Icon
Description
Stopped/Running
When the vacuum pump is stopped, the icon stands still.
When the vacuum pump is running, the icon is rotating.
Vacuum pump status
Motor stopped
Running Purge and Intermediate states
Running Vacuum Control
Machine control mode
Local start/stop
Remote start/stop
Network control
Automatic restart after voltage
failure
Automatic restart after voltage failure is active
Week timer
Week timer is active
Active protection functions
Emergency stop
Shutdown
Warning
