- 17 -
2.3 Mechanical features
The mechanical features described in this chapter are
standard provided on this light tower. For all optional
mechanical features, see “Overview of the
mechanical options” on page 63.
2.3.1 Engine and alternator
The alternator is driven by a fluid-cooled diesel
engine. The engine’s power is transmitted through a
direct disc coupling.
The light tower houses a single bearing alternator
with a dedicated excitation system for light tower
application.
The synchronous brushless alternator has Class H
rotor and stator windings in an IP21 housing.
2.3.2 Cooling system
The engine is provided with a water cooler. The
cooling air is generated by a fan, driven by the engine.
2.3.3 Safety devices
The unit controller monitors the engine and electrical
parameters and generates warning and shutdown
signals when the parameters reach a preset treshold
value.
2.3.4 Bodywork
The alternator, the engine, the cooling system, etc. are
enclosed in a sound-insulated bodywork that can be
opened by means of side doors.
The light tower can be lifted by using the lifting eye
integrated in the bodywork (roof). To be able to lift
the HiLight H4 by means of a forklift, rectangular
holes are provided in the frame at the left and right
side of the unit.
2.3.5 Control panel
The control panel grouping the controller, fuses,
automatic switches sockets, etc., is placed at the right
side.
2.3.6 Data plate and serial number
The light tower is furnished with a data plate showing
the product code, the unit number and the power
output (see “Data plate” on page 80).
The serial number is located on the frame, on the left
side of the towbar.

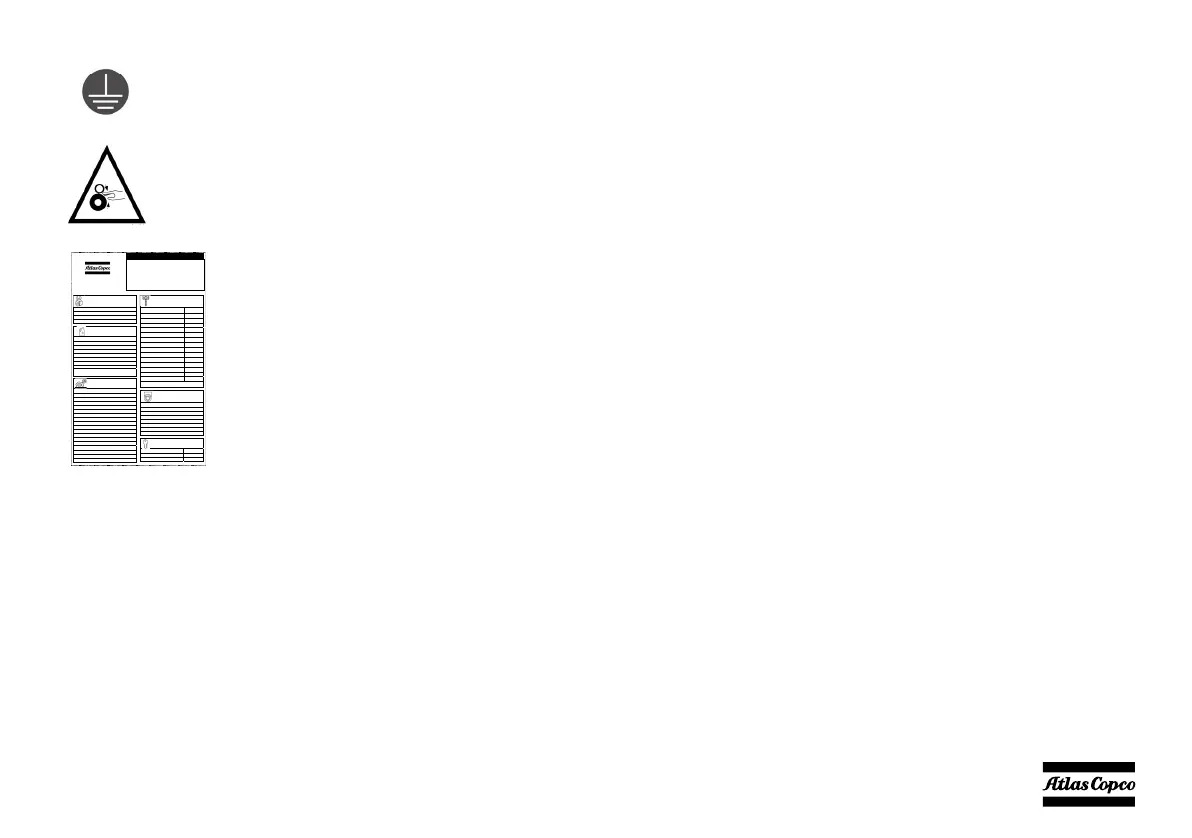

Indicates the earthing connections on
the light tower.
Indicates the danger of touching
rotating parts of the unit.
Indicates the different
service packs, liquids and
critical parts. These parts
can be ordered to the
factory.
HiLight H4
Engine D1105-EBG2
Fuel tank capacity 109 L (28,85 U.S GALS)
Oil sump capacity 5,1 L (1,35 U.S GALS)
Cool. system capacity 3,1 L (0,82 U.S. GALS)
Hyd. oil capacity 5 L (1,32 U.S. GALS)
Alternator LT3N-160/4
Tyre pressure
Full tank (load 575 kg)
3,5 Bar (51 Psi)
Fluids
Description Order Nr
PAROIL E 5L (1.1GAL) 1615 5953 00
PAROIL E 20L (4.4GAL) 1615 5954 00
PAROIL E 209L (45.98GAL) 1615 5955 00
PAROIL E XTRA 5L (1.1GAL) 1630 0135 00
PAROIL E XTRA 20L (4.4GAL) 1630 0136 00
PARCOOL EG 5L (1.1GAL) 1604 5308 00
PARCOOL EG 20L (4.4GAL) 1604 5307 01
PARCOOL EG CONCENTRATE
5L (1.1GAL)
1604 8159 00
Service Kits
Description Order Nr
SERVICE KIT 250H 1636 3103 31
SERVICE KIT 500H 1636 3103 32
SERVICE KIT 750H 1636 3103 33
Engine Parts
Description Order Nr
RADIATOR CAP 1636 3005 19
OIL DIPSTICK 1636 3004 01
OIL FILL CAP 1636 3004 02
ELECTRIC FUEL PUMP 2913 3086 00
OIL PRESSURE SWITCH 2913 3100 00
TEMPERATURE SWITCH 2914 8678 00
FUEL STOP SOLENOID 1636 3003 97
THERMOSTATIC VALVE 1636 3003 99
THERMOSTAT GASKET 1636 3004 16
ROCKER COVER GASKET 1636 3004 11
STARTER MOTOR 1636 3004 04
CHARGING ALTERNATOR 1636 3004 03
V-BELT 1636 3004 12
FUEL TANK CAP 1636 0000 15
RADIATOR 1636 3004 07
TOP TANK 1636 3004 14
SAFETY CARTRIDGES 1636 3005 80
Light Tower
Description Order Nr
LAMP 1636 0023 88
PROJECTOR (NO LAMP) 1636 0023 87
PROJECTOR GLASS 1636 3005 70
HYDRAULIC OIL TANK 1636 3005 07
HYDRAULIC OIL TANK CAP 1636 3005 08
HYDRAULIC CYLINDER KIT 1636 3005 72
MAST KIT PLATES 1636 3005 74
MAST STEEL CABLE 1636 0023 99
PUMP MOTOR 1636 3005 10
CAPACITOR 1636 3005 71
SOLENOID VALVE 1636 3004 95
BALLAST 1636 0023 80
IGNITOR 1636 0023 81
CAPACITOR 1636 0023 82
HYDRAULIC OIL SPEC. HVLP 46 (ISO 6743-4 HV)
Alternator Parts
Description Order Nr
ROTOR 1636 3005 22
STATOR 1636 3005 28
FAN 1636 3005 23
COUPLING DISC 1636 3005 26
BEARING 1636 3005 24
DIODE 1636 3005 25
CAPACITOR 1636 3005 27
Keys
Description Order Nr
FUEL TANK CAP KEYS 2914 9500 00
DOOR KEYS 1636 3001 88
1636 0029 45 www.atlascopco.com
