- 22 -

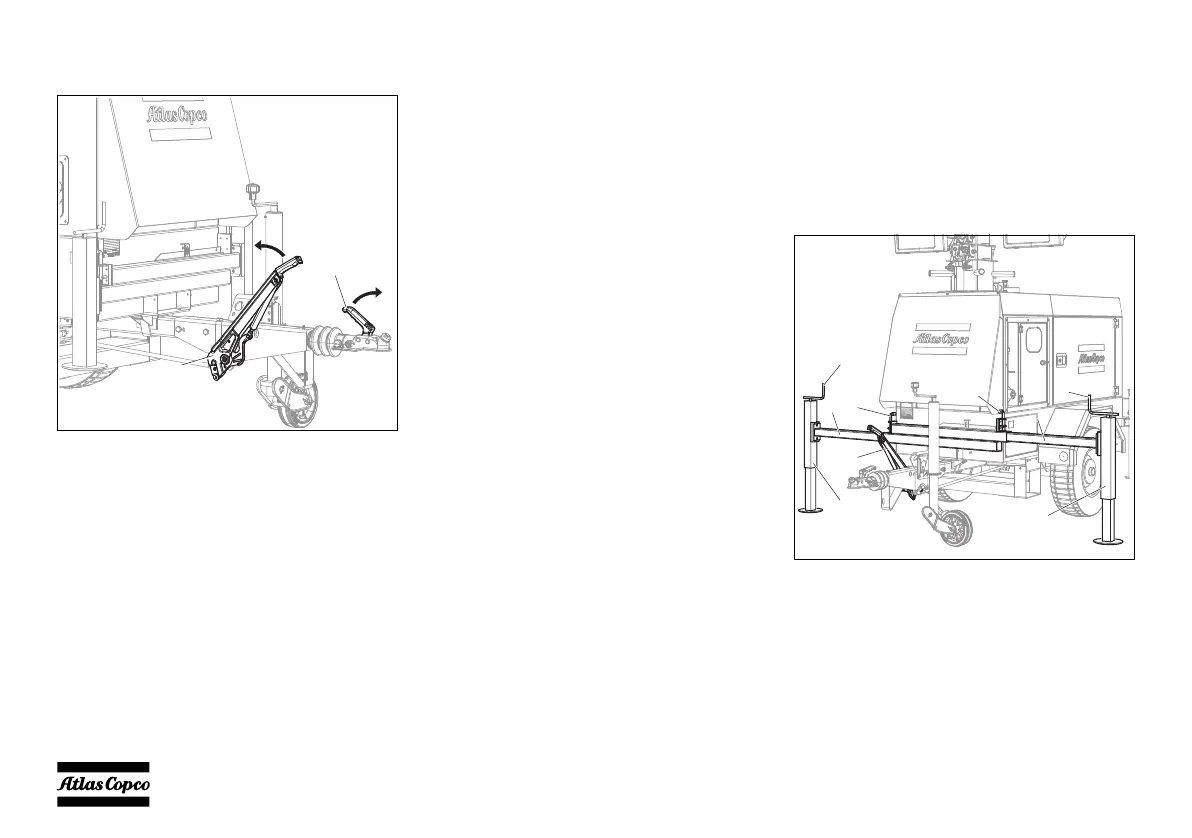

To release the light tower from the towing vehicle,
carefully follow the procedure below:
1. Engage the handbrake (1), if provided.
2. Disconnect the cable plug for the trailer lights.
3. Adjust the height of the support leg/jockey wheel
to level the light tower and to support its weight.
4. Disconnect the safety wire from the towing
vehicle.
5. Uncouple the trailer from the towing vehicle.
Release the locking lever of the towbar coupler
(2), if applicable.
6. Proceed with positioning, to set up the light tower.
To reconnect the light tower to the towing vehicle,
proceed as above but in the reverse order (see also
“Towing” on page 24).
3.2.2 Positioning the light tower
Follow the steps below to position the light tower:
1. Ensure that the handbrake is engaged, if available,
and make sure that the mast is down.
2. For the two front stabilizers; release the locking
pin of the stabilizer (2) by lifting it up and pull the
supporting foot (3) at the maximum extension of
the stabilizer (4).
3. Once the front stabilizers (4) have been extended,
release the locking pin (2) to lock them in
position.
1
2
2
1
3
5
3
2 5
4
4
00_00_HiLight H4_EN.book Page 22 Monday, April 18, 2016 2:10 PM
