- 79 -

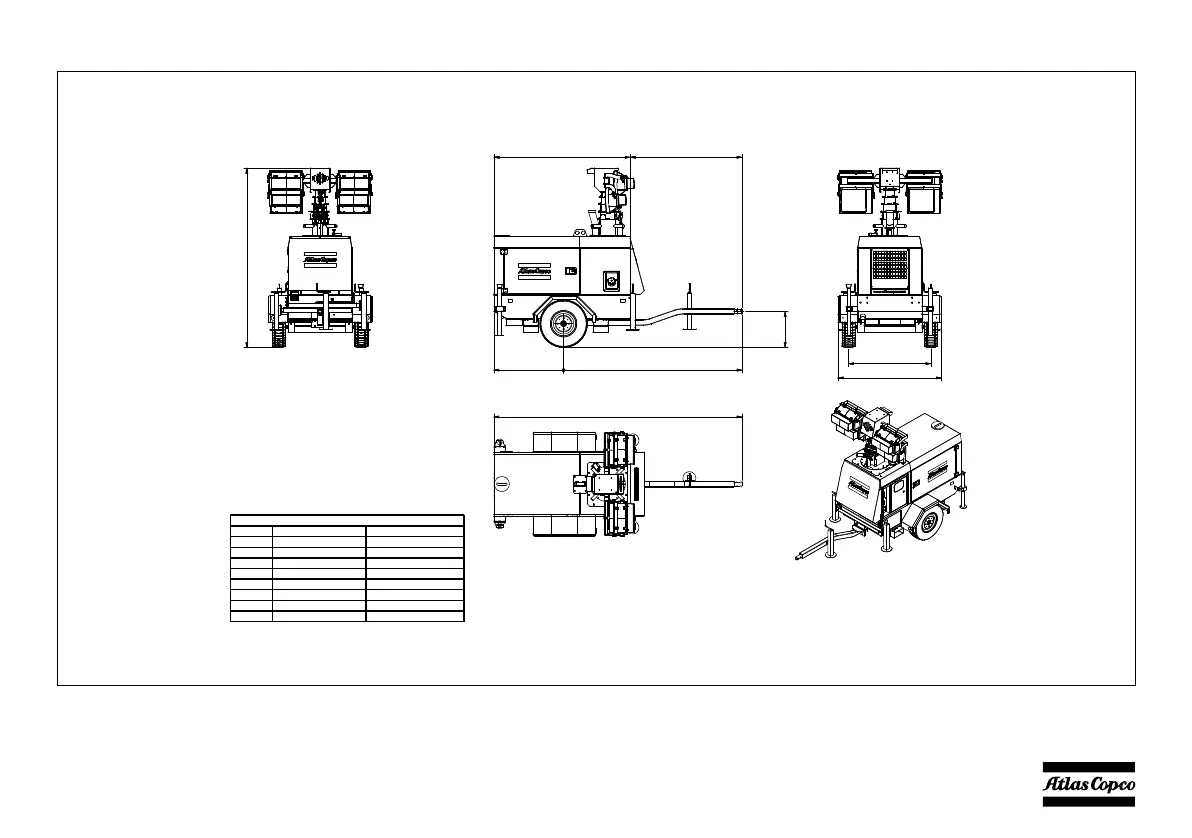

10.4.3 Dimension drawing for HiLight H4 with not homologated towbar

A Total length (mm) 3095

B Total width (mm) 1295

C Total height (mm) 2240

D Base frame length (mm ) 1700

E Towbar length (mm) 1395

F Towbar height (mm) 451

G Wheel track width (mm) 1029

H Front cantilever (mm) 2225

I Rear cantilever (mm) 870

HiLight H4 NOT HOMOLOGATED TOWBAR

Isometric view (1:30)

I H

00_00_HiLight H4_EN.book Page 79 Monday, April 18, 2016 2:10 PM
