3 Installation and
connection
3.1 Lifting

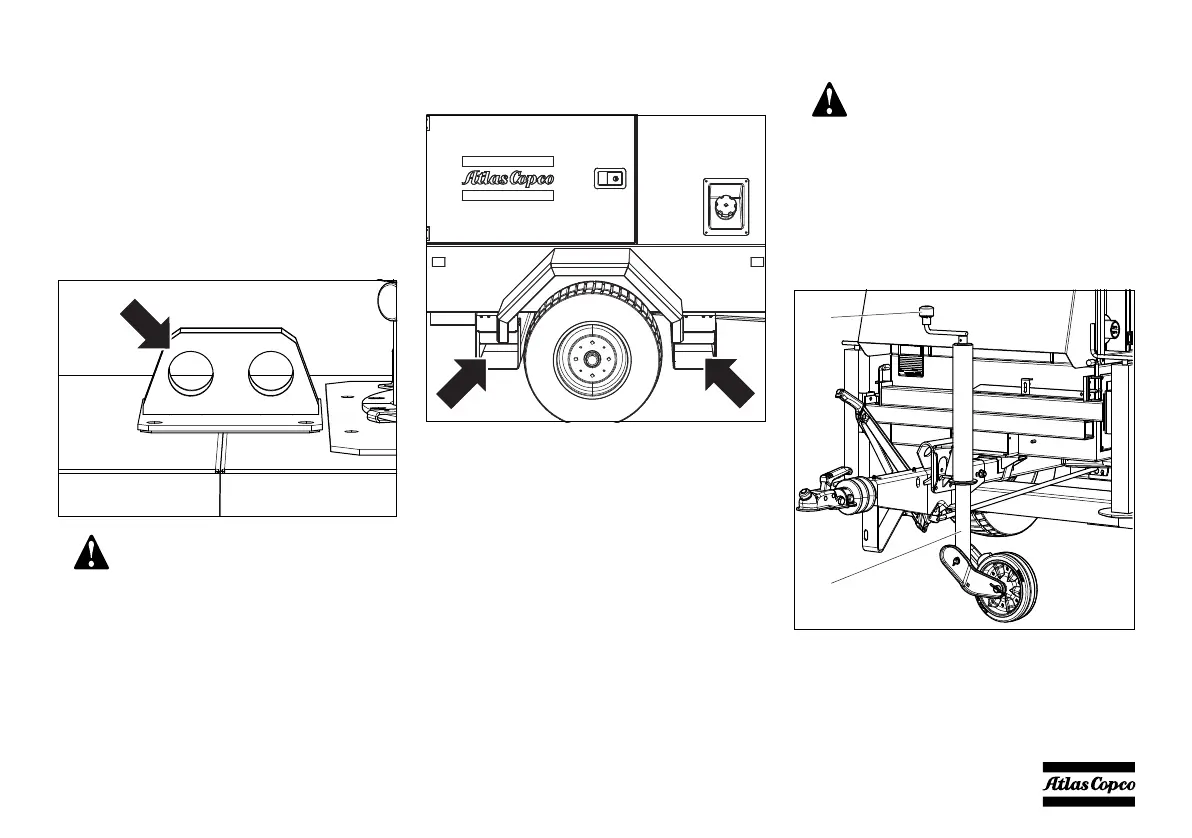

The lifting eye, to lift the light tower by means of a
hoist, is integrated in the bodywork and easily
accessible from the outside.
When lifting the light tower, the hoist has to be placed
in such a way that the light tower, which must be
placed level, will be lifted vertically.
To be able to lift the light tower by means of a forklift,
forklift slots are provided in the frame at the left and
right side of the unit.
3.2 Parking and towing
3.2.1 Unhooking the light tower
1. Secure the support leg/jockey wheel (1) to support
the light tower in a level position.
2. Adjust the height of the support leg/jockey wheel
using the handle (2).
Lifting acceleration and deceleration
must be kept within safe limits (max.
2 g).
Helicopter lifting is not allowed.
The operator is expected to apply all
relevant safety precautions,
including those mentioned on page 9
to page 14 of this booklet.
