- 34 -

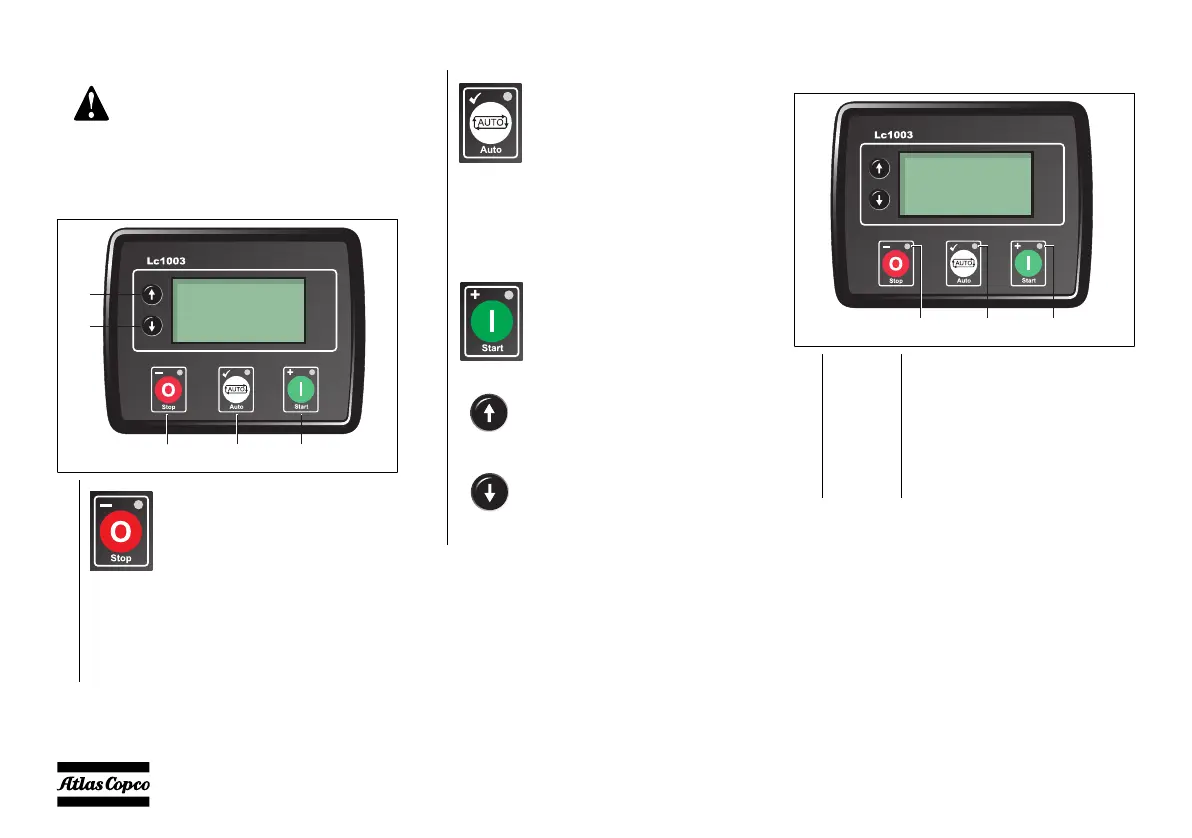

4.4 Setting the Lc1003™ controller
4.4.1 Push button and LED functions
Following push buttons are used on the
Lc1003™:
Following Leds are used on the Lc1003™:
Controller settings should only be
performed by a qualified technician.
1
STOP: Is used to activate Stop/Reset
mode. When pressing the STOP
button, the generator will unload
(Light Output 1, 2, 3 & 4 becomes
inactive (if used)), the fuel supply de-
energises and the engine shuts down.
Pressing the STOP button will also
clear any alarm conditions for which
the triggering criteria have been
removed.
123
4
5
2
AUTO: Is used to activate Auto
mode.
It is also used for floodlight
operation:
switch on the floodlights
manually (S20: ON)
switch on/off the floodlights
automatically, in REMOTE
mode (S20: REMOTE)
3
START: Is used to start the unit in
Manual mode.
It is also used to switch off the
floodlights manually (S20: ON).
4
UP: Is used for navigating the
instrumentation, event log and
configuration screens and to go to the
previous parameter level.
5
DOWN: Is used for navigating the
instrumentation, event log and
configuration screens and to go to the
next parameter level.
1Stop LED indicates that the unit is in Stop/
Reset Mode.
2Auto LED indicates that the unit is in Auto
Mode.
3
Start
LED indicates that the unit is in
Manual/Start Mode.
1 2 3
