- 89 -
12
11
10
2
1
9
8
7
6
4
3
13
5

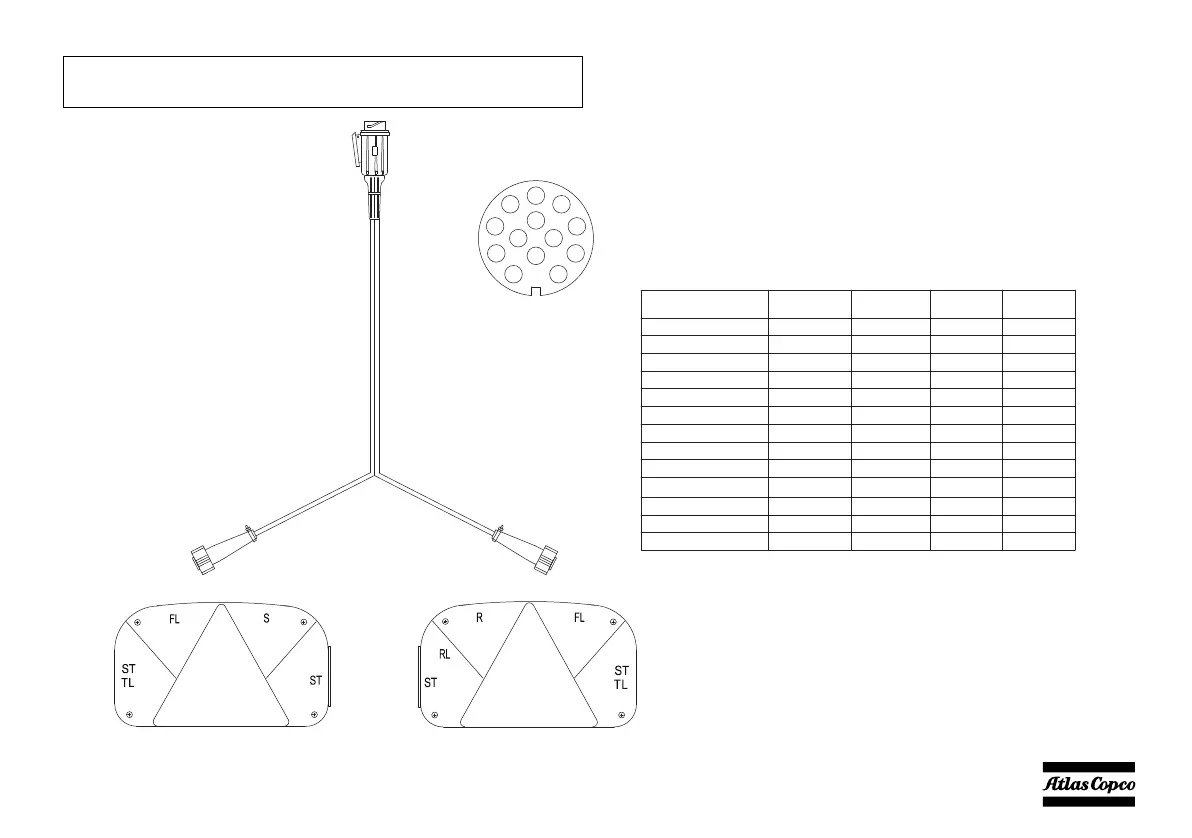

Connector - ISO 114466
FUNCTION WIRE COLOUR
CONNECTOR
PIN NUMBER
LEFT
REAR LIGHT
RIGHT
REAR LIGHT
Flasher left Yellow
1
FL
Fog light
Blue
2
S
Common - GND
White
3NN
Flasher right
Green
4FL
Tail light right
Brown
5TL
Stop light / Plate lamp
Red
6
ST ST
Tail light left
Black
7TL
Reversing light
Grey
8R
Not used
9
Not used
10
Not used
11
Not used
12
Not used
13
1636 0024 45/00
Applicable for HiLight H4, Wire Harness, Homologated Road
