2920 1257 04
25
Instruction book

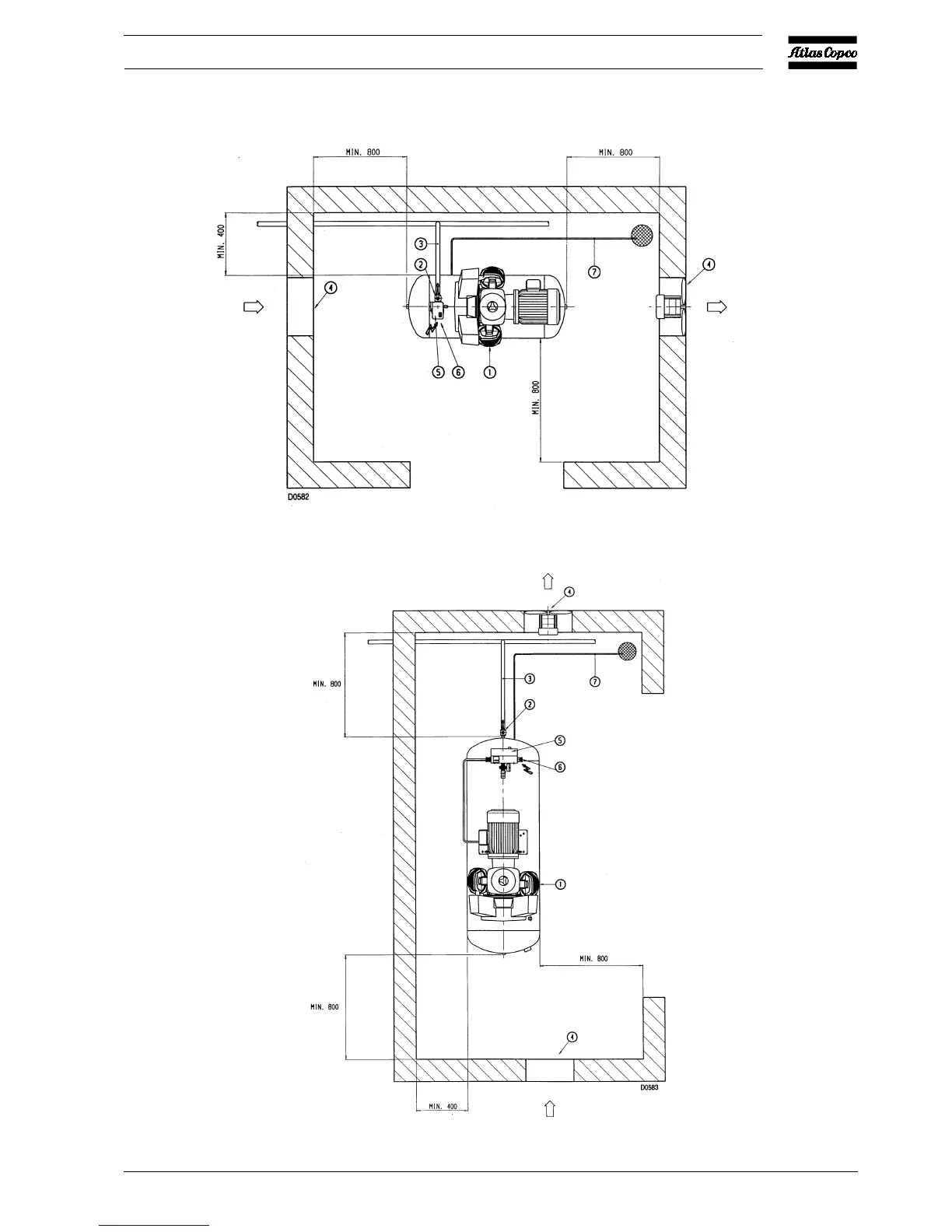

2.2 Installation proposals
Fig. 2.16 Installation proposal for Complete Unit (120 l receiver)
Fig. 2.17 Installation proposal for Complete Unit (250/475 l receiver)
