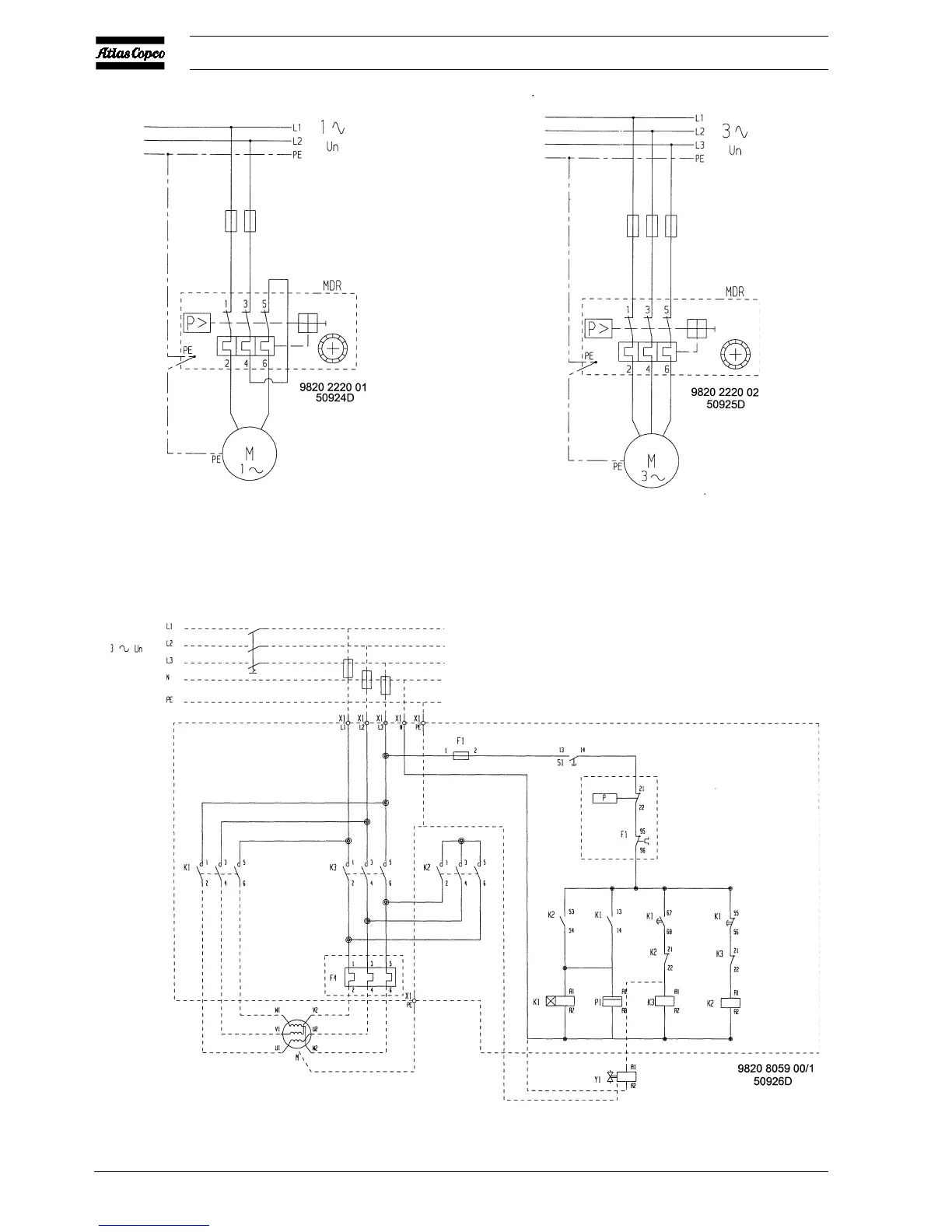

Fig. 2.22 Electrical diagram of single-phase LE/LF/LT with
direct-on-line starter
Fig. 2.23 Electrical diagram of 3-phase LE/LF/LT15 up to -
55 with direct-on-line starter
Fig. 2.24 Electrical diagram of 3-phase LE/LT40 up to -110, LE150 and LF40 up to -75 with star-delta starter
