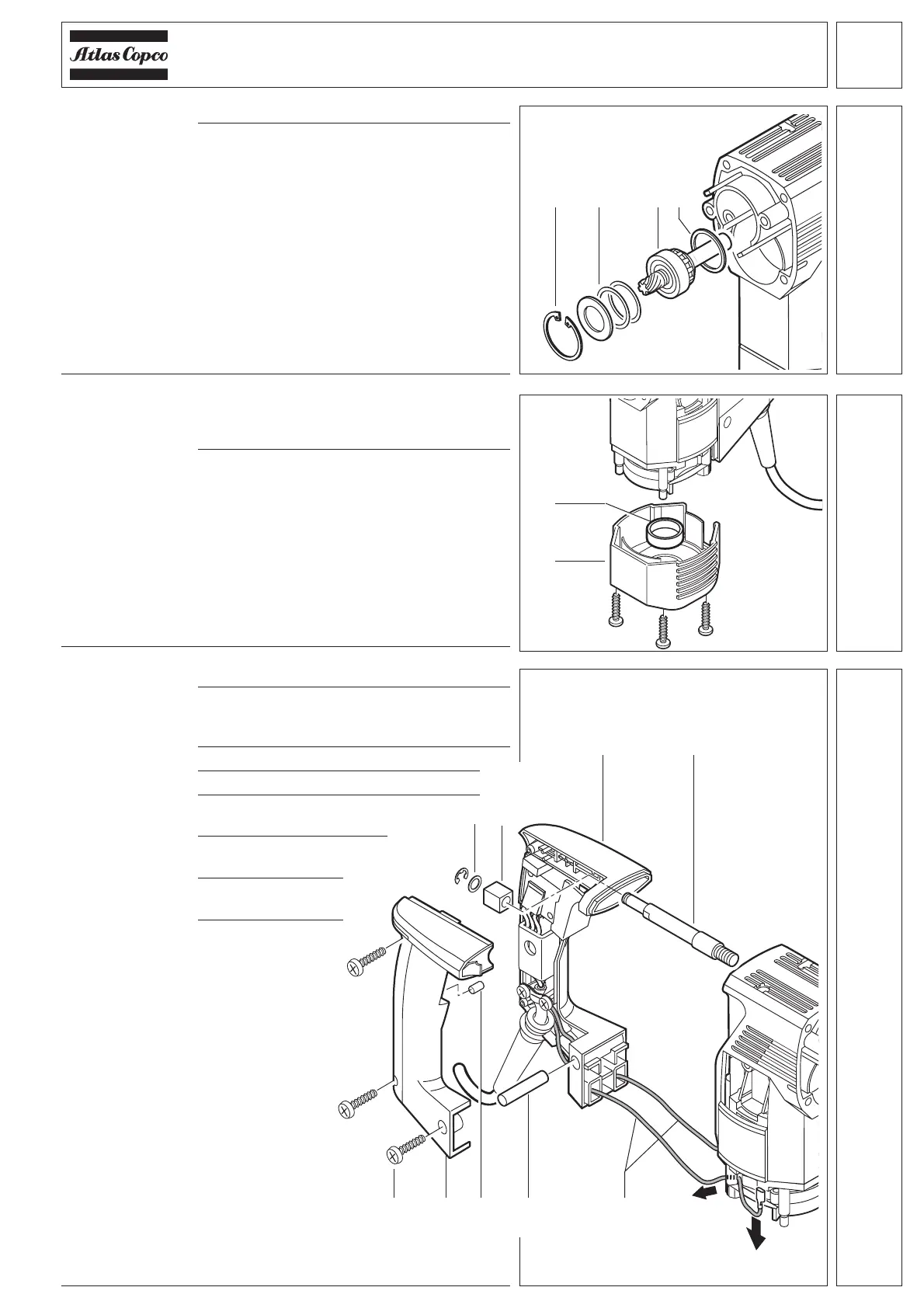

Repair Instruction No. 175.8/95
PHE 3, PHE 3X
PAGE
5
1 Expel the pin (8).
2 Remove the field supply cables (9) from
the contacts and pull them from the field
housing.
3 Unscrew the handle cover (6).
4 Remove the silicone buffer (7).
5 Remove the locking ring
and the washer (1).
6 Remove the
AVS-rubber (2).
7 Remove the
handle (3).
8 Unscrew the
handle bolt (4).
1 Remove the locking ring (1).
2 Remove the angle drive (3) together with
the washers (2) and the support ring (4).
(If necessary by hitting the gear housing
lightly with a plastic hammer.)
F
Depending on the tolerance of the
bearing the tool can be equipped with
two or three washers (2). Note the
numbers of the washers and mount the
same number when re-assembling.
Removing the
angle drive
Dismantling the
handle
1 Loosen the four screws and remove the
motor cover (2).
2 Remove the rubber cap (1).
F
The rubber cap (1) is glued in (from date
of manufacture 01/97).
Removing the
motor cover
1 2 3 4
2
13
9
43
1
4
12
1
12
875 6
