Atlas Copco PHE 3 User Manual

Repair Instruction No. 175.8/95
PHE 3, PHE 3X
PAGE
6
2
3
4
1
1
6

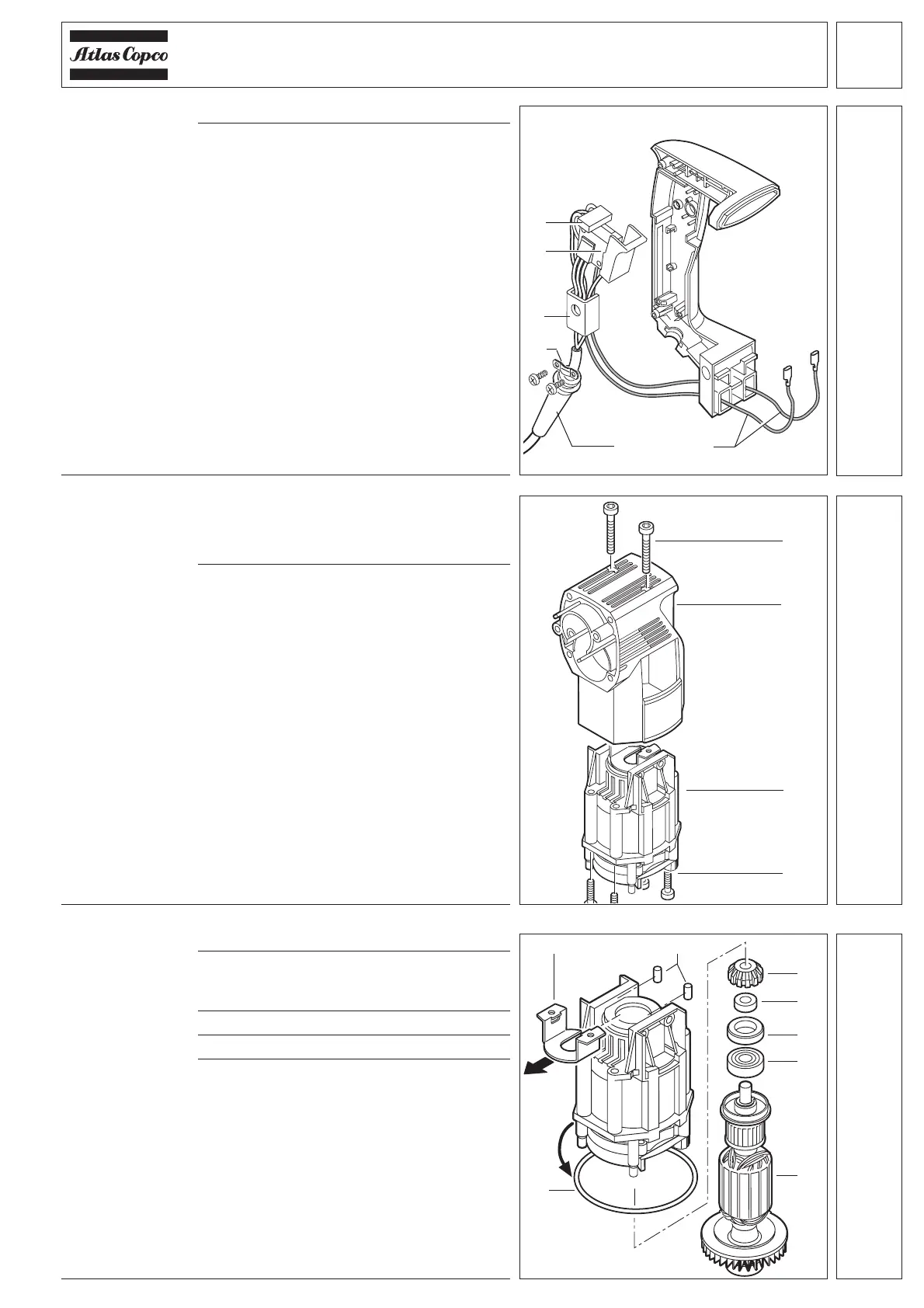

1 Unscrew the strain relief (4).
2 Remove the following parts:
– switch (2)
– capacitor (1)
– triac (3)
– mains cable (5)
– field cable (6)
Removing the
electrical parts
1 Loosen the screws (1) and (4) and pull
out the motor (3) (if necessary, hit the
motor housing (2) lightly with a plastic
hammer).
Removing the
motor
1 Remove the seal ring (9).
2 Push out the angle (1) as shown in
illustration, and remove the silicone
buffer (2).
3 Pull out the entire armature (7).
4 Press off the toothed wheel (3).
5 Remove the washer (4), the sealing ring (5)
and the bearing (6).
Removing and
dismantling the
armature
15
2
1
3
4
5 6
7
2
3
4
1
7
9
5
6
1
