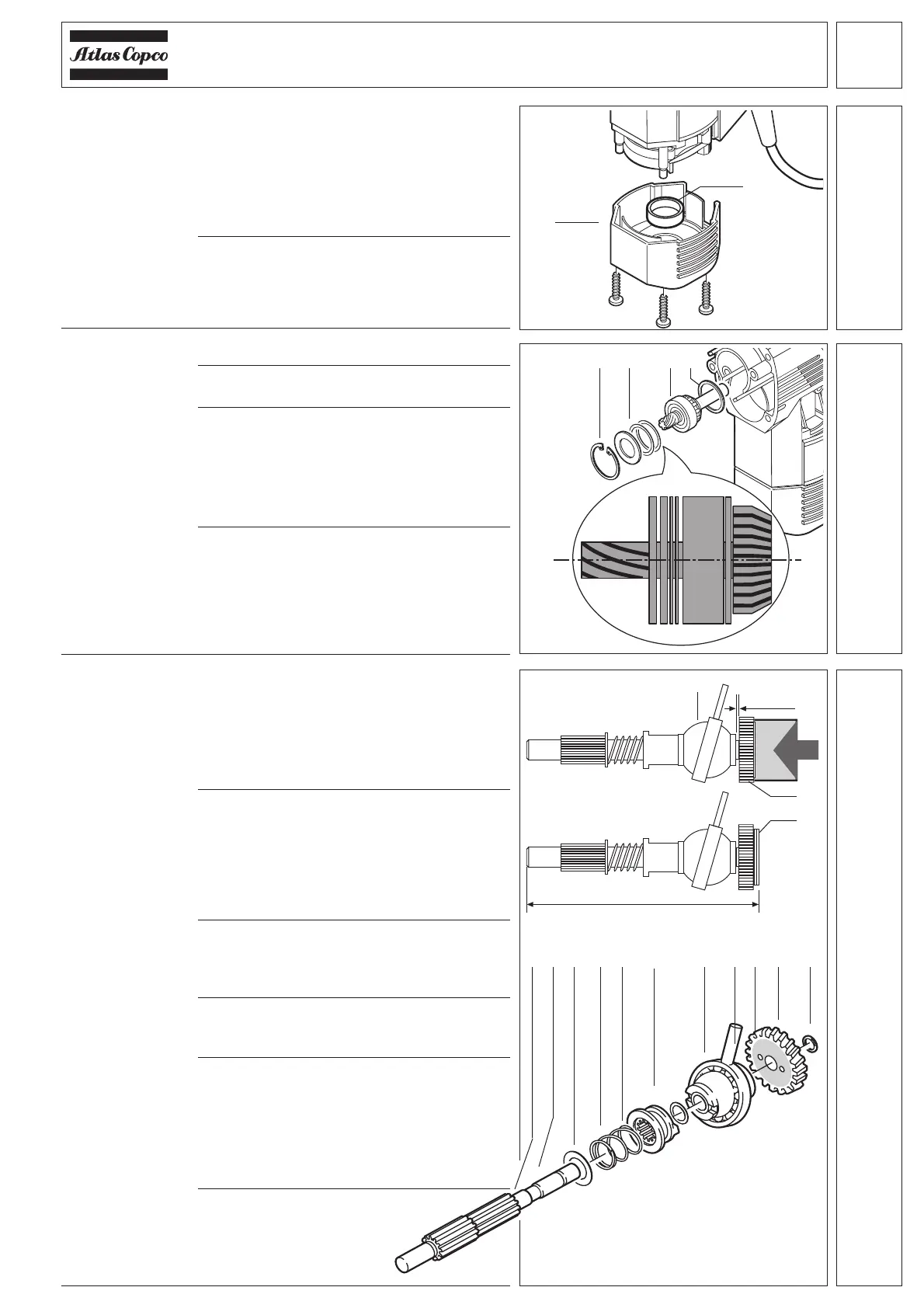

Repair Instruction No. 175.8/95
PHE 3, PHE 3X
PAGE
11
1 Fit the motor cover (1) (mind the right
position) and fasten it with the screws
(1,8 Nm).
F
Take care that the rubber cap (2) is stuck
in the motor cover. If necessary, apply glue
to the back of the rubber cap and stick it
in.
Mounting the
motor cover
Assembling the
back gear shaft
1 Insert the support ring (4).
2 Grease the angle drive (3) and insert it into
the motor housing by turning it slightly.
3 Insert the washers (2).
F
Depending on the tolerance of the
bearing, two or three washers can be
needed. For assembly, use the same
amount of washers as have been
removed when dismantling.
4 Insert the locking ring (1).
Assembling the
angle drive
3 421
7
4 5 6 7 81 2 910 3
1
2
3
8
1
2
6
11
Illustration A
Illustration B
F
From the date of manufacture 12/95 a
thrust bearing is integrated in the gear
wheel (2). All gear wheels manufactured
before that date do not contain needle
bearing (9) and disk (3).
1 Push the following parts onto the back
gear shaft (4) in this order:
- washer (5)
- spring (6)
- coupling box (7)
- washer (8)
- tumble drive (1)
2 Press on the gear wheel (2) with a
distance of 0.05 mm to the tumble drive
(1) (illustration A). The smooth surface
must face the tumble drive (1).
3 Lightly grease the thrust bearing (10) and
fit it together with the disk (9) to the gear
wheel (2).
4 Fit the disk (3) and check the
distance “X” (illustration B):
F
If the distance is more than
100.5 mm, do not fit the disk (3).
F
If the distance is less than 100.5 mm
fit another disk (3) and check the
distance again.
3 Insert the locking ring (11).
