Repair Instruction No. 175.8/95
PHE 3, PHE 3X
PAGE
10

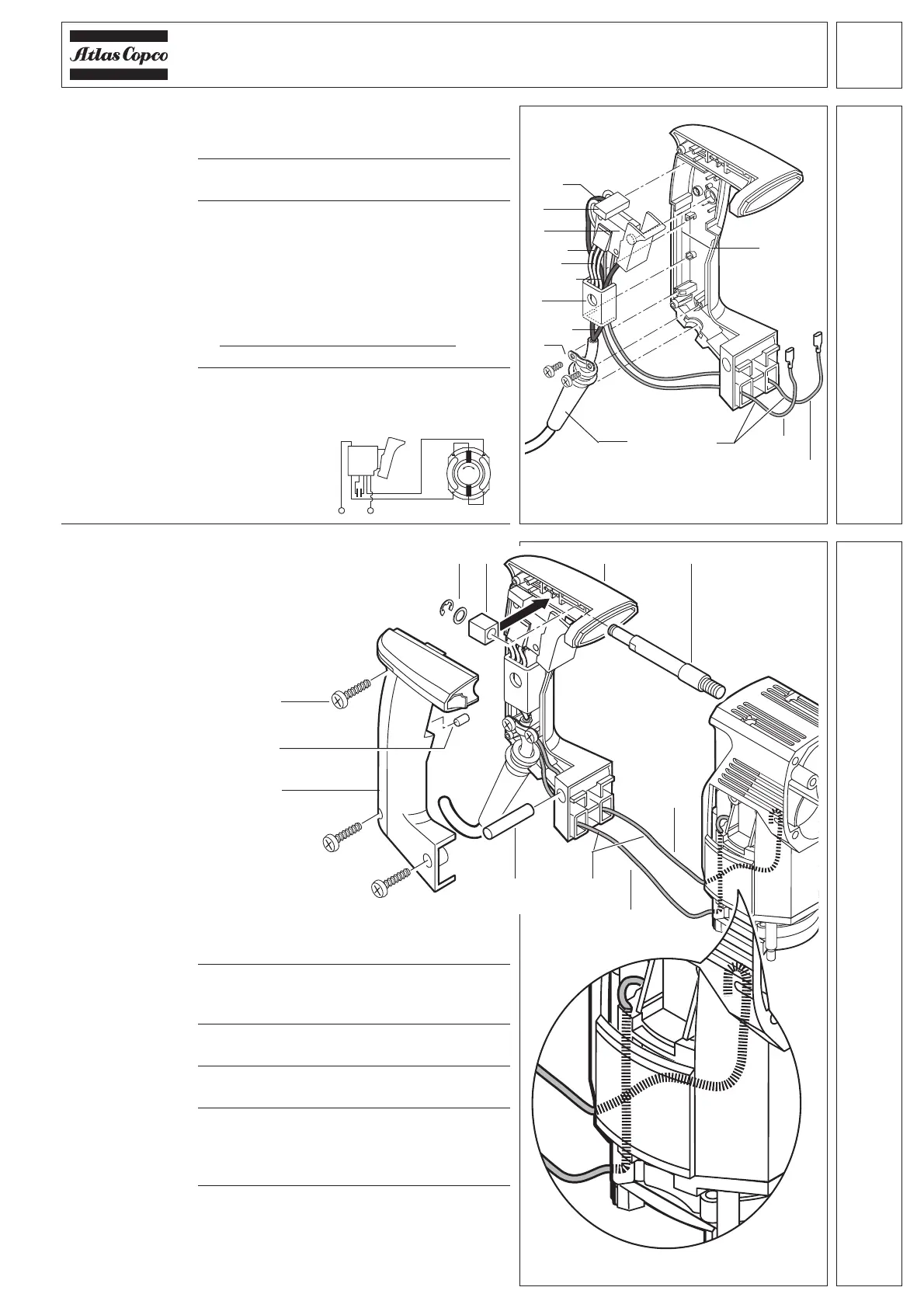

1 Screw the handle bolt (1) into the housing
(10 Nm).
2 Push the handle (6) over the bollt and fix
the AVS-rubber (4) with the washer and
the locking ring (5).
3 Insert the silicone buffer (3) into the
handle cover.
4 Fasten the handle cover (2) with the
screws (1,2 Nm).
5 Lead the field supply cables (8) through
the channels of the field housing (as
shown in illustration) and connect them
with the field (diagonally).
6 Fasten the handle with the bolt (7). Press
in the bolt or knock it in with a rubber
hammer.
Mounting the
handle
1 Connect all cables with the switch as
shown in illustration resp. wiring
diagram.
2 Push the field cables (6) through the
handle as shown in illustration.
3 Insert the switch (2), the capacitor (1),
the cooling plate with triac (3) (from date
of manufacture 03/96 into the provided
relief (7)) and take care that the cables
are fitted properly.
Lay the capacitor cable to the side of the
switch, and lay the field supply cables (6)
underneath the power supply cable in the
area of the strain relief.
4 Fasten the strain relief (4) with screws
(1 Nm).
Assembling the
electrical parts
2
6
1
4
3
4
5
7
5
A1
E1
E2
A2
213
2 4
5
1
98
6
7
3
yellow
black
yellow
black
yellow
blue
black
brown
blue
