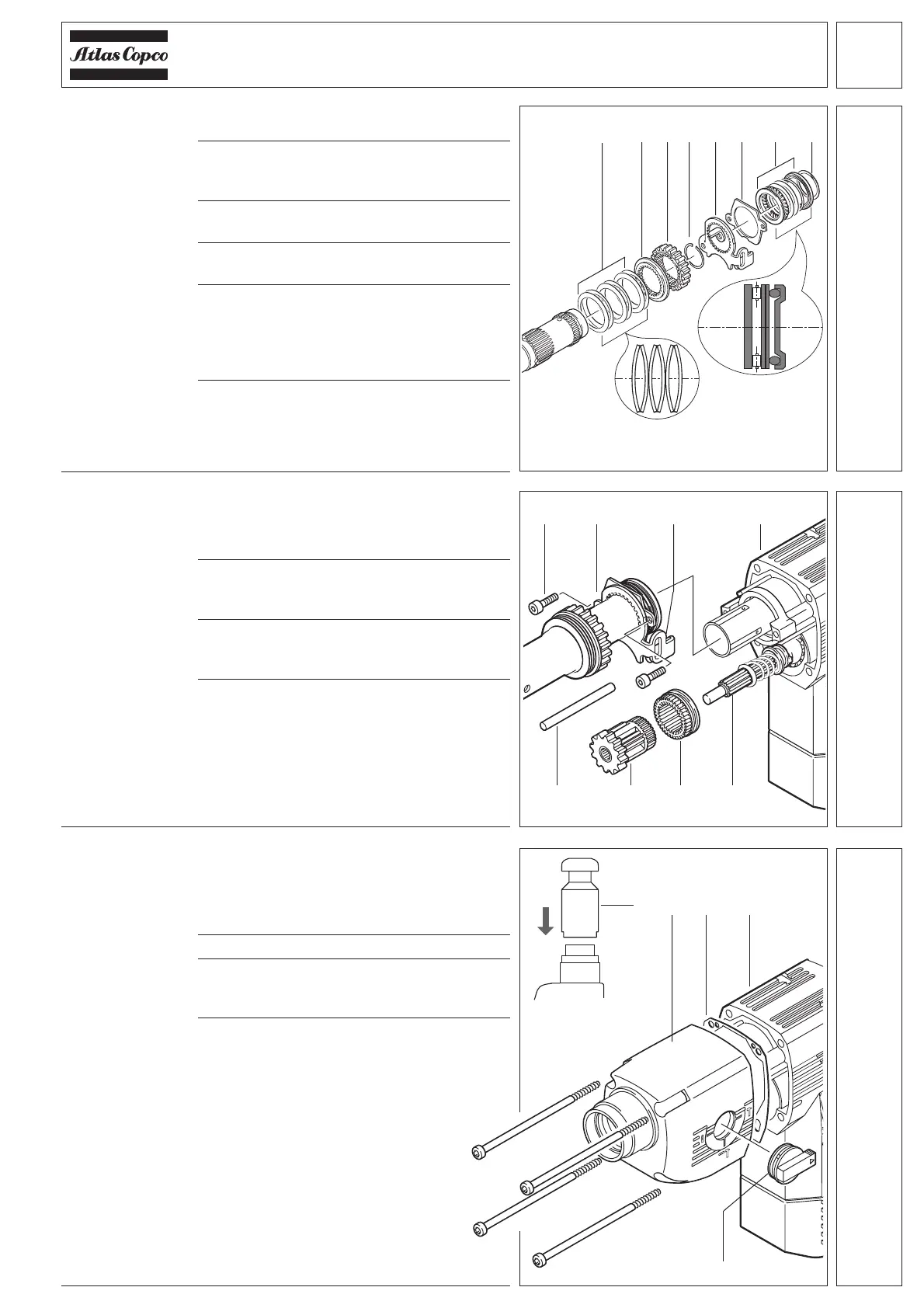

Repair Instruction No. 175.8/95
PHE 3, PHE 3X
PAGE
13
5
2 431
14
1 2 4
5
6 7 8
1
3
3
Assembling the
spindle
(mounting the
outer parts)
1 Mount the disk springs (1) with the
bulgings head-on (see Illustration).
2 Mount the clutch (the ratchet (2) with
indentations against the toothing of the
spindle wheel (3)).
3 Fit the locking ring (4) and press it on
against the pressure of the disk springs.
4 Mount the locking slide (5) and the
retaining clip (6).
5 Mounting the rear thrust bearing (7):
- profile ring with damper-O-ring
- two compensating washers
- thrust bearing
- washer
6 Secure the rear thrust bearing (7) with the
special locking ring (8).
1 Fit the spindle (2) to the motor housing (4)
and fasten it with two screws (1) (6 Nm,
additionally secure it with screw locking
device).
2 Push the ring gear (7) over the back gear
shaft (8) and let it engage in the locking
slide (3).
3 Push the planetary gear (6) onto the back
gear shaft and fit them into the ring gear
(7).
4 Push the straight pin (5) through the
locking slide (3) and insert it into the
motor housing (4).
Mounting the
spindle
1 Insert the sleeve (1) (service tool No.
4931 5990 38) into the gear housing (2)
(the sleeve protects the rotary shaft seal
in the gear housing from damage during
assembly).
2 Fit the gasket (3) to the motor housing (4).
3 Fasten the gear housing (2) to the motor
housing (4) and fix it with screws (2,5+5
Nm).
4 Fit the switch lever (5) (mount it in the
"hammer" position, the pin must grasp the
elongated hole of the locking slide).
Mounting the
gear housing
3
456
278
1
12
