Repair Instruction No. 175.8/95
PHE 3, PHE 3X
PAGE
14
9678345 210
2
1
1
6
12 3
5
1
4
1
7

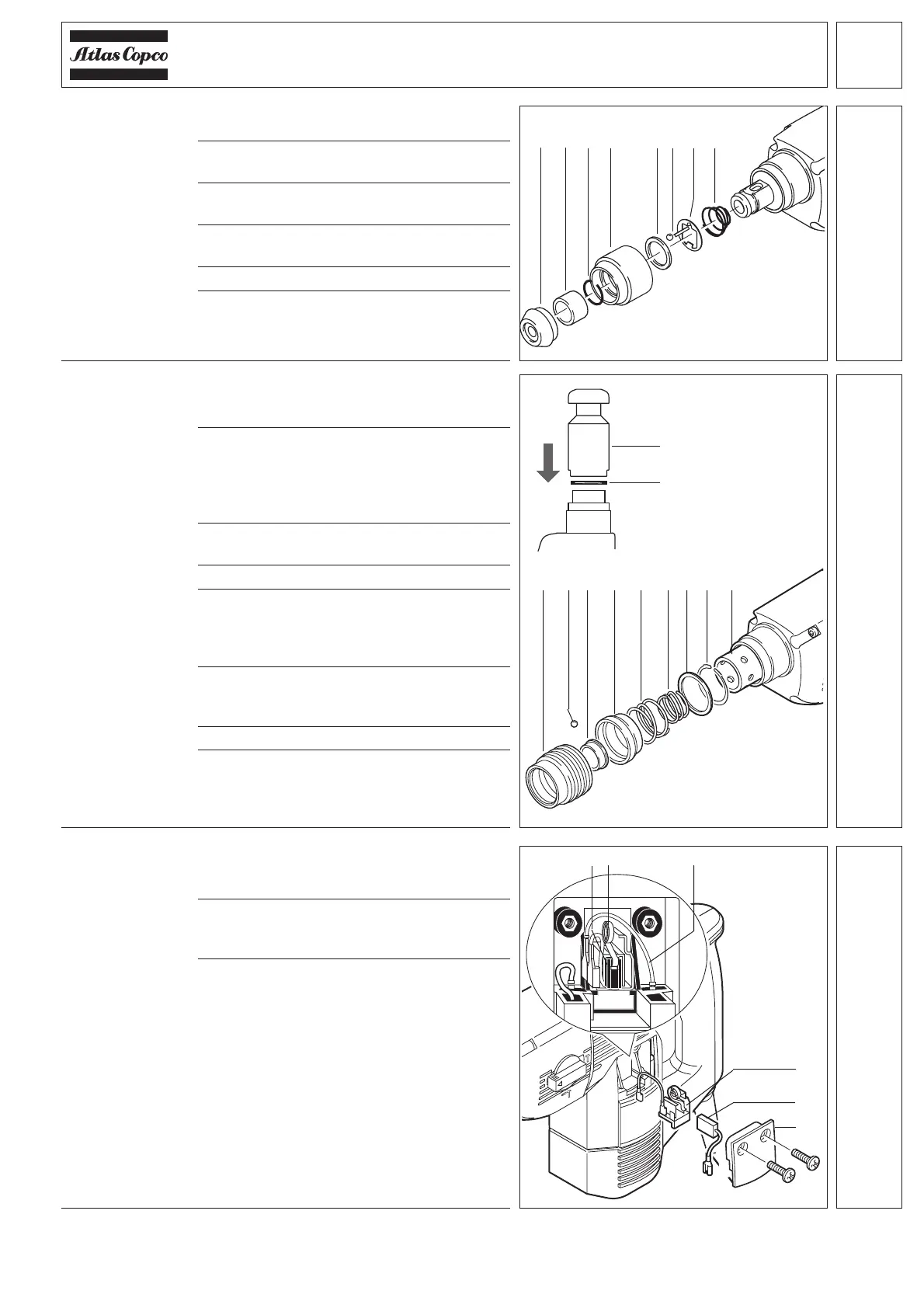

1 Insert the spring (8) and the retaining
disk (7).
2 Depress the retaining disk (7) and insert
the ball (6).
3 Fit the retaining ring (5) and the sliding
sleeve (4).
4 Depress the sliding sleeve and insert the
seal ring (3) into the pass.
5 Fit the spacer (2).
6 Push down the sliding sleeve and fit the
rubber (1).
Mounting the
SDS-plus
Reception
(applicable for
PHE 3)
1 Press in the seal ring (2) with aid of a
sleeve (1) (service tool No. 4931 5990 38)
until it engages.
2 Fit the following parts in this order:
- washer (9)
- inner spring (8)
- outer spring (7)
- locking ring (6)
3 Depress the locking ring (6) and insert the
balls (4).
4 Insert the ejector ring (5).
5 Depress the locking ring (6) (take care that
the balls cannot fall out) and press in the
ejector ring (5) with a used SDS-plus
adapter.
F
Press a locking ring into the spindle in
order to secure the ejector when mounting
the locking sleeve (3).
6 Fix the locking sleeve (3).
7 Remove the locking ring fitted too secure
the ejector.
Mounting the
FIXTEC-
reception
(applicable for
PHE 3 X)
1 Insert the brush holder (4) into the
housing and connect the cable (3) with
the field.
2 Insert the carbon brush (1) into the brush
holder and put the spring (2) onto the
carbon brush. Fit the flat plug.
3 Fasten the service cover (5) with screws.
Mounting the
carbon brushes
Carry out a test run and check for strange noises.
Carry out an electrical examination. (See chapter Electrical and Mechanical Test Instruction).
Test run and
electrical
examination
1
5
12 53 4
786
