Repair Instruction No. 175.8/95
PHE 3, PHE 3X
PAGE
8
D
A
B
E
E
E
G
H
I
K
M
N
O
P
Q
F
F
C
S
T
U
L
Before assembly submit all relevant parts to an electrical test (see chapter Electrical and Mechanical
Test Instruction).
At each maintenance the tool must be lubricated as shown in the lubrication chart. After having
dismantled the entire tool remove the used grease completely and replace it by new grease. Please
pay attention to the following lubrication chart:
Electrical test
Lubrication
Bauteil Bezeichnung Fettart Menge
A Spindle wheel toothing Darina 5g
B Hollow of back gear, spindle sleeve Darina 14g
D Toothing of back gear Tivela 8g
E O-rings Darina 1g
F Needle bearing Darina je 1g
G Porous bearing boring Darina 1g
H Spindle sleeve thrust bearing Tivela 1g
I Plunger outside Tivela 0,5g
K Cylinder inside Tivela 2g
L Spindle sleeve outside Tivela 2g
M Cylinder outside Darina 2g
N Cylinder bolt Darina 0,5g
O Striker Darina 0,5g
P Tumble drive boring Darina 0,5g
Q Gear sleeve inside and outside Darina 4g
S Ratchet/spindle wheel Darina 1g
T Angular wheel Darina 4g
U Thrust bearing Darina 2g
The service set contains tubes with grease (Darina, Tivela). All items listed above bust be lubricated
with the stated amount of grease. With the remainder of the Darina-tube evenly lubricate the gear
box and the spindle sleeve.

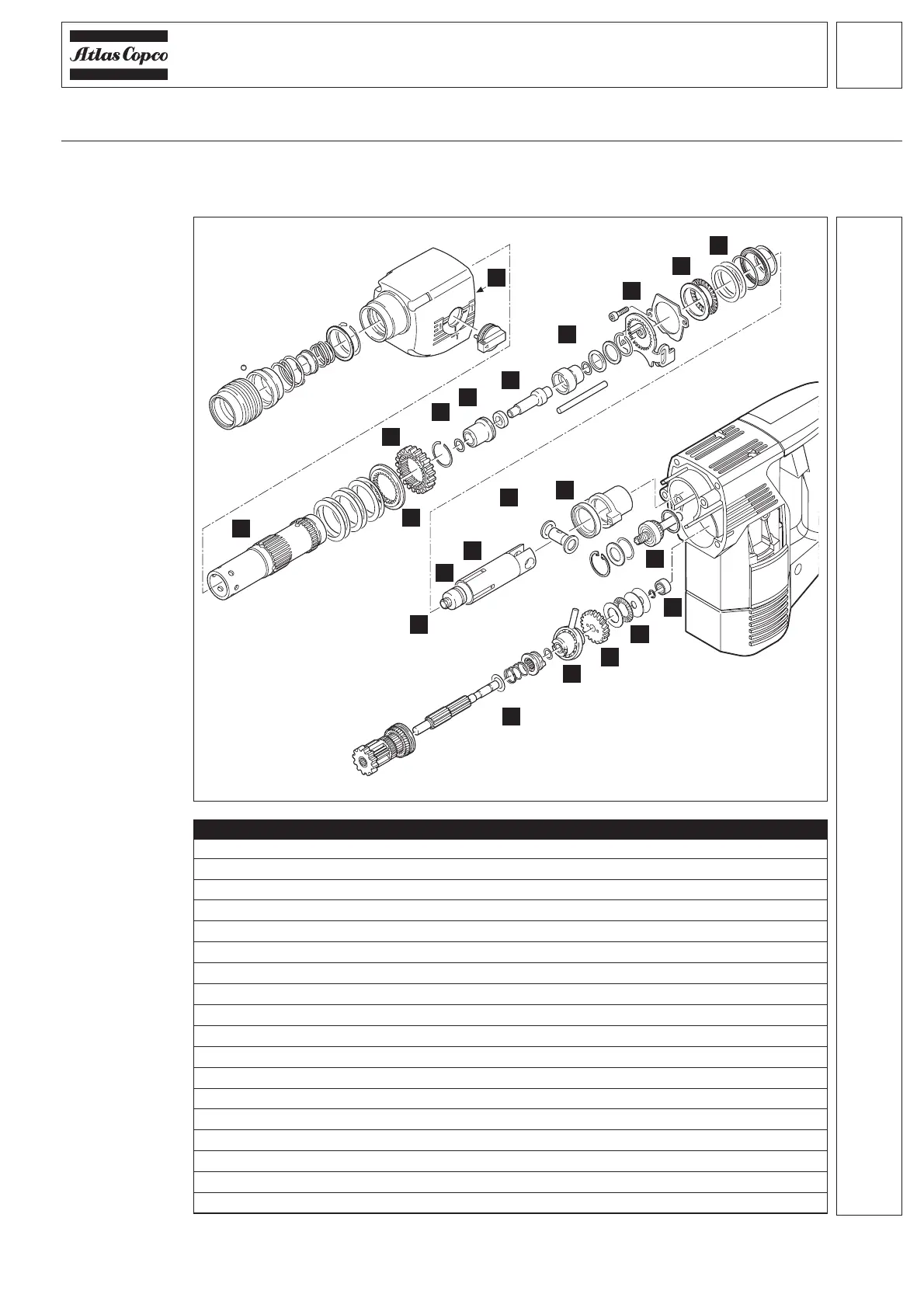

Illustration: PHE 3 X
