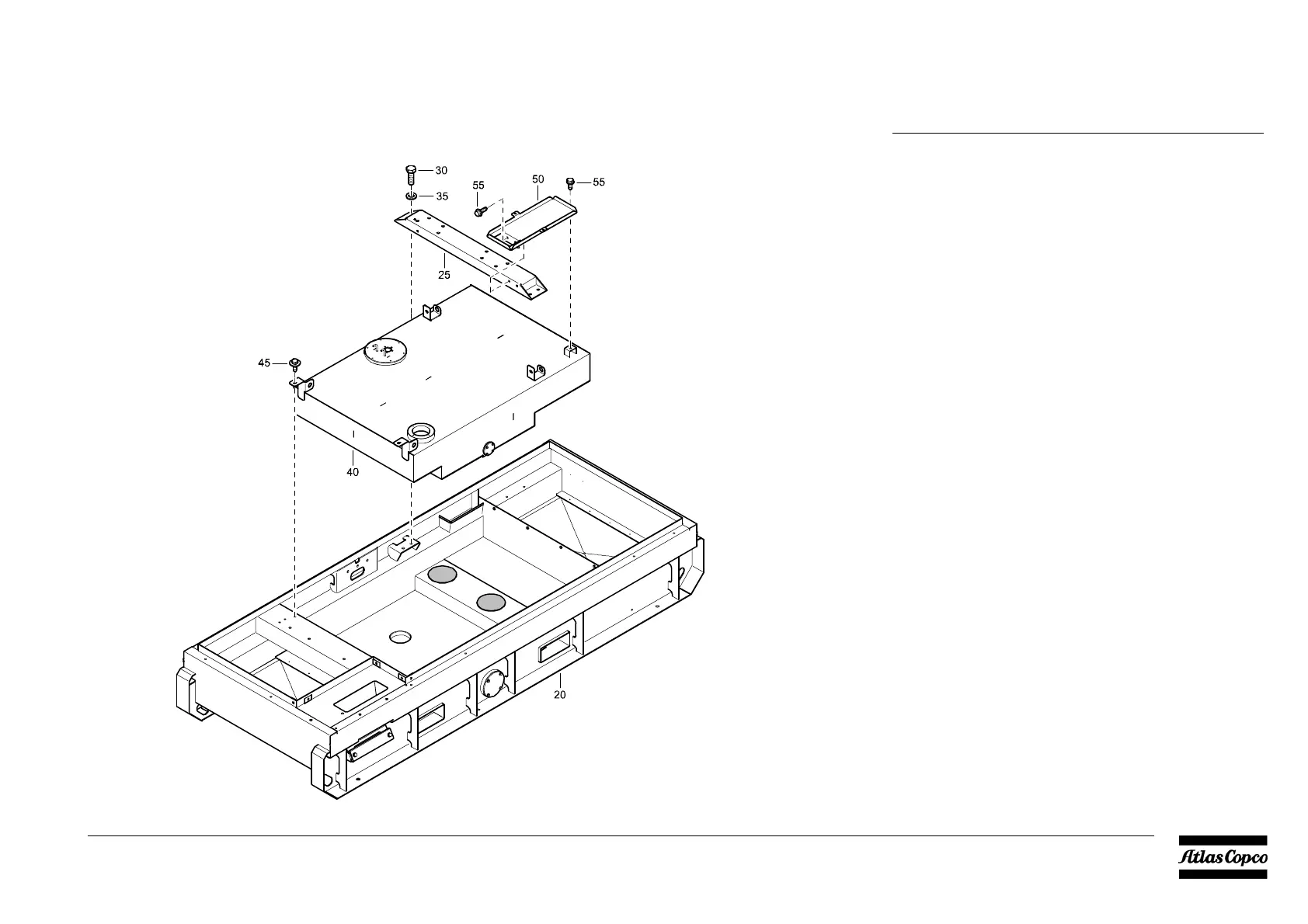

FRAME AND MOUNTS - STANDARD

REF PART NUMBER DESIGNATION QTY

- 1626 1413 90 FRAME AND MOUNTS(From page 29)

•20 1626 1413 81 FRAME 1

(For details see page 53)

•25 1626 1700 01 SUPPORT ENGINE 1

•30 0147 1401 03 HEX. HEAD SCREW 4

•35 0301 2358 00 PLAIN WASHER 4

•40 1626 2343 81 TANK FUEL 1

(For details see page 54)

•45 1615 5664 00 HEX. HEAD SCREW 4

•50 1626 2194 01 SUPPORT 1

•55 1619 2766 00 HEX. HEAD SCREW 3
