- 43 -

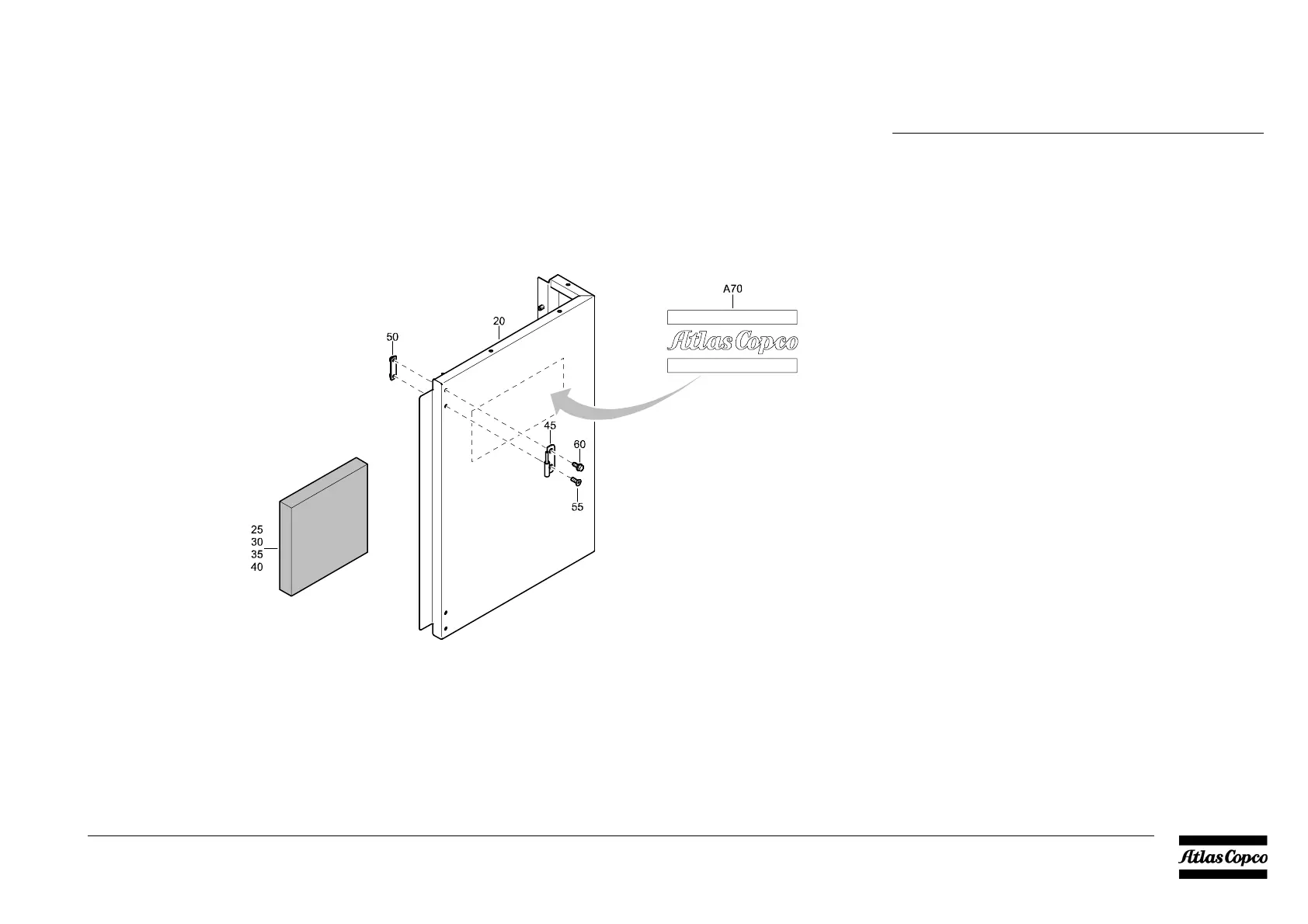

CORNER ASSEMBLY - RIGHT - STANDARD

REF PART NUMBER DESIGNATION QTY

- 1626 1729 81 CORNER ASSY. RIGHT(From page 30)

•20 1626 1729 01 CORNER 1

••A70 0690 1140 01 HOUSE MARK 1

•25 - INSULATION 1

SILENCING FOAM (50 mm)

•30 - INSULATION 1

SILENCING FOAM (50 mm)

•35 - INSULATION 1

SILENCING FOAM (50 mm)

•40 - INSULATION 1

SILENCING FOAM (50 mm)

•45 1604 3430 00 HINGE 2

•50 1615 5684 00 BRACKET 2

•55 0216 1324 03 HEX SOCK. SCREW 2

•60 1619 2766 00 HEX. HEAD SCREW 2

- 1079 0003 33 SILENCING FOAM

2000 mm x 1500 mm x 50 mm

1626 1729 81_02

1626 1729 81/02
