- 16 -
Assembly
Light fixtures
Before using your light tower for the first time, attach
the light fixtures to the light tower mast (see Figure
2.1) and install wiring to the junction box (see Figure
2.2).
Tow hitch
DANGER
High voltage.
Contact with live wiring
inside junction box will cause
severe injury or death.
- Turn off power before
opening junction box.
- Only a qualified electrician
should connect wiring.
There are 3 options for tow hitch.
- Pintle hook
- 2-inch-ball
- Combo hitch for a 2-inch-ball and pintle hook
For combo hitch option only:
When the light tower ships from the factory, the tow
bar is set up to use the lunette ring for towing by a
vehicle with a pintle hook. To use a ball coupler,
follow the procedure below.
To reverse the tow hitch:
1. Remove the two large bolts that hold the tow hitch
to the draw bar.
2. Lift the hitch off the drawbar and rotate the hitch
end-to-end.
3. Return the hitch to the draw bar, making sure to
align the bolt holes.
4. Reinstall the bolts and tighten the nuts fully.

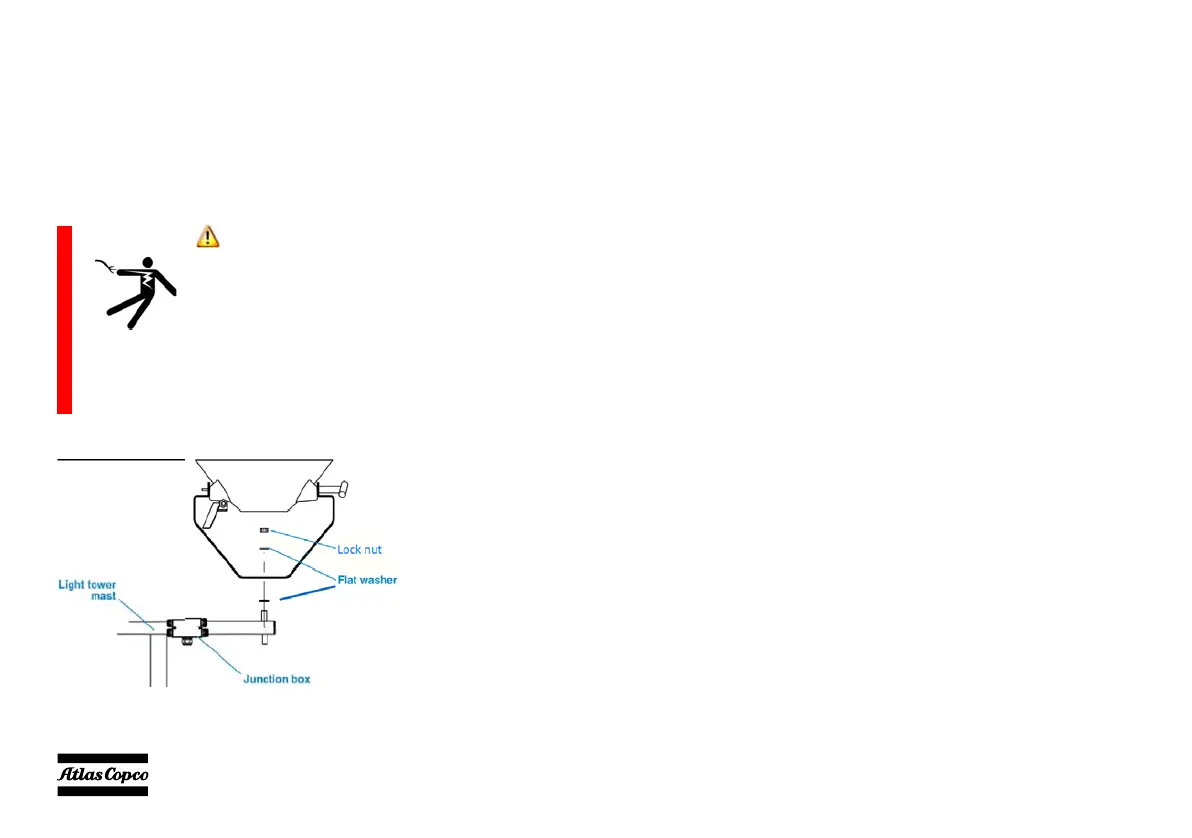

Figure 2.1 Light fixture assembly
