Operation
Safety
Before operating the light tower, read and be familiar
with this instruction manual.
Read and follow all safety instructions (see page 7).
Control panels
The light tower control panel comprises:
• Circuit breakers for engaging power
• An electrical receptacle for powering external
equipment (Option)
• A gauge to track engine use
• Key switch for starting and stopping the engine
and a glow-plug indicator for the engine’s start
coil
• For engine operating instructions, see page 24.

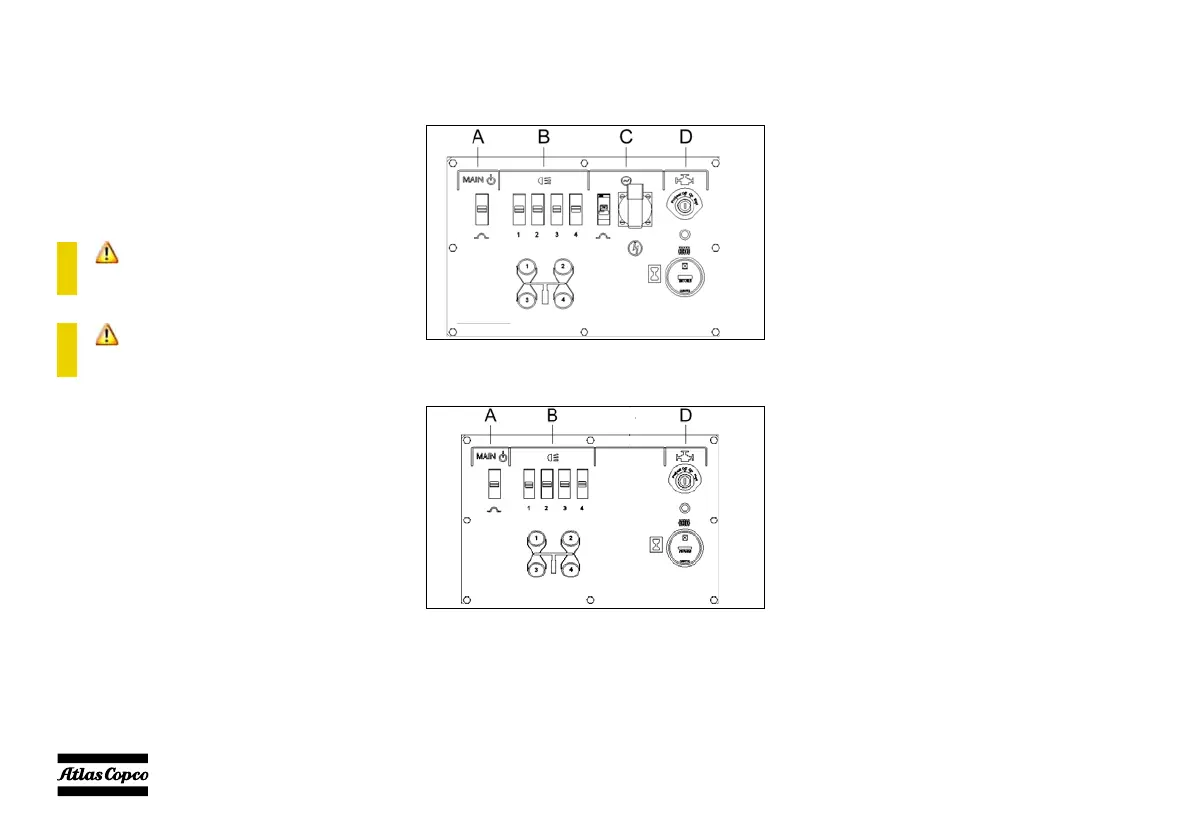

Figure 3.1 A Control panel for units with universal
socket.
Figure 3.1 B Control panel for units without
universal socket.
A - Main circuit breaker/power switch
B - Lamp circuit breakers/power switches
C -Electrical receptacle and breaker for external
power (Option)
D - Engine key switch and glow-plug indicator.
Hour meter
Towing and hoisting
Before towing
Before towing, prepare the light tower as follows.
1. Lower the light tower:
a Verify the light tower mast is in the down position
and secured in place with the horizontal-lock pin
(see Figure 3.2). To lower the tower, see page 23.
b If necessary, attach a red flag to the end of the
mast.
2. Check tires, wheels, and lights:
a Check tires for wear. Replace worn tires.
b Verify tires are fully inflated to the proper
pressure.
c Verify that all wheel lugs are in place and
tightened. Do not tow the trailer if a wheel lug is
missing.
d Ensure the trailer brake lights, taillights, and
directional (turn) indicators are hooked up and
functioning properly.
3. Check the tow hitch and safety chains:
a Ensure the tow hitch and coupling on the tow
vehicle are rated for weight equal to or greater
CAUTION
Do not run unit with door opened.
CAUTION
Do not run unit in rainy day.
