- 22 -

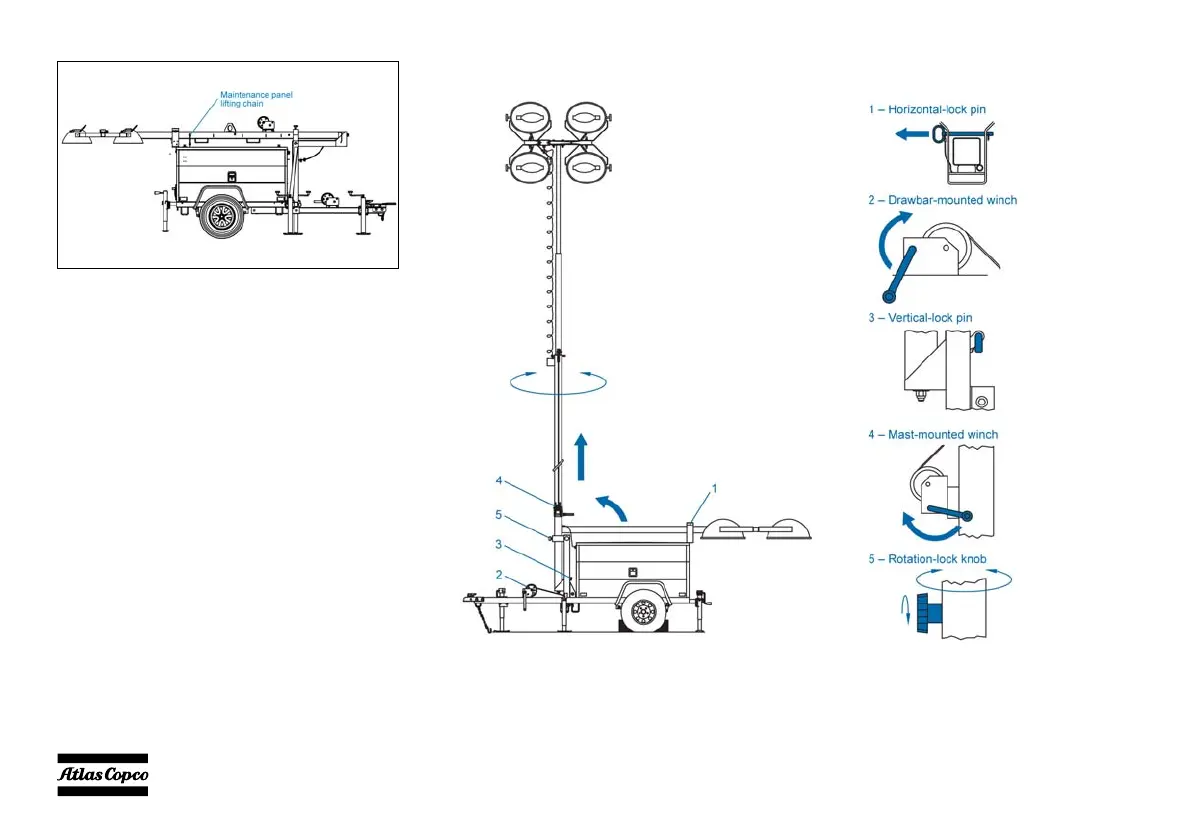

Figure 3.4 Maintenance panel lifting chain
2. To raise the tower, see Figure 3.5 and follow these
instructions:
a Remove the horizontal-lock pin from the transport
cradle.
b Rotate the handle of the drawbar-mounted winch
to tighten the cable and raise the light tower mast.
c Continue turning the handle until the mast is in the
vertical position and the spring-loaded vertical-
lock pin automatically snaps into place.
d Ensure the vertical-lock pin is secure and locked
in place.
e Rotate the handle of the mast-mounted winch to
tighten the cable until the lights are at the desired
height.
f To rotate the mast, loosen the rotation-lock knob
and use the handle on the mast to rotate the mast
either left or right.
Figure 3.5 Raising the tower
