Atlas Copco SECOROC COP 34 User Manual

3
Technical data
COP 34 COP 44 COP 54 COP 64.2 COP 64.3 COP 84.2L COP 84
Dimensions and weights
Length without drill bit, mm (in) ............. 1025 (40.4) 1034 (40.7) 1145 (45.1) 1308 (51.5) 1258 (49.5) 1338 (52.7) 1431 (56.3)
with optional thread, mm (in) ............. 1169 (46.0)
Length excl. thread, mm (in)................... 954 (37.5) 958 (37.7) 1069 (42.1) 1213 (47.8) 1163 (45.8) 1230 (48.4) 1323 (52.1)
Outside diameter, mm (in) ...................... 83.5 (3.3) 98 (4.0) 120 (4.7) 142 (5.6) 142 (5.6) 160 (6.3) 178 (7.0)
QHD design, mm (in) .......................... 126 (4.9) 146 (5.8) 146 (5.8)
Piston diameter, mm (in) ........................ 68 (2.7) 78 (3.1) 100 (3.9) 120 (4.7) 120 (4.7) 120 (4.7) 153 (6.0)
Piston weight, kg (lbs)............................4,83 (10.7) 7,1 (16) 12,5 (28) 20,5 (45) 20,5 (45) 20,5 (45) 37.3 (82)
Stroke, mm (in).......................................105 (4.1) 115 (4.5) 115 (4.5) 115 (4.5) 115 (4.5) 115 (4.5) 125 (4.9)
Top sub thread
(standard) API Reg .............................2
3
/
8
2
3
/
8
2
3
/
8
3
1
/
2
3
1
/
2
4
1
/
2
4
1
/
2
(optional) API Reg .............................. 3
1
/
2
Wrench fl at on top sub, mm (in)............. 65 (2.6) 65 (2.6) 65 (2.6)(2
3
/
8
) 102 (4.0) 102 (4.0) 120 (4.7) 140 (5.5)
95 (3.7)(3
1
/
2
)
102
(4.0)(3
1
/
2
QHD)
Weight without drill bit, kg (lbs).............. 27,1 (60) 38 (84) 57 (126) 95 (209) 96 (211) 139 (306) 158 (348)
QHD design, kg (lbs)........................... 67 (148) 109 (240) 109 (240)

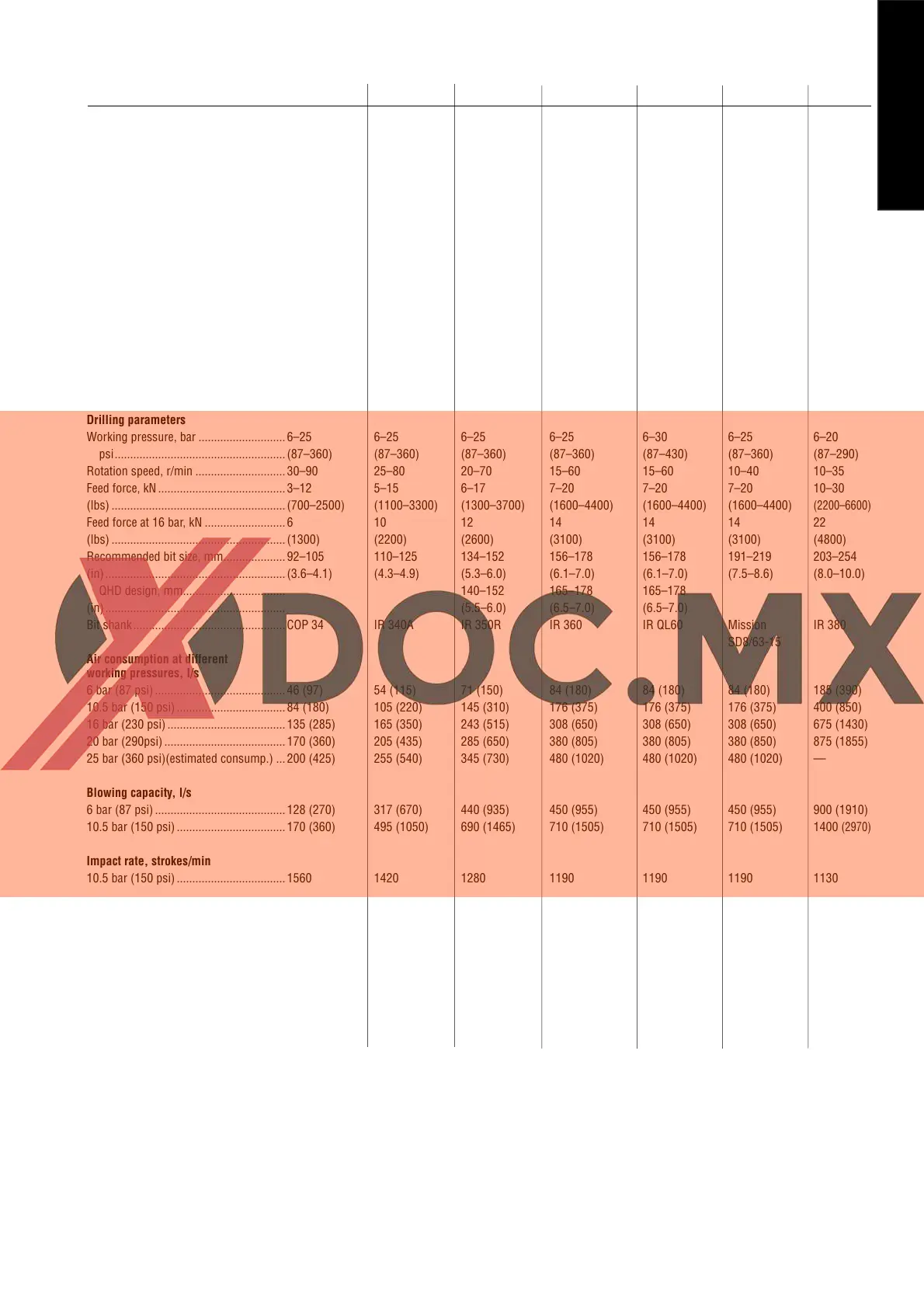

Drilling parameters
Working pressure, bar ............................ 6–25 6–25 6–25 6–25 6–30 6–25 6–20
psi.......................................................(87–360) (87–360) (87–360) (87–360) (87–430) (87–360) (87–290)
Rotation speed, r/min .............................30–90 25–80 20–70 15–60 15–60 10–40 10–35
Feed force, kN.........................................3–12 5–15 6–17 7–20 7–20 7–20 10–30
(lbs) ........................................................(700–2500) (1100–3300) (1300–3700) (1600–4400) (1600–4400) (1600–4400) (2200–6600)
Feed force at 16 bar, kN ..........................6 10 12 14 14 14 22
(lbs) ........................................................(1300) (2200) (2600) (3100) (3100) (3100) (4800)
Recommended bit size, mm....................92–105 110–125 134–152 156–178 156–178 191–219 203–254
(in)..........................................................(3.6–4.1) (4.3–4.9) (5.3–6.0) (6.1–7.0) (6.1–7.0) (7.5–8.6) (8.0–10.0)
QHD design, mm................................. 140–152 165–178 165–178
(in).......................................................... (5.5–6.0) (6.5–7.0) (6.5–7.0)
Bit shank.................................................COP 34 IR 340A IR 350R IR 360 IR QL60 Mission IR 380
SD8/63-15
Air consumption at different
working pressures, l/s
6 bar (87 psi) .......................................... 46 (97) 54 (115) 71 (150) 84 (180) 84 (180) 84 (180) 185 (390)
10.5 bar (150 psi) ................................... 84 (180) 105 (220) 145 (310) 176 (375) 176 (375) 176 (375) 400 (850)
16 bar (230 psi) ...................................... 135 (285) 165 (350) 243 (515) 308 (650) 308 (650) 308 (650) 675 (1430)
20 bar (290psi) ....................................... 170 (360) 205 (435) 285 (650) 380 (805) 380 (805) 380 (850) 875 (1855)
25 bar (360 psi)(estimated consump.) ...200 (425) 255 (540) 345 (730) 480 (1020) 480 (1020) 480 (1020) —
Blowing capacity, l/s
6 bar (87 psi) .......................................... 128 (270) 317 (670) 440 (935) 450 (955) 450 (955) 450 (955) 900 (1910)
10.5 bar (150 psi) ................................... 170 (360) 495 (1050) 690 (1465) 710 (1505) 710 (1505) 710 (1505) 1400 (2970)
Impact rate, strokes/min
10.5 bar (150 psi) ................................... 1560 1420 1280 1190 1190 1190 1130
16 bar (230 psi) ...................................... 1920 1680 1570 1450 1450 1450 1380
20 bar (290 psi) ...................................... 2160 1860 1740 1600 1600 1600 1540
25 bar (360 psi) ...................................... 2460 2100 1960 1810 1810 1810 —
Penetration rate in Swedish granite,
2200 bar, 30% SiO, mm/min
(Standardized laboratory test)
Bit size .................................................... 100 mm (4") 115 mm (4.5") 140 mm (5.5") 165 mm (6.5") 165 mm (6.5") 203 mm (8") 203 mm (8")
10.5 bar (150 psi) ................................... 295 (58) 310 (61) 320 (63) 290 (57) 290 (57) 210 (42) 375 (74)
16 bar (230 psi) ...................................... 520 (102) 510 (101) 515 (102) 525 (104) 525 (104) 360 (71) 625 (123)
20 bar (290 psi) ...................................... 720 (140) 640 (125) 640 (125) 665 (130) 665 (130) 455 (90) 800 (157)
25 bar (360 psi) ...................................... 955 (187) 800 (157) 800 (157) 840 (165) 840 (165) 570 (112) —
Performance fi gures are average values for new hammers at sea level.
Specifi cations and other data subject to alteration without prior notice.
