STa 6000 User Guide Introduction
9836 8243 01 Edition 3.1 17 (324)
SRTT-L
Torque measurement range: 0.1 ÷ 30 Nm
Torque static accuracy (from 20% to 100% of the transducer capacity): ± 0.25% of rated max.
transducer capacity
Overload capacity: 125% of rated max. transducer capacity
Temperature stability: 0.1% of capacity/10°C
Bridge resistance: 350 ohm
Operation humidity: 10-75% non-condensing
Operating temperature: 5 to 40°C

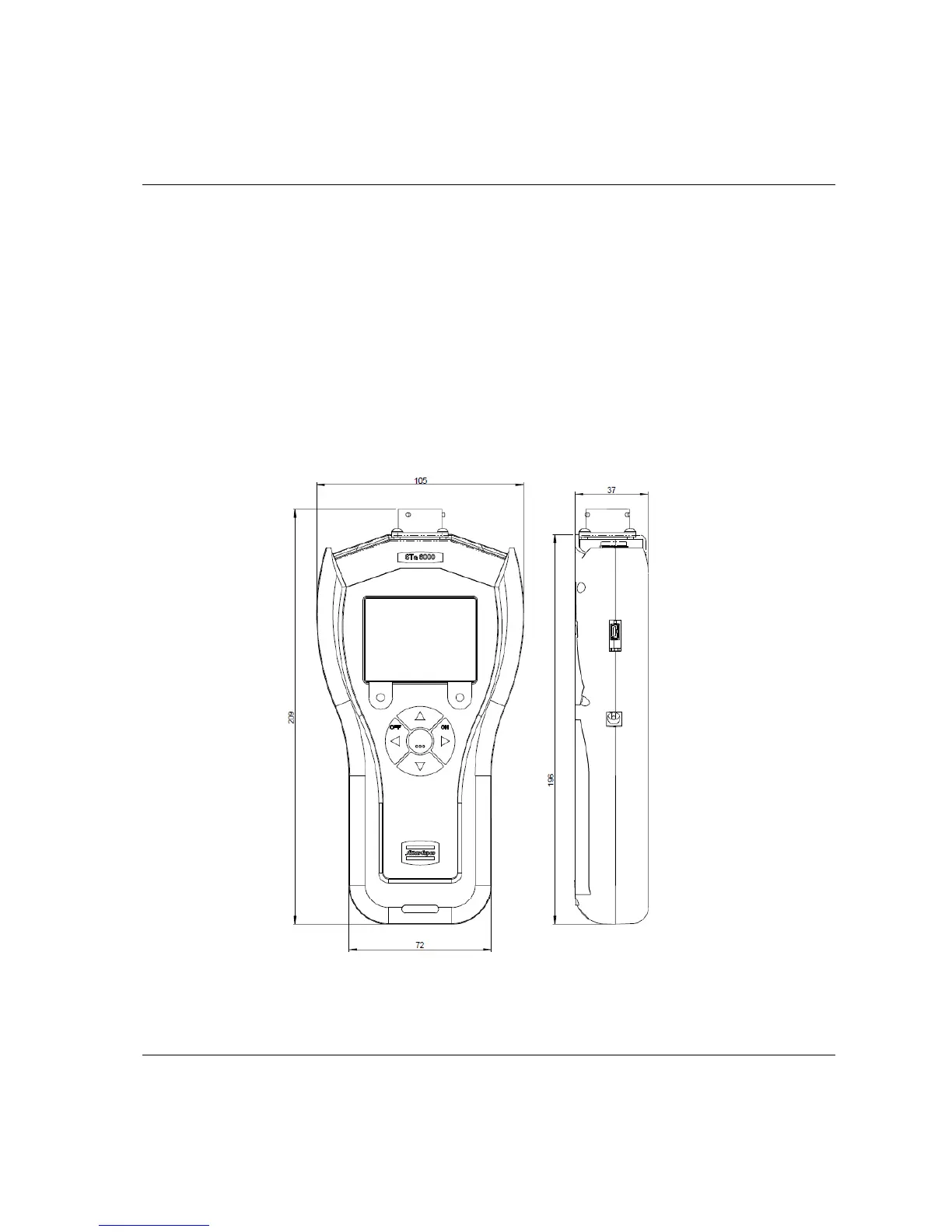

DIMENSIONS AND WEIGHT
Dimensions are in mm.
Max Weight (with battery): 500 g
