Atlas Copco XAHS 37 DD

16
Instruction Manual

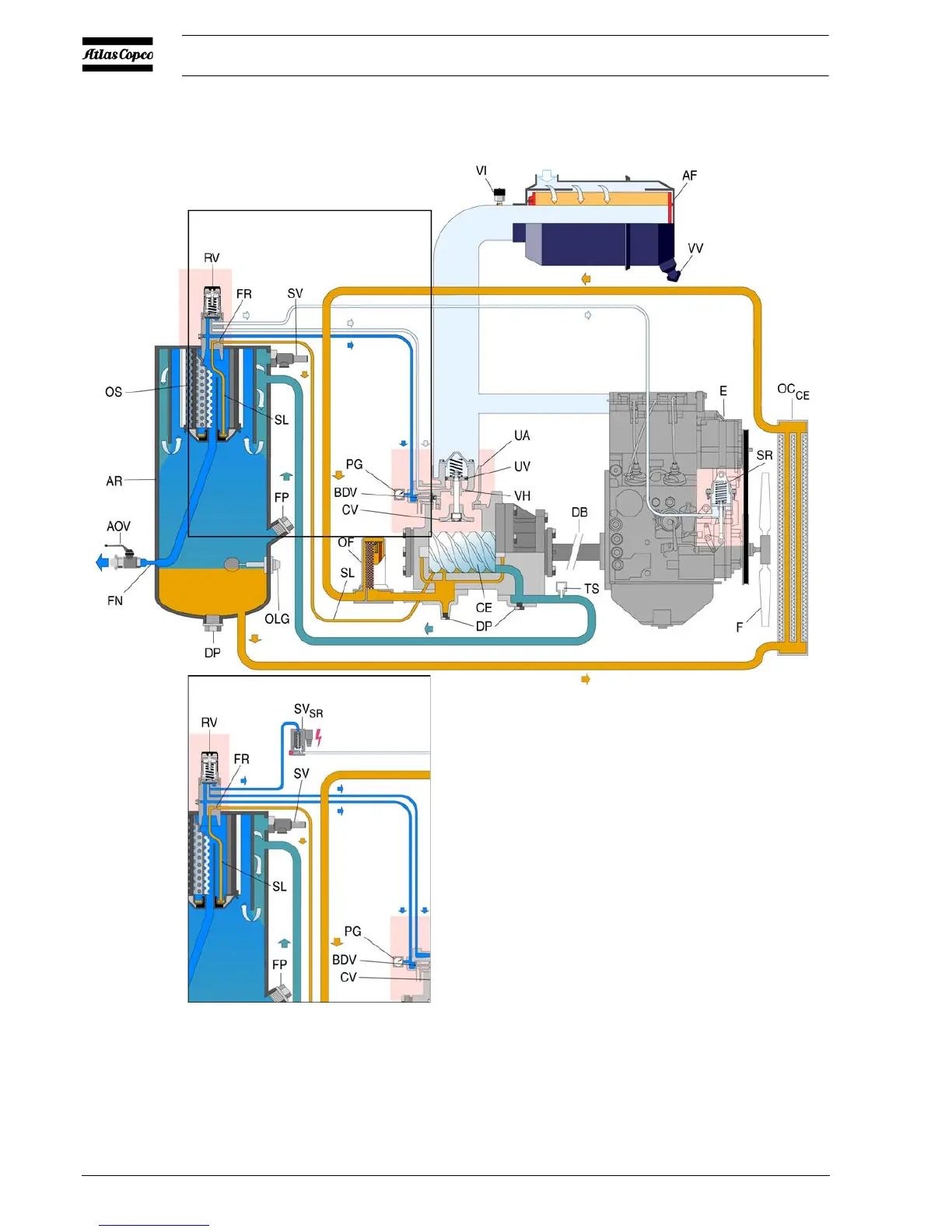

COMPRESSOR REGULATING SYSTEM
Fig. 2.3
With generator
Without generator
AF Air Filter
AR Air Receiver
AOV Air Outlet Valves
BDV Blow Down Valve
CE Compressor Element
CV Check Valve
DB Drive Belt
DP Drain Plug
E Engine
FFan
FN Flow Nozzle
FP Filler Plug
FR Flow Restrictor
OC
CE
Oil Cooler
(compressor element)
OF Oil Filter
OLG Oil Level Gauge
OS Oil Separator
PG Pressure Gauge
RV Regulating Valve
SL Scavenge Line
SR Speed Regulator
SV Safety Valve
SV
SR
Solenoid Valve
(Speed regulator)
TS Temperature Switch
UA Unloader Assembly
UV Unloader Valve
VH Vent Hole
VI Vacuum Indicator
VV Vacuator Valve
