- 77 -
AIR FILTERS ENGINE / COMPRESSOR
MAIN PARTS
CLEANING THE DUST TRAP
To remove dust from the dust trap squeeze the
vacuator valve (6) several times.
The instructions apply to one air filter and should be
repeated for both air filters engine and air filters
compressor.
1. Release the snap clips (1) and remove the dust trap
cover (2). Clean the inside of the cover.
2. Withdraw the filter element (4) and safety
cartridge (3) from the housing (5).
Discard the filter element when damaged.
A dirty safety cartridge (3) is an indication of a
malfunctioning filter element.
3. Reassemble in reverse order of dismantling.
4. Inspect and tighten all air intake connections.

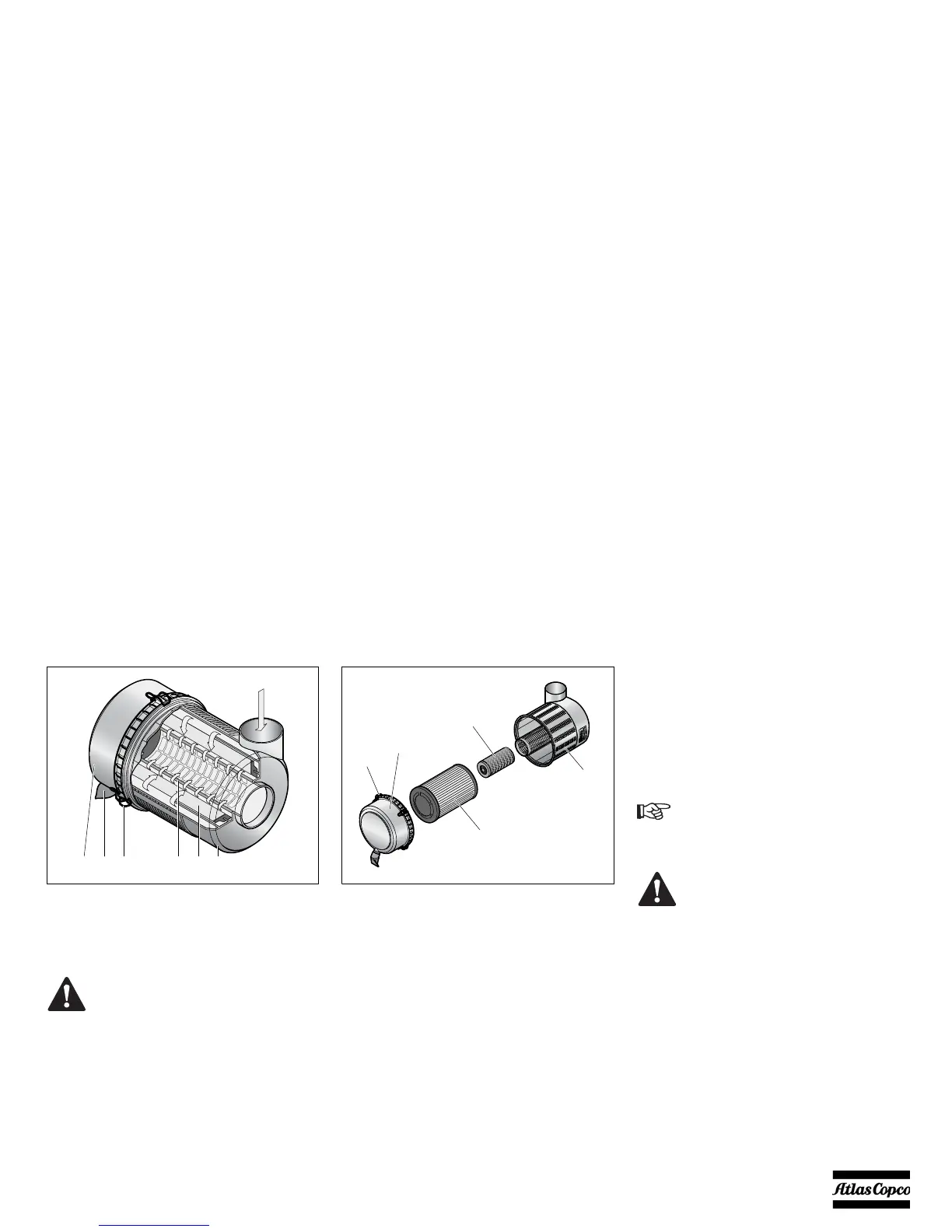

1. Snap clips (4x) 4. Filter element
2. Dust trap cover 5. Filter housing
3. Safety cartridge 6. Vacuator valve
The Atlas Copco air filters are specially
designed for the application. The use of
non-original air filters may lead to
severe damage of the engine and/or
compressor element.
Replace the filter element and the safety
cartridge at the same time. New elements
should be inspected for tears and
punctures before installation.
The safety cartridge cannot be cleaned.
