Atlas Copco XAS 127 Kd

- 31 -
Before starting open the air outlet valve(s) (AOV) and
push circuit breaker button (F1) once (open hood
first).
Circuit breaker button should now be in position B.
The circuit breaker button is a
protection against unintended starting
of the compressor.
(F1)

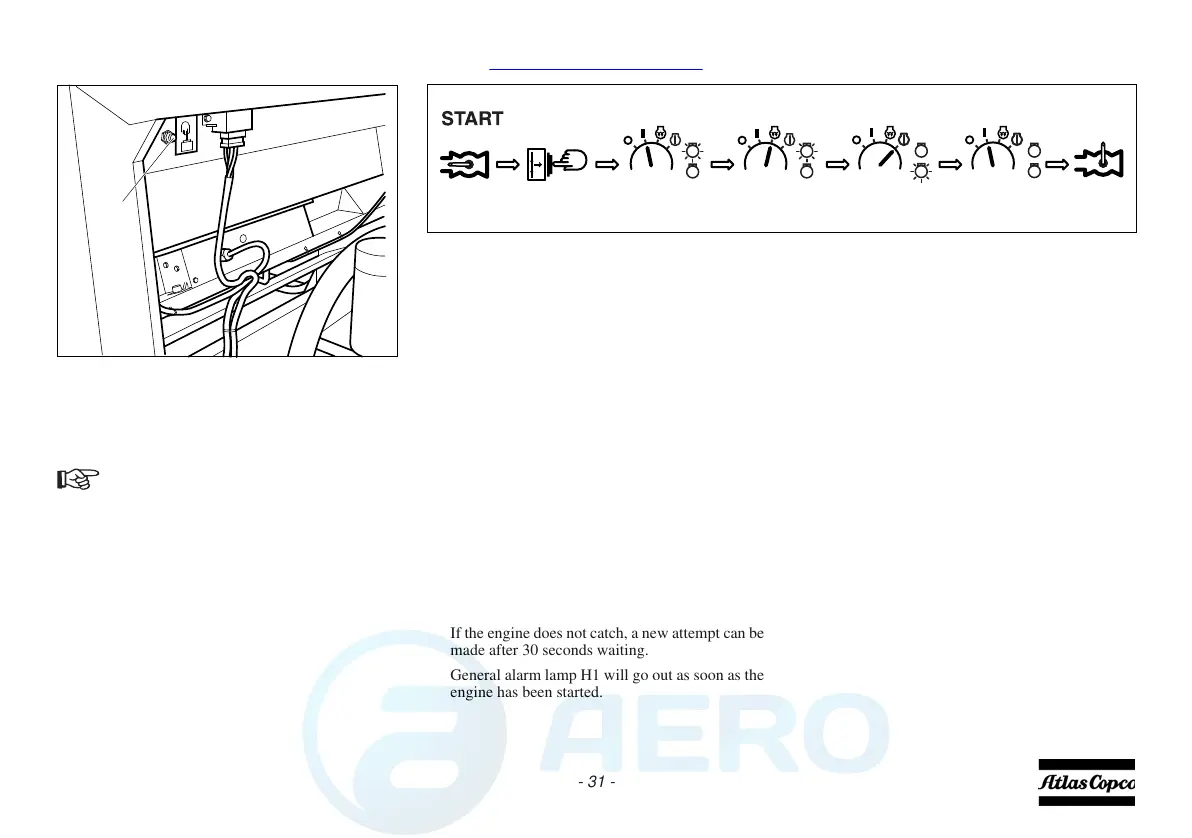

STARTING PROCEDURE
1. Open air outlet valve.
2. Press circuit breaker F1.
3. Turn start switch S1 clockwise to position 1, lamp
H2 (temperature alarm lamp) will go on.
4. To preheat turn the start switch S1 clockwise to
position 2 for max 20 sec.
Recommended preheating time:
20°C (68°F): 3 sec
0°C (32°F): 5 sec
-15°C (5°F): 10 sec
5. Turn start switch S1 further clockwise into
position 3.
The general alarm lamp H1 will go on.
The starter motor will set the engine in motion.
The maximum allowed starter time, where the
starter motor is running continuously is 20
seconds.
If the engine does not catch, a new attempt can be
made after 30 seconds waiting.
General alarm lamp H1 will go out as soon as the
engine has been started.
6. The start switch automatically springs back to
position 1.
Lamp H1 only will go on when the compressor
outlet temperature is too high.
7. Close the air outlet valve(s) (AOV).
0 - 20 sec
12 3 4 5 6 7
