Adjustments and servicing procedures

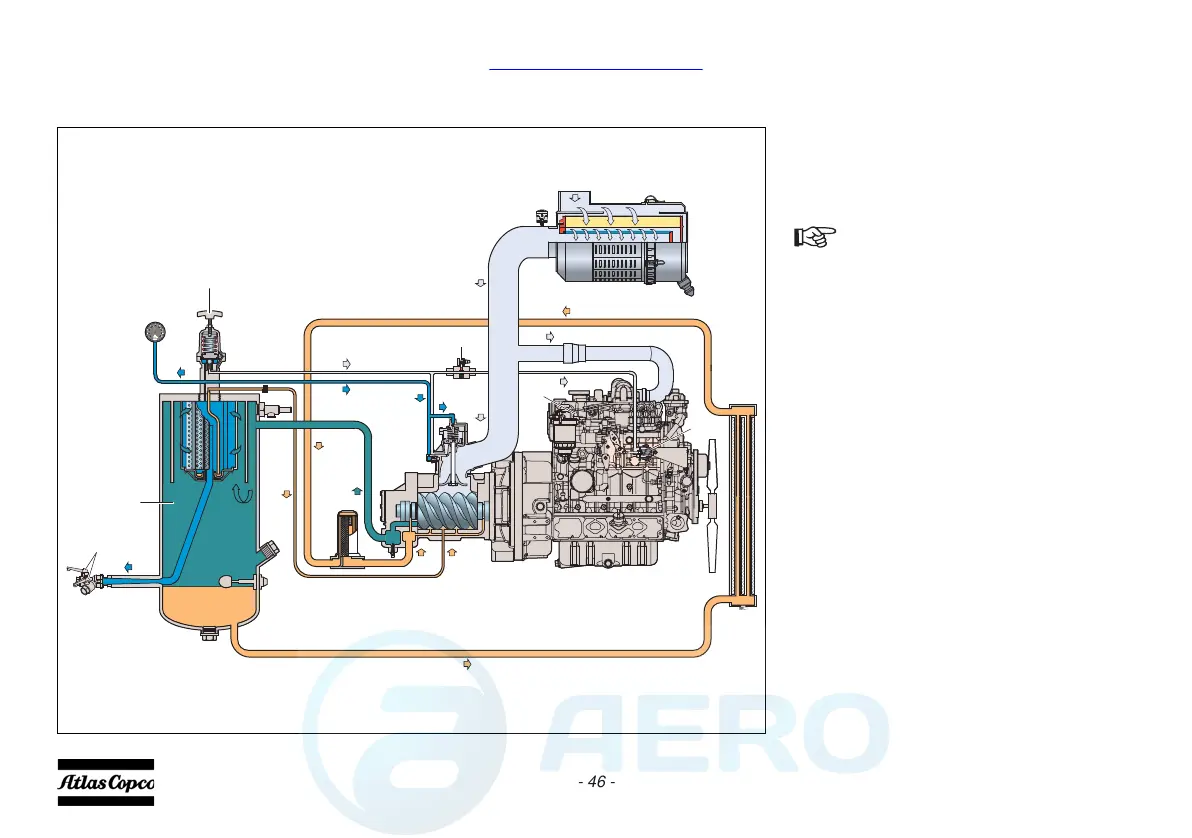

ADJUSTMENT OF THE CONTINUOUS PNEUMATIC REGULATING SYSTEM
The working pressure is determined by the tension of
the spring in the regulating valve (RV). This tension
can be increased to raise the pressure and decreased to
lower it by turning the adjusting wheel clockwise and
anti-clockwise respectively.
(SOV)
(AR)
(AOV)
(RV)
(SR)
(E)
The solenoid valve (SOV) is only present
at units equipped with a generator
(XA(S) 137 KdG - XA(S) 300 KD7G).
