- 27 -

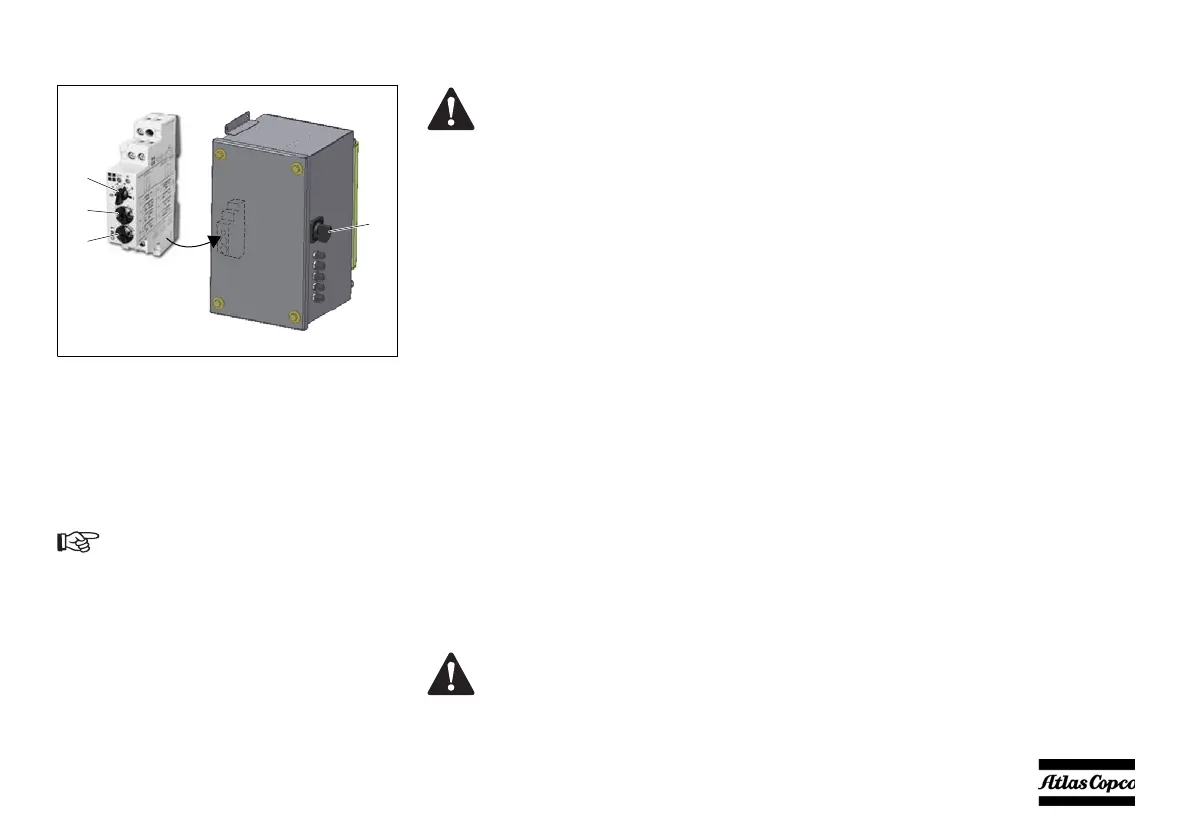

INTERNAL LIGHTING
The internal lighting circuit is equipped with a timer.
When the internal lighting is switched on with switch
(4), the timer is started. After a preset time the internal
light will be switched off automatically.
The timer is set by choosing a range with button (2)
(default: 1 h) and setting a factor with button (1)
(default: 0,2). This results in a lighting time of 12
minutes.
PREHEATER (OPTION)
DESCRIPTION HEATING OPERATION
When switched on the signal lamp in the mini-clock
control element is lit. The waterpump starts and after
a fixed programme with prerinsing and preheating,
combustion air fan, glow plug and fuel dosing pump
set combustion going. Once a stable flame has
formed, the glow plug is switched off by a timer.
Depending on the heat requirement, the heater wil
switch between three levels, LARGE, SMALL and
OFF (control interval). The temperature thresholds
have been fixed programmed in the electronic control
device. If the heat requirement at level SMALL is so
low that the cooling water temperature reaches 85°C
(185°F), the device goes into control interval. This is
followed by the fan continuing to run for about 130
sec. The signal lamp will stay lit during the control
interval and also the waterpump continues to run.
If the heater does not ignite within 90 seconds after
fuel pumping has started, the start procedure must be
repeated. If the heater once again fails to ignite after
90 seconds a fault shut down is effected.
It is possible to override a fault shut-down by briefly
switching the heater off and then on again.
When an emergency stop has to be performed:
• Switch off the preheater at the control element
• Remove the fuse or disconnect the heater from the
battery
Safety procedure before starting after a
longer period of standstill
• Check whether the fuse is in its place and / or the
wiring is connected to the battery.
• Check if all parts are firmly fixed.
• Check the fuel system visualy on leaks.
Preheater altitude capability
• Up to 1,500 meters:
no restrictions
• Above 1,500 meters:
Operation possible for short periods
Continuous operation NOT possible
Do not change the setting of button (3).
(1)
(2)
(3)
(4)
Before performing any maintenance
jobs always switch off the preheater and
remove the fuse or disconnect the heater
from the battery.
Do not repeat this more than twice in
succesion!
