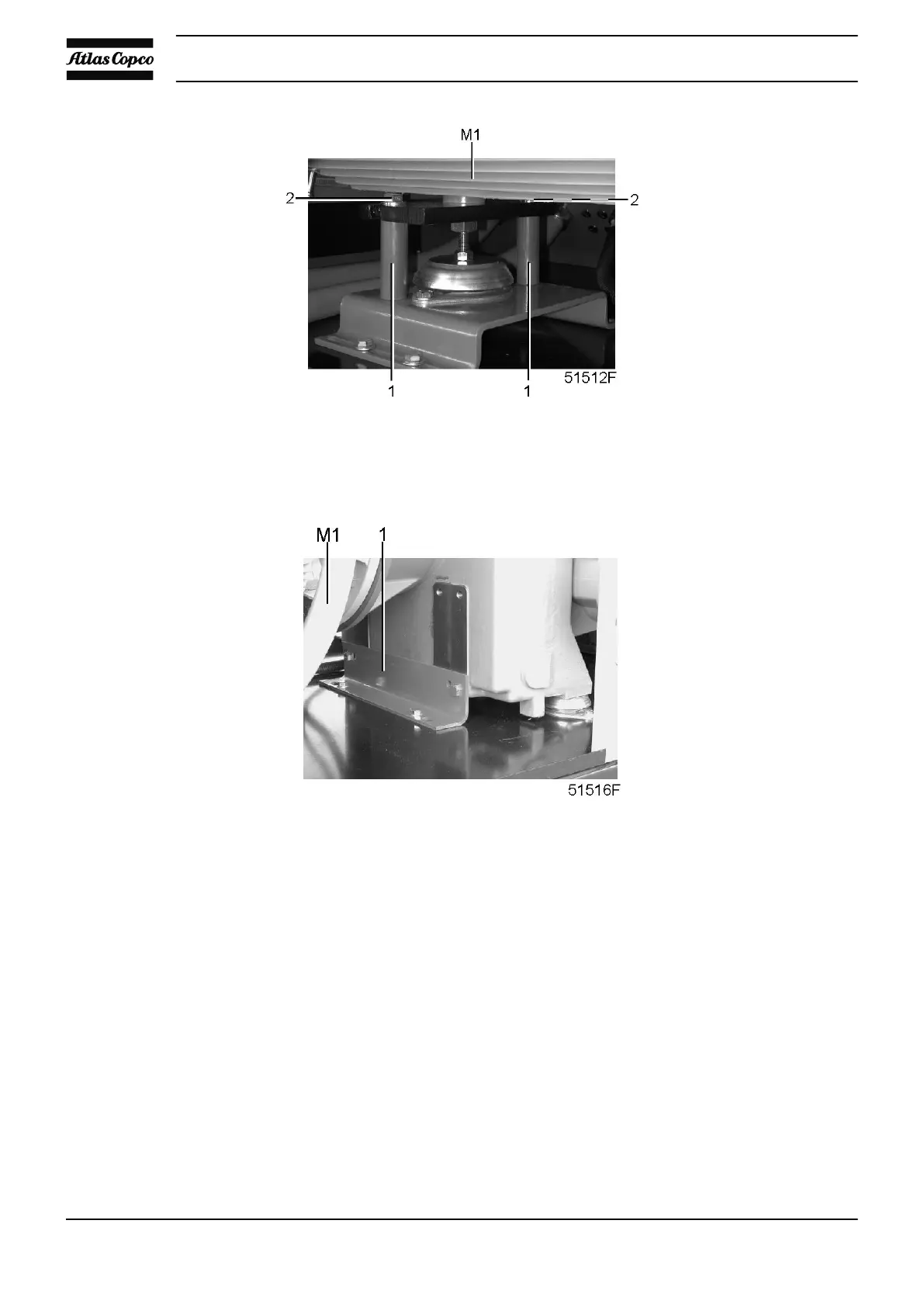

Transport fixtures on the motor side in ZR/ZT 110 up to ZR/ZT 275
On the motor side, the dampers are secured by means of bolts/spacers. Remove the bolts and spacers (1 and
2).
Transport fixtures on the gear casing side in ZR/ZT 110 up to ZR/ZT 275
On ZR/ZT 110 up to ZR/ZT 275, a transport support (1) is fitted to the gear casing. Remove the support.
