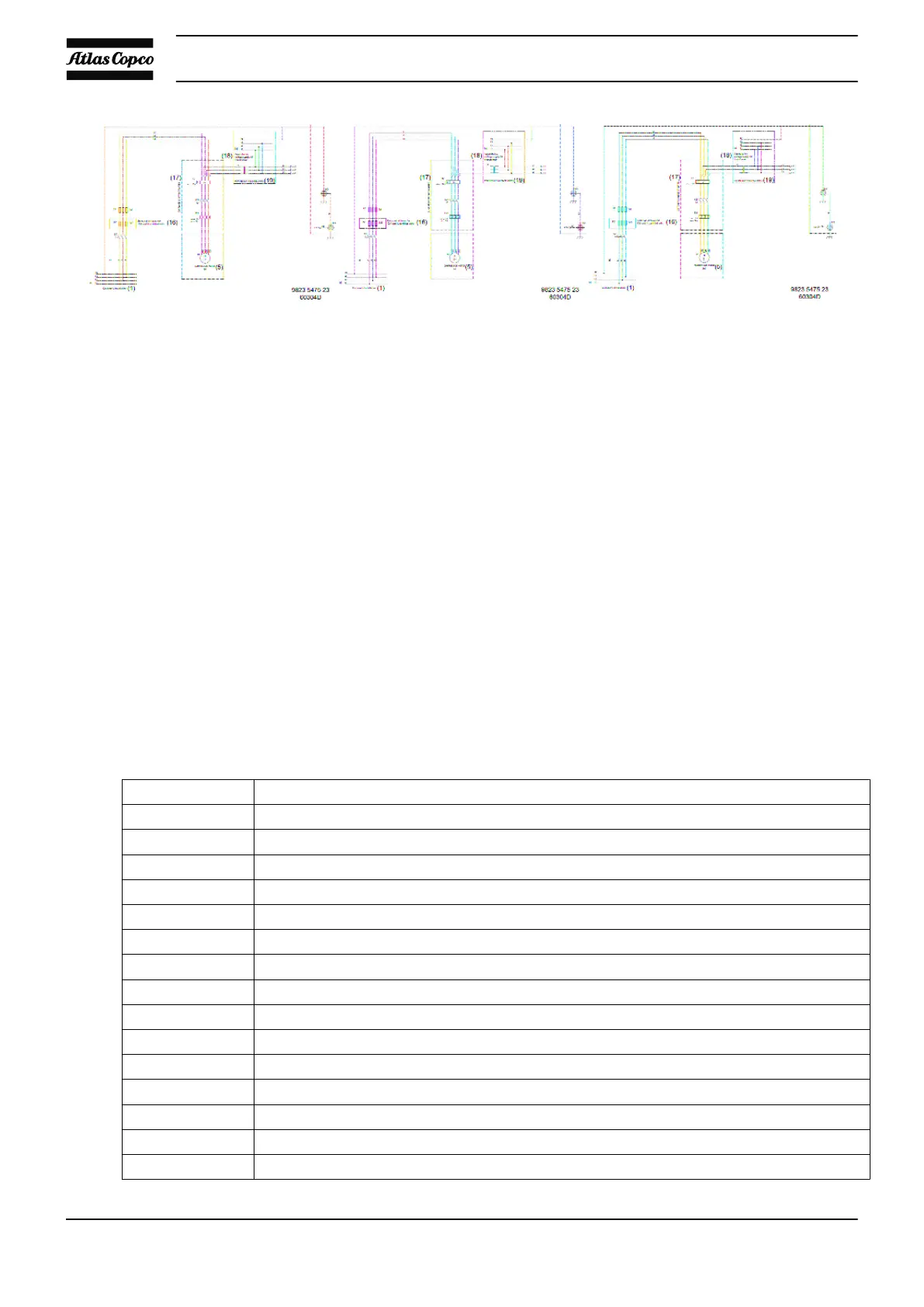

Electric connections for compressors without a starter (Model year 2014)
Text on figures
Reference Text on figure
(1) Customer’s installation
(2) K21, K23 larger than or equal to 56 with 6 type “2” fuses
(3) K21, K23 larger than or equal to 56 with 3 type “1” fuses
(4) K21, K23 smaller than 56 with 3 type “2” fuses
(5) Compressor motor
(6) Fan motor, dryer, not for ZR compressors
(7) Fan motor, not for ZR compressors
(8) Fan motor, only for units without compressor motor
(9) To be installed by the customer
(10) Dryer heater
(11) Connection only to be made for CSA/UL
(12) Fan motor in motor hood of ZR/ZT without a motor
(13) Wound anti-clockwise low-pressure side
(14) Wound anti-clockwise high-pressure side
(15) Main motor
