Control panel

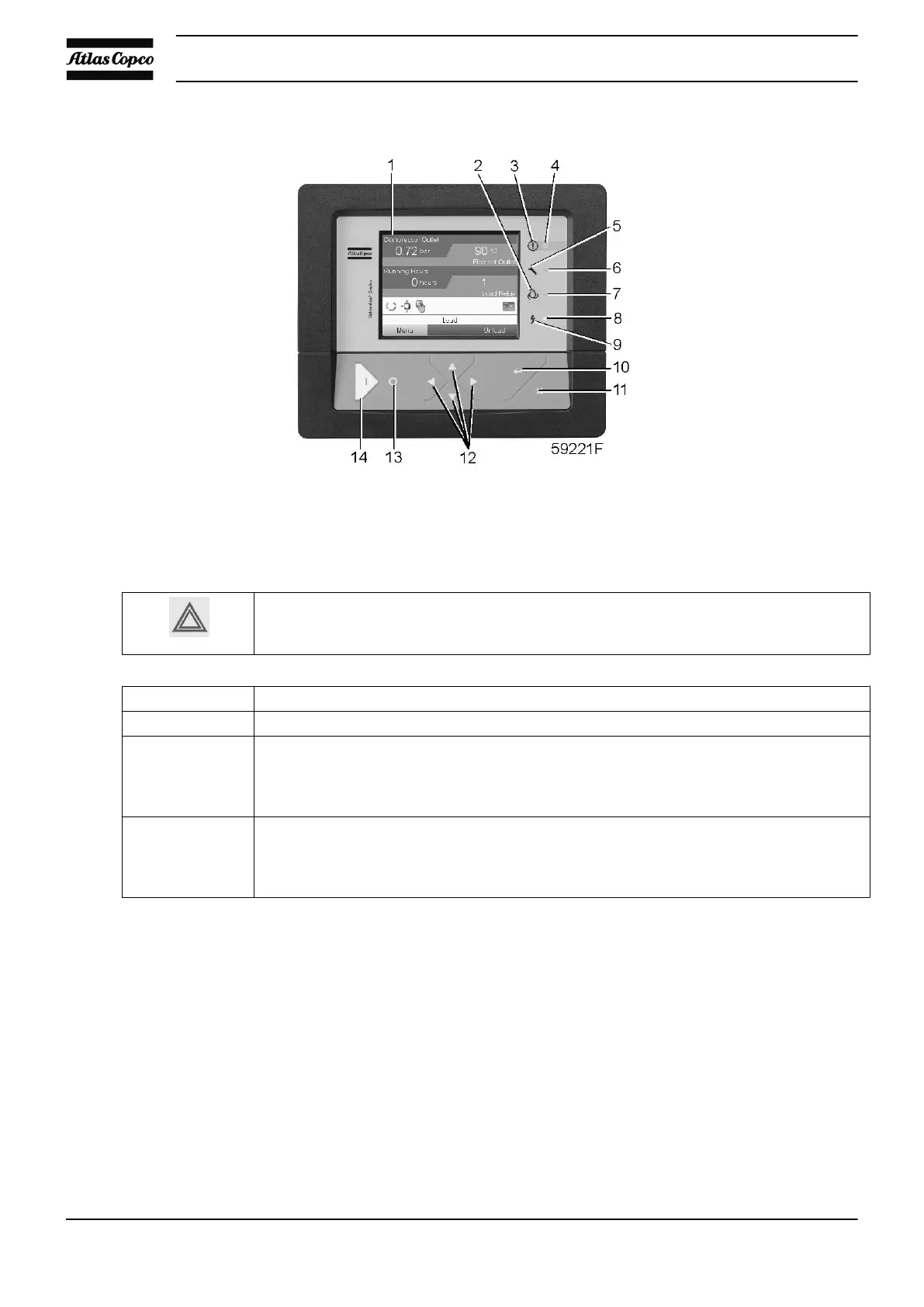

Control panel of Elektronikon GraphicPlus controller
Procedure
The operator must apply all relevant safety precautions.
When automatic operation LED (7) is alight, starting and stopping of the motor is
automatically controlled: when the motor is stopped, it may restart automatically.
Step Action
1 Check the readings on display (1).
2 When reaching the preset unloading pressure, shown on display (1), the compressor will
start running unloaded. From now on, the electronic control module will calculate the
optimum moment to stop and restart the compressor motor automatically, depending on
the maximum permissible number of motor starts and on the air consumption.
3 To unload the compressor manually, select Unload on the display using the cursor keys
and press the Enter key.
To put the compressor back into automatic operation, select Load on the display using
the cursor keys and press the Enter key.
Instruction book
272 2920 1815 04
