Instruction book
2920 1472 03 32
(2)
(3)
(4)
(1)
9820 3718 00/2
52654D

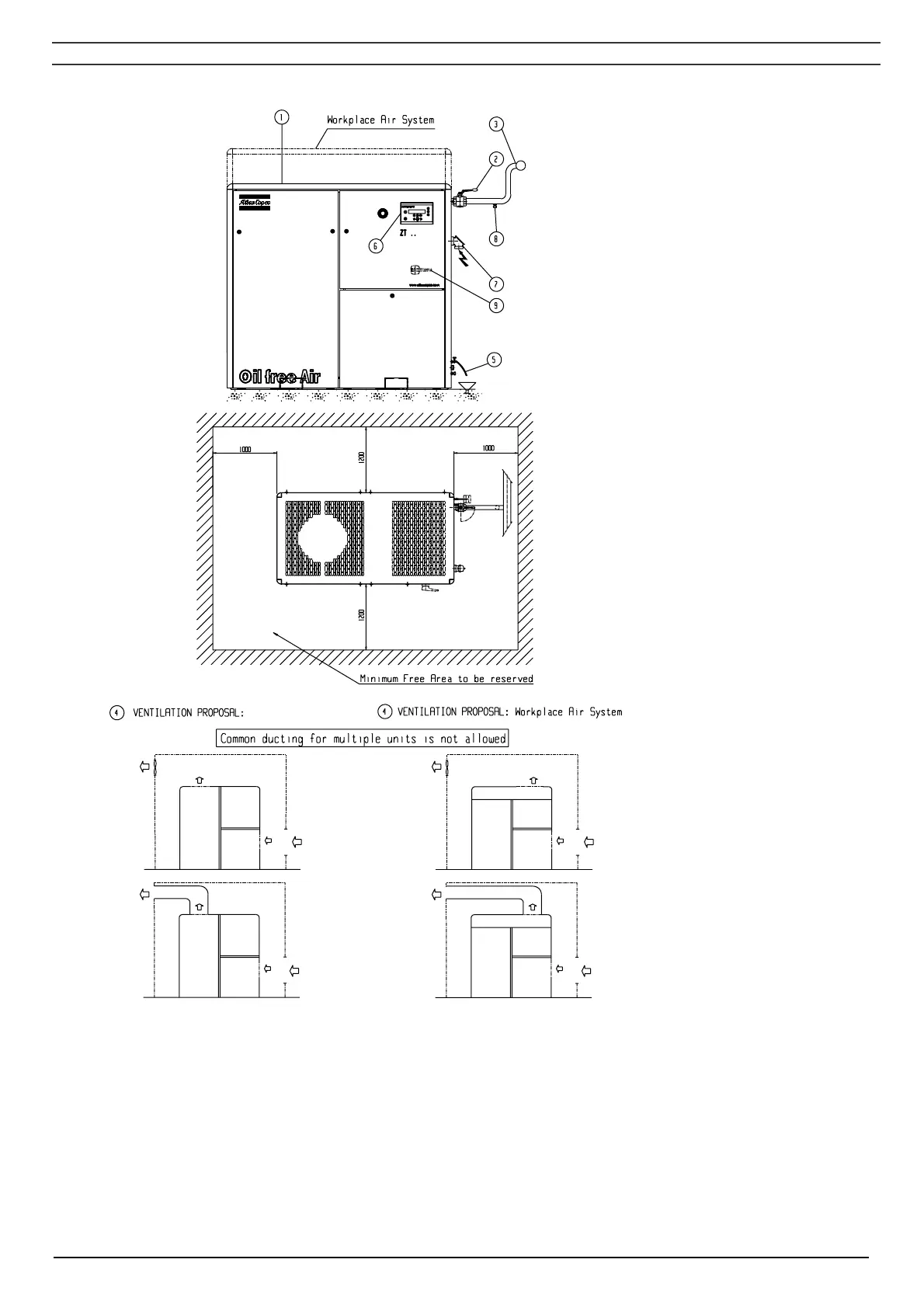

Text on figure 2.6
(1) Common ducting for multiple units is not allowed
(2) Minimum free area
(3) Ventilation proposal
(4) Ventilation proposal for WorkPlace Air System
Fig. 2.6 Installation proposal, ZT
