Instruction book
2920 1472 03 6
Ca Aftercooler
Ci Intercooler
Co Oil cooler
Eh High-pressure compressor element
FC Oil filler plug
FN Fan
M1 Drive motor
M2 Fan motor
OF Oil filter
SG Oil level sight-glass
SVl Low-pressure safety valve
S3 Emergency stop button
1 Elektronikon regulator

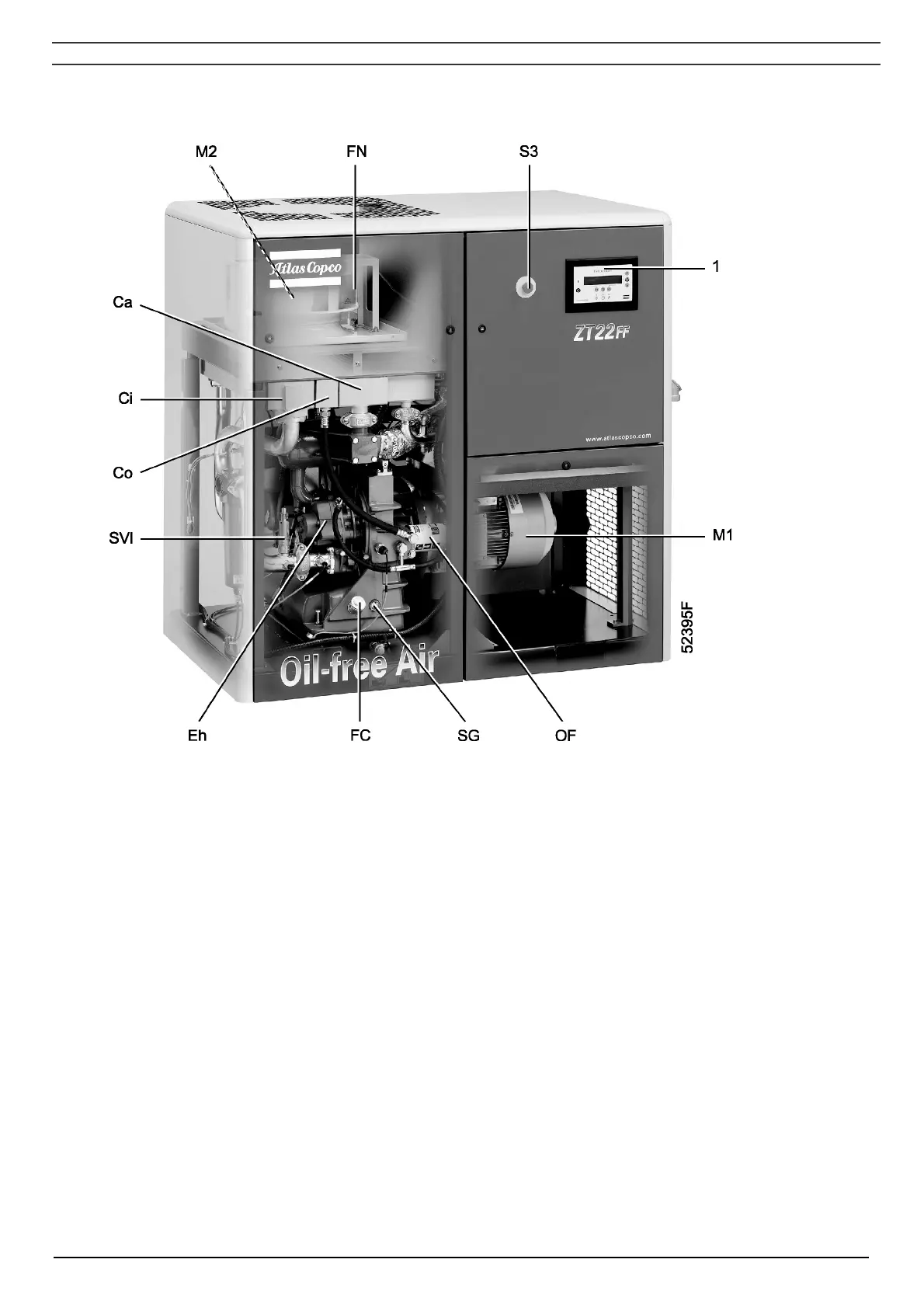

Fig. 1.2 Front view

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Atlas Copco ZR Series and is the answer not in the manual?

Atlas Copco ZR Series Specifications

General IconGeneral
TypeOil-free rotary screw compressor
Cooling SystemAir or water cooled
Applicationfood and beverage, pharmaceutical
DriveDirect drive
CertificationsISO 8573-1 Class 0
Control SystemElektronikon® control system
