Atlas Copco ZR45 User Manual

Instruction book
2920 1472 03 38

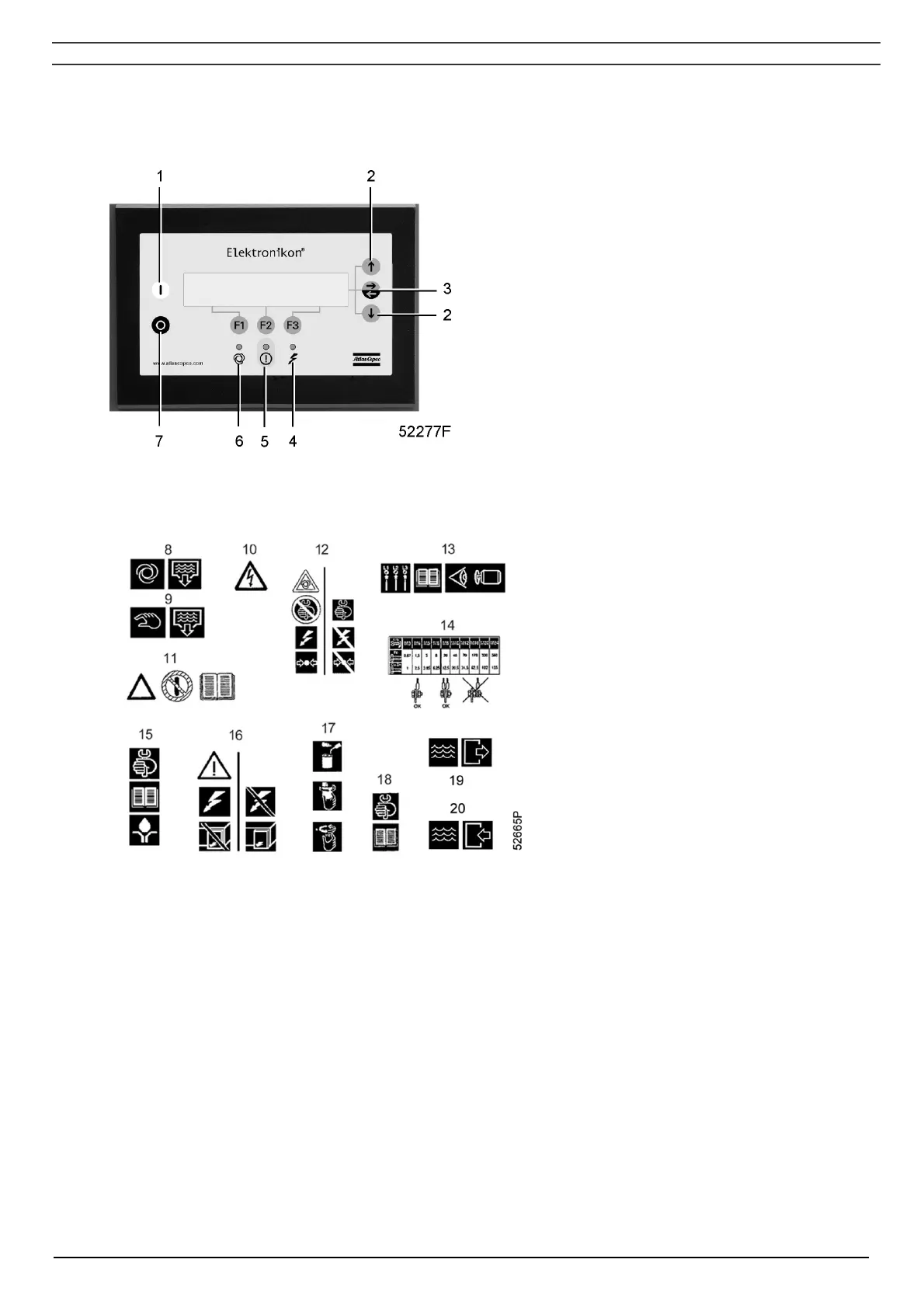

2.4 Pictographs (Figs. 2.9 and 2.10)
Fig. 2.9 Pictographs on control panel
Fig. 2.10 Pictographs at other locations
Reference Description
1 Start
2 Scroll keys
3 Tabulator key
4 Voltage on
5 Alarm
6 Automatic operation
7 Stop
8 Automatic condensate outlets
9 Manual condensate outlets
10 Warning: under tension
11 Read Instruction book before starting the compressor
12 Switch off the voltage and depressurize the compressor before maintenance or repair
13 Before connecting the compressor electrically, consult the Instruction book for the motor
rotation direction

Atlas Copco ZR45 Specifications

General

Model	ZR45
Type	Oil-free rotary screw compressor
Motor Power	45 kW
Weight	1480 kg
Nominal motor power	45 kW
Dimensions (LxWxH)	1800 x 1700 mm
