Instruction Manual - RIV938
OIL (FORCE) PRESSURE REGULATION SETTINGS
M3 / #4-40 - White
M3.5 / #6-32 - White
M4 / #8-32 - Yellow
M5 / #10-32 - Yellow
M6 / 1/4-20 - Orange
M8 / 5/16-18 - Orange
M10 / 3/8-16 - Orange
Note: These settings are general guidelines to the operator.
Inserts are not uniform as hardness and therefore some
modifications may be necessary (+ or -).
WARNING!!!
Pressure (force) must
always be regulated as
per maximum thickenss

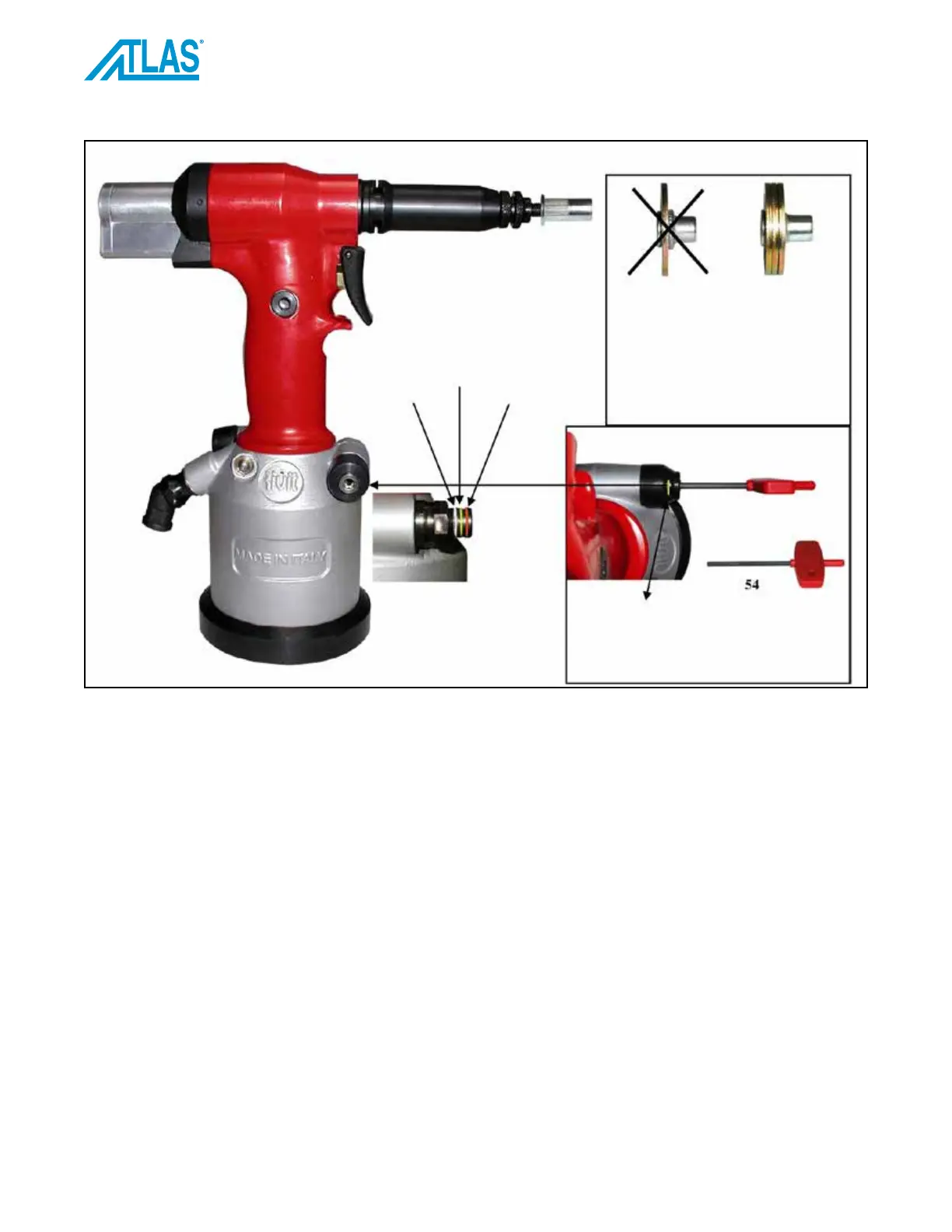

When screwing and unscrewing,
you will see three rings
(white, yellow, and orange).
White
Yellow
Orange
IMPORTANT
Installation force increases when turining to
the right. Installation force decreases when
turining to the left.
WARNING
When the pressure (force) adjustment screw
is entirely screwed, unscrewing can be done
at a pressure not less than 6.5 bar (atm).
