8 PennEngineering • www.pemnet.com
Instruction Manual - RIV938

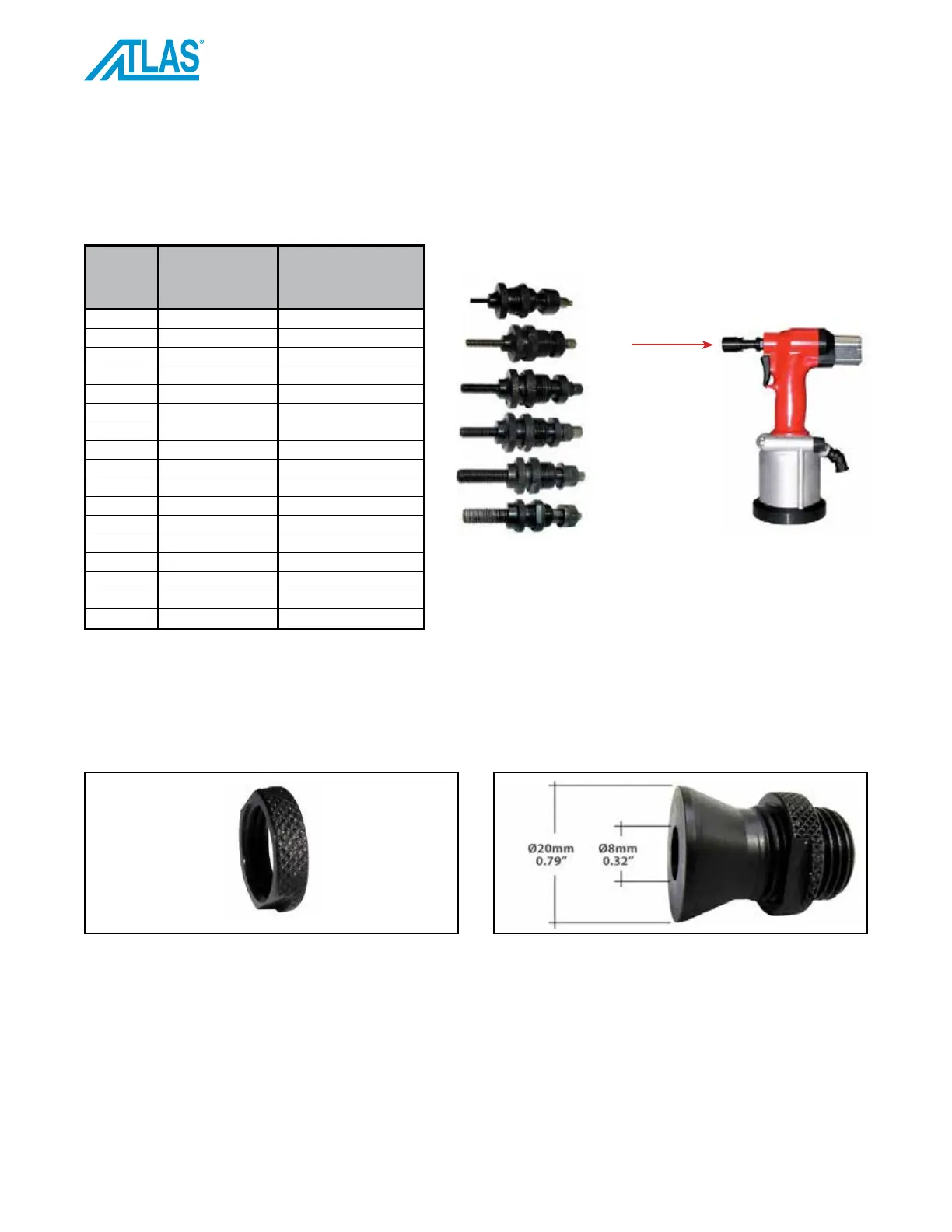

OPTIONAL TOOLING
For Blind Threaded Insert Installation.
Nose assembly
screws into here
Insert Nose Assembly
HEAD RING NUT
Can be ordered separately. Part number 0327700.
SPECIAL HEAD
Head and holes can be ordered in different
diameters. Part number 4281000.
Thread
Part No. For Part No. For
Size
Complete Insert Replacement
Nose Assembly SHCS / Mandrel
(1)
#4-40 4326700
MC-91251A078 (50/box)
#6-32 3755100 IN-14328 (100/box)
#8-32 3755500 IN-03190 (100/box)
#10-24 — IN-08823 (100/box)
#10-32 3755900 IN-07085 (100/box)
1/4-20 3756100 IN-05336 (100/box)
1/4-28 — IN-08057 (100/box)
5/16-18 3756300 IN-04153 (100/box)
5/16-24 — IN-10834 (100/box)
3/8-16 3756700 IN-15776 (100/box)
3/8-24 — IN-16488 (50/box)
M3 3441100 IN-06219 (200/box)
M4 3441200 IN-03023 (200/box)
M5 3441300 IN-03038 (200/box)
M6 3441400 IN-13128 (200/box)
M8 3441500 IN-21070 (100/box)
M10 3441600 IN-03088 (100/box)
NOSE ASSEMBLY PART NUMBERS
(1) Replacement mandrels sold in box quantities shown above.
