Atlona AT-UHD-EX-100CEA-KIT User Manual

3
atlona.com
Toll free: 1-877-536-3976
Local: 1-408-962-0515
Introduction
Pass-through support of 4K (UHD), 2560x2048, IR, RS-232, bidirectional Ethernet, and lossy/lossless
audio signals up to 328ft (100m). The 100CEA extenders provide an affordable, high quality,
solution for your audio and video needs.
Package Contents
Features
• 1 x AT-UHD-EX-100CEA-TX
• 1 x AT-UHD-EX-100CEA-RX
• 1 x 48V DC power supply
• 3 x Female captive screw connector
2 pin (x1): power, 5 pin (x1): RS-232/IR, and 6 pin (x1): IR/RS-232)
• 2 x Pair of wall/table mount ears
• 1 x IR emitter (AT-IR-CS-TX)
• 1 x User manual
• Extends IR, RS-232, Ethernet, and audio/video content up to 328ft over a single category cable
• Optical audio ports, for transmitting audio from the receiver back to an AVR or zone amplifier
• Supports resolutions up to 4K (UHD) 60Hz @ chroma sub-sampling 4:2:0 8-bit
• IR ports for use with IR remote controls and 3rd party IR controllers
• Bidirectional Ethernet pass through
• Provides PoE (Power over Ethernet)
• Multichannel audio pass through up to Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, and
DTS:X
• Full 3D pass-through
• HDCP 2.2 compliant
• Field updatable firmware
Before You Start
• When installing the extenders DO NOT:
Cover the vents
Install into a sealed wall
Install into an area without adequate air ventilation

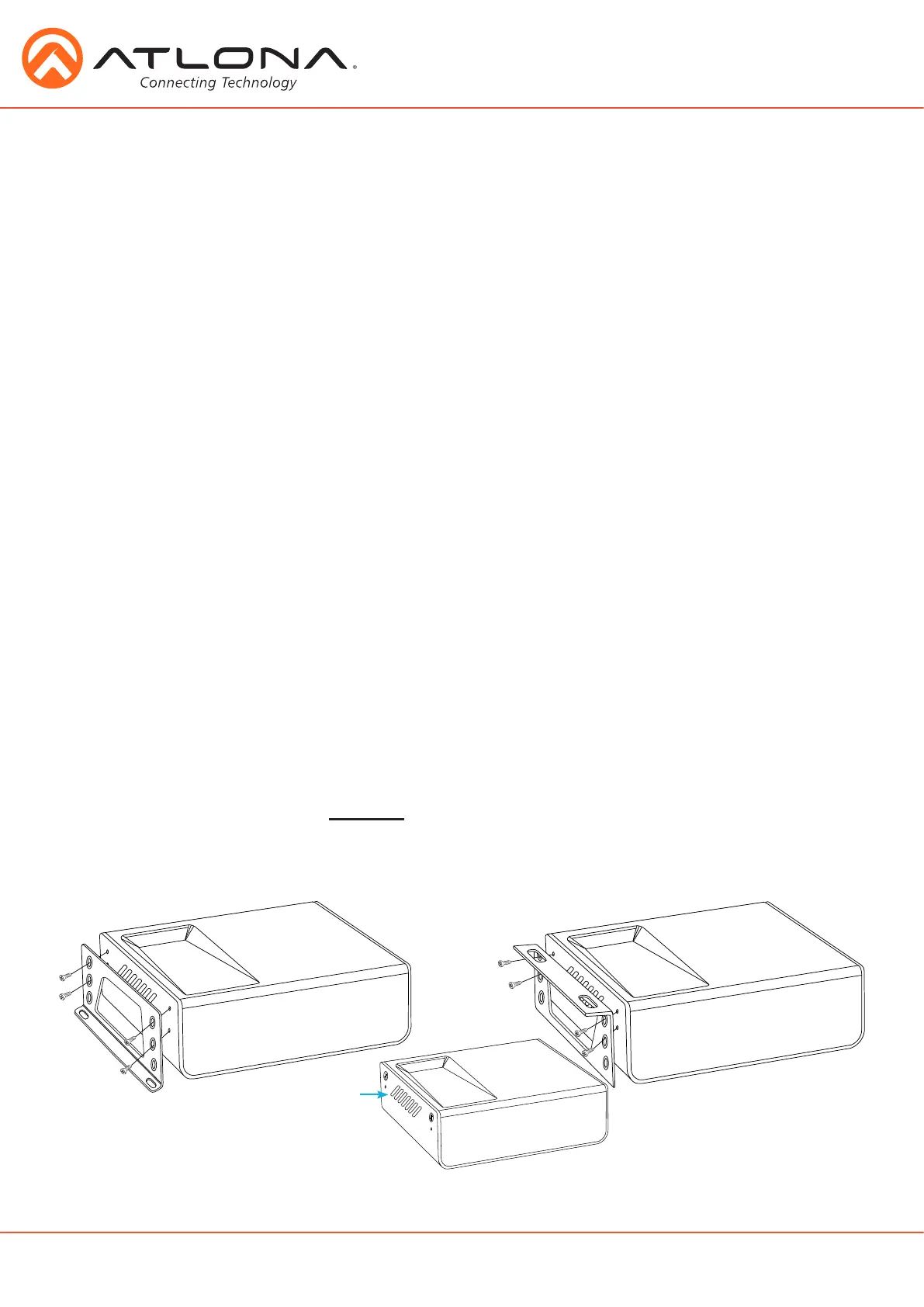

Do not
cover
venting!
Insert the screws to these
four holes when mounting to
a wall.
*Remove the side screws from the case and use for bracket installation
Insert the screws to these four
holes when mounting to a
table.

Atlona AT-UHD-EX-100CEA-KIT Specifications

General

HDCP	Yes
Type	AV transmitter & receiver
Color depth	12 bit
Audio system	Multichannel
Certification	CE, FCC, cULus, RCM, CCC
Maximum resolution	4096 x 2160 pixels
Audio output channels	7.1 channels
Supported video modes	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Maximum transfer distance	100 m
Supported graphics resolutions	640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1360 x 768 (WXGA), 1376 x 768, 1400 x 1050 (SXGA+), 1440 x 900, 1600 x 1200 (UXGA), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1200 (WUXGA), 2048 x 1536 (QXGA), 2560 x 1600 (WQXGA), 2560 x 2048
RJ-45 input ports	2
RJ-45 output ports	1
USB connector type	Mini-USB B
Connectivity technology	Wired
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	20 - 90 %
Input current	0.83 A
AC input voltage	100 - 240 V
Operating voltage	48 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	20.61 W
Sustainability certificates	RoHS

Weight and Dimensions

Receiver weight	410 g
Receiver dimensions (WxDxH)	146 x 89 x 26 mm
