Page #5 background imageLoading...
Page #5 background image
5
atlona.com
Toll free: 1-877-536-3976
Local: 1-408-962-0515
OUT
-
+
LAN
HDMI IN
DC 48V
HDBaseT OUT
OPTICAL
FW
LINK
POWER
AT-UHD-EX-100CEA-TX
RS-232
RX
TX
RX
TX
IR

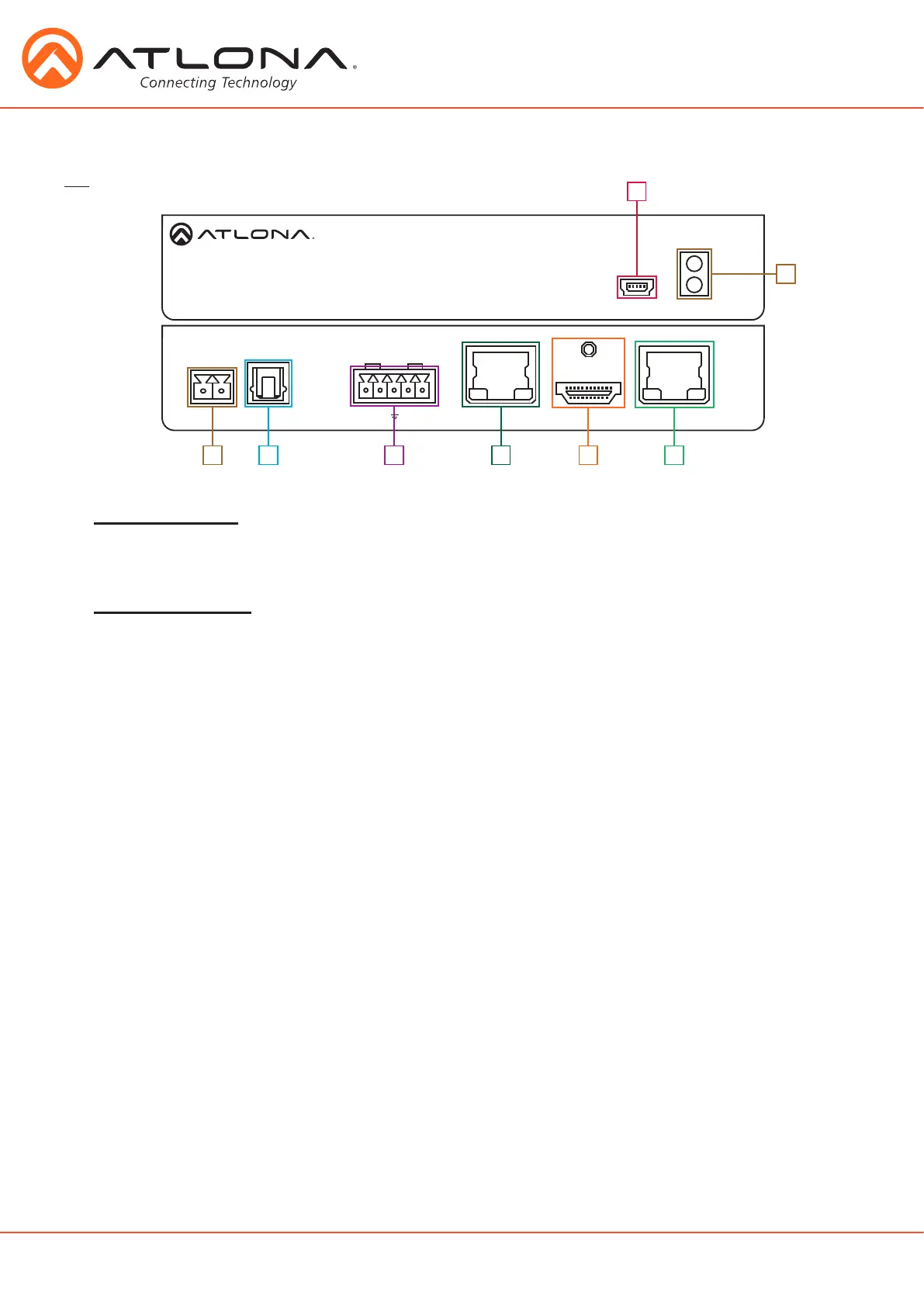

Panel Description
TX
1. Firmware - Use a Mini-B USB to USB A cable to connect to a Windows computers for updating
2. Yellow Link LED: Signal indicator for the HDBaseT OUT port
Solid - Good signal from the HDBaseT port
Blinking - Category cable is disconnected or not receiving signals
No Light - No signal is being received from the HDBaseT port
Green Power LED: Power indicator
Solid - Plugged in and receiving power
Blinking - Power is intermittent or there is a problem with the cable
No Light - No power is passing from the wall outlet to the transmitter (check the cable or outlet)
3. DC 48V - Connect included captive screw power adapter here
4. Optical - Connect to an AVR or zone amplifier
5. RS-232 - Bidirectional RS-232, send signal to or from a control system, PC, source, or display
IR - Connect IR emitter (included) or 3rd party control box to this port
6. HDBaseT OUT - Connect a category cable from here to an AT-UHD-EX-100CEA-RX (RX included in
KIT)
7. HDMI IN - Connect HDMI or DVI (with adapter) source here
e.g. Media player, cable box, HDDA series, H2H series, UHD-H2H series, UHD-SW series, etc
8. LAN - Connect to a router for Ethernet and TCP/IP pass-through
1
2
76 853 4

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Atlona AT-UHD-EX-100CEA-KIT and is the answer not in the manual?

Atlona AT-UHD-EX-100CEA-KIT Specifications

General IconGeneral
HDCPYes
TypeAV transmitter & receiver
Color depth12 bit
Audio systemMultichannel
CertificationCE, FCC, cULus, RCM, CCC
Maximum resolution4096 x 2160 pixels
Audio output channels7.1 channels
Supported video modes480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Maximum transfer distance100 m
Supported graphics resolutions640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1360 x 768 (WXGA), 1376 x 768, 1400 x 1050 (SXGA+), 1440 x 900, 1600 x 1200 (UXGA), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1200 (WUXGA), 2048 x 1536 (QXGA), 2560 x 1600 (WQXGA), 2560 x 2048
RJ-45 input ports2
RJ-45 output ports1
USB connector typeMini-USB B
Connectivity technologyWired
Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)0 - 50 °C
Operating relative humidity (H-H)20 - 90 %
Input current0.83 A
AC input voltage100 - 240 V
Operating voltage48 V
AC input frequency50 - 60 Hz
Power consumption (typical)20.61 W
Sustainability certificatesRoHS
Weight and Dimensions IconWeight and Dimensions
Receiver weight410 g
Receiver dimensions (WxDxH)146 x 89 x 26 mm
