Category Cable

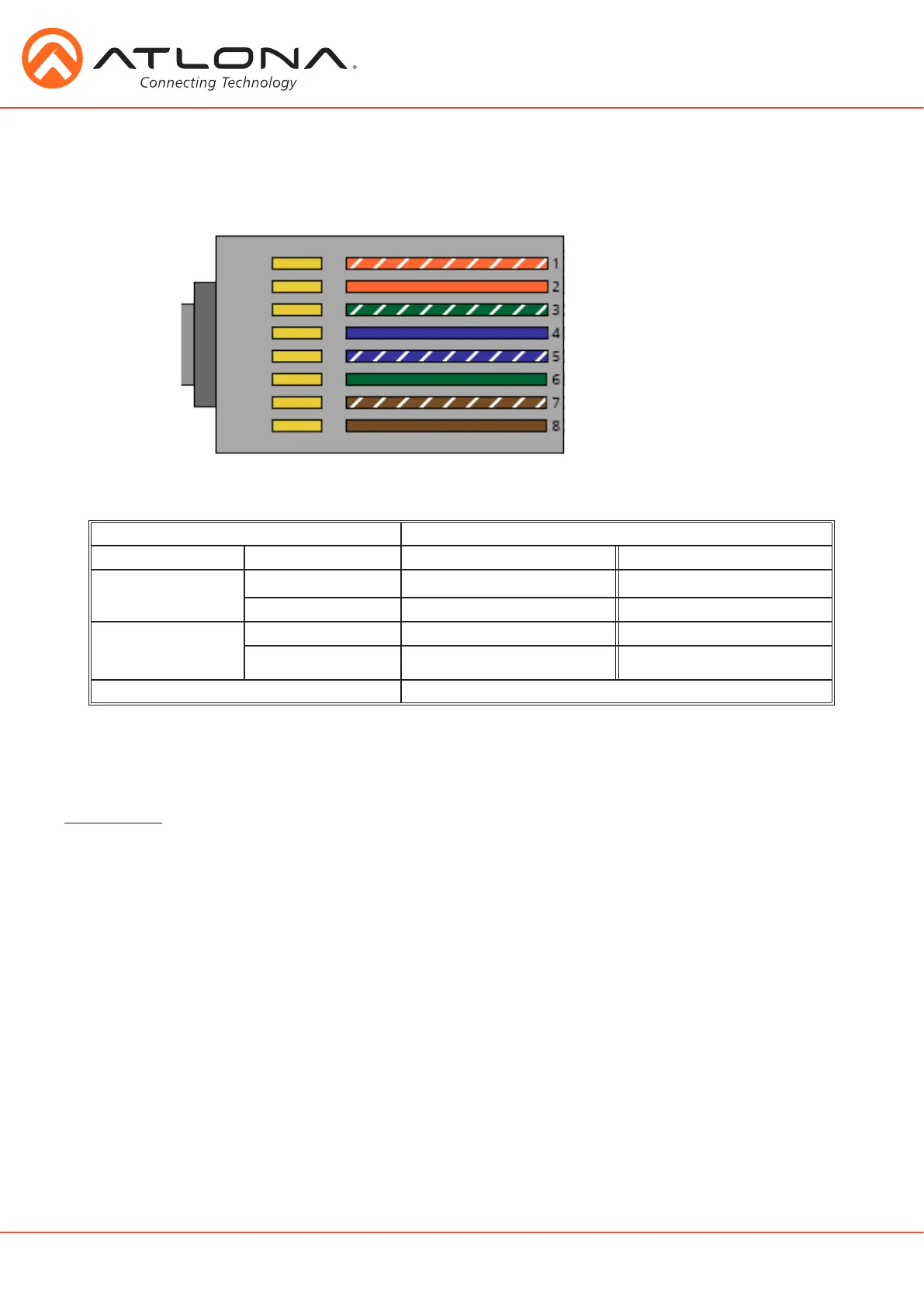

For the category cables used in the installation of these products, please be sure to use a 568B
termination as pictured below:
Connector type and size is very important to ensure the extenders work correctly. Please match the
cable type with the correct RJ45 connector.
CAT5e cables should use only CAT5e RJ45 connectors
CAT6 cables should use only CAT6 connectors
CAT6a cables should use only CAT6a connectors
CAT7 cables should use only CAT7 connectors
Using the wrong size connectors may result in interference causing loss of signal.
Important! “EZ RJ45 connectors” are not recommended with HDBaseT extenders. Doing so may result in interference
with audio and video transmission.
Use the table below to verify the best category cable for the installation.
Important! 4K (UHD) signals are sensitive to cable quality and installation technique. It is recommended to
use CAT6a/7 solid core cables for best results.
Note: For cable distances see the specifications on page 11
Performance Rating Type of LAN cable
Wiring Shielding CAT5e/6 CAT6a/7
Solid
Shielded (STP/FTP)
*** ****
Unshielded (UTP) ** N/A
Stranded - Patch
cable
(Not recommended)
Unshielded (UTP) * N/A
Shielded (STP/FTP)
* N/A
Termination Please use EIA/TIA-568-B termination
1. White - Orange
2. Orange
3. White - Green
4. Blue
5. White - Blue
6. Green
7. White - Brown
8. Brown
Connector

Atlona AT-UHD-EX-100CEA-KIT Specifications

General

HDCP	Yes
Type	AV transmitter & receiver
Color depth	12 bit
Audio system	Multichannel
Certification	CE, FCC, cULus, RCM, CCC
Maximum resolution	4096 x 2160 pixels
Audio output channels	7.1 channels
Supported video modes	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Maximum transfer distance	100 m
Supported graphics resolutions	640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1360 x 768 (WXGA), 1376 x 768, 1400 x 1050 (SXGA+), 1440 x 900, 1600 x 1200 (UXGA), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1200 (WUXGA), 2048 x 1536 (QXGA), 2560 x 1600 (WQXGA), 2560 x 2048
RJ-45 input ports	2
RJ-45 output ports	1
USB connector type	Mini-USB B
Connectivity technology	Wired
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	20 - 90 %
Input current	0.83 A
AC input voltage	100 - 240 V
Operating voltage	48 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	20.61 W
Sustainability certificates	RoHS

Weight and Dimensions

Receiver weight	410 g
Receiver dimensions (WxDxH)	146 x 89 x 26 mm
