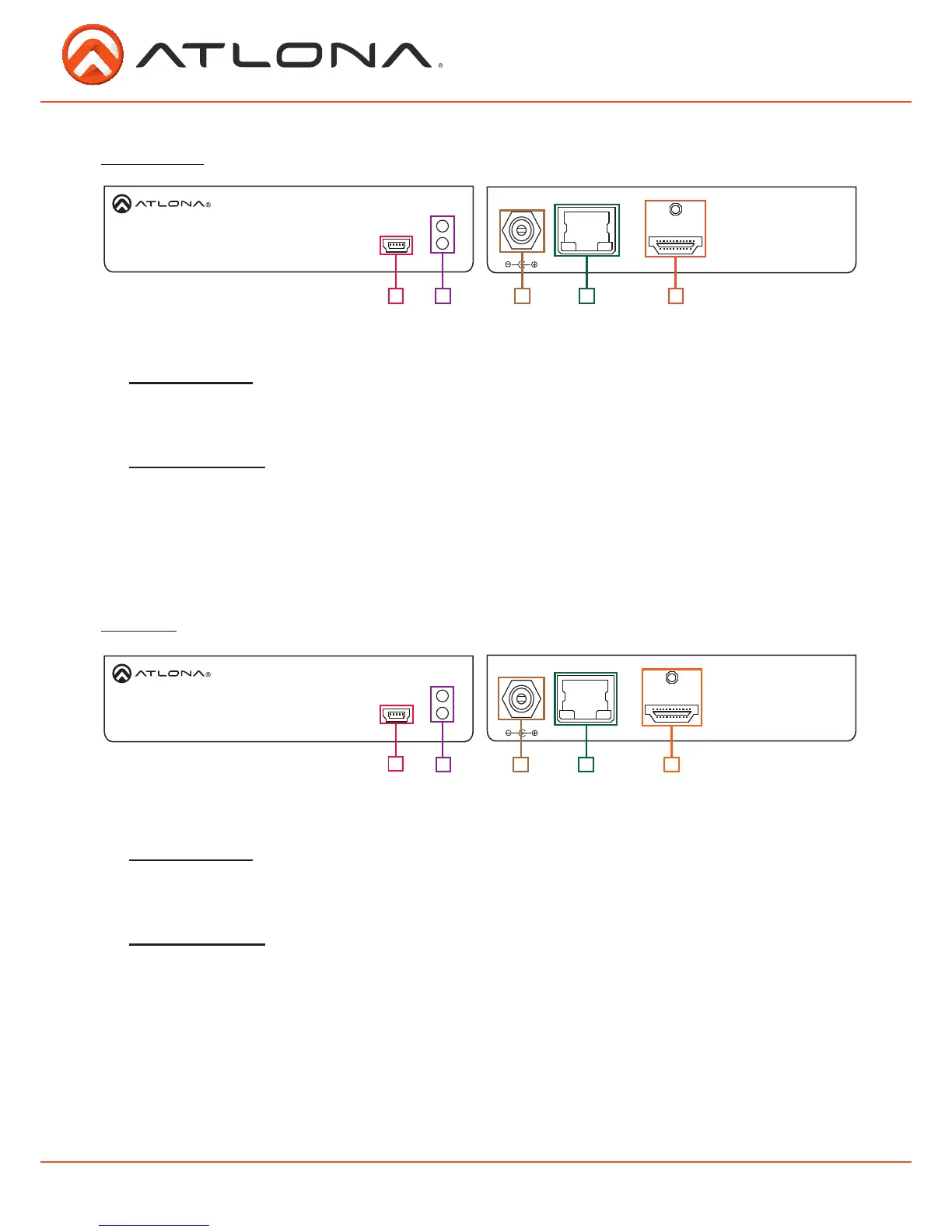

Panel Description
Transmitter
Receiver
1. Firmware Update Port: Use a Mini-B USB to USB A cable to connect to a Windows computer for
updating.
2. Yellow Link LED: Signal Indicator for the CAT5e/6/7 OUT port
Solid - Good signal from the CAT and HDMI ports
Blinking - HDMI is disconnected or not receiving signals
No Light - No signal is being received from the CAT port
Green Power LED: Power indicator. If plugged in light will remain solid. If LED starts blinking
power is intermittent or there is a problem with the cable. If the LED is off, no power is passing
from the wall outlet to the transmitter (check your outlet or the power cable).
3. Power Port: Connect included locking power adapter here
4. HDBaseT OUT Port: Connect a category cable from here to an AT-UHD-EX-70-2PS-RX (included)
5. HDMI IN Port: Connect HDMI or DVI (with adapter) source here
Ex. Blu-ray player, cable box, HDDA, H2H series, etc
1. Firmware Update Port: Use a Mini-B USB to USB A cable to connect to a Windows computer for
updating.
2. Yellow Link LED: Signal Indicator for the CAT5e/6/7 OUT port
Solid - Good signal from the CAT and HDMI ports
Blinking - HDMI is disconnected or not receiving signals
No Light - No signal is being received from the CAT port
Green Power LED: Power indicator. If plugged in light will remain solid. If the LED starts blinking
power is intermittent or there is a problem with the cable. If the LED is off, no power is passing
from the wall outlet to the receiver (check your outlet or the power cable).
3. Power Port: Connect included locking power adapter here
4. HDBaseT IN Port: Connect a category cable from here to an AT-UHD-EX-70-2PS-TX (included)
5. HDMI OUT Port: Connect HDMI or DVI (with adapter) display here
4
5
2 53
2 4
1
3
1
