Atomic Reactor 112 - Pro Rack Type Modelers or Preamps

11
Pro Rack Type Modelers or Preamps
RETURN
SEND - L
EFFECTS
LOOP
SEND -
R
MODEL REACTOR 112
Atomic Amplifiers LLC.
Orange CT.
FUSE
0101010101
!CAUTION!
RETURN
SEND - L
EFFECTS
LOOP
SEND - R
MODEL REACTOR 112
Atomic Amplifiers LLC.
Orange CT.
FUSE
0101010101
!CAUTION!
X

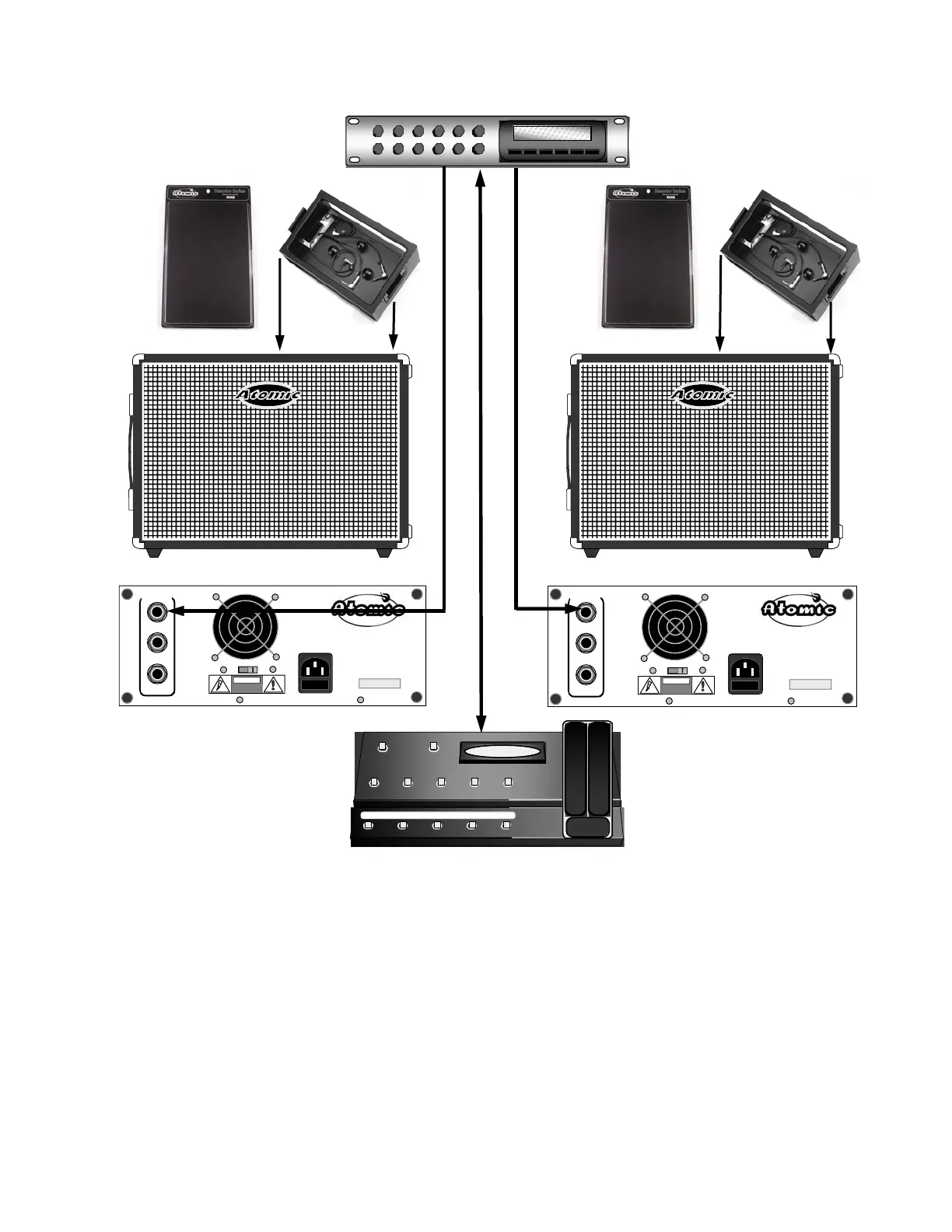

Using two Reactor
112s Install blank
templates onto the
DS-1 docking units.
(see page 10)
Y
Replace the DS-1’s back into
the docking bays located in the
top of the Reactors making
sure that the dock locks click
into position.
Z
Plug the Left and Right
outputs of your Pro-Rack
style modeler or preamp
into the pair of Reactor’s
RETURN inputs.
[
If using outboard effects
pedals or devices with your
modeler, connect them as
normal per the
manufacturer’s instructions
\
It is a good idea to
make sure the
output levels are
turned down on
your modeler.
]
If using outboard effects
pedals or devices with your
modeler, connect them as
normal per the manufacturer’s
instructions.
^
Turn the Reactors power switches to the
ON position (they should light up).
_
Bring up the levels on your modeler and
switch to some of your favorite presets.
Z
X
X
Y
Y
Z
[
